Premium Quality Sag Rod Supplier in Dubai, UAE

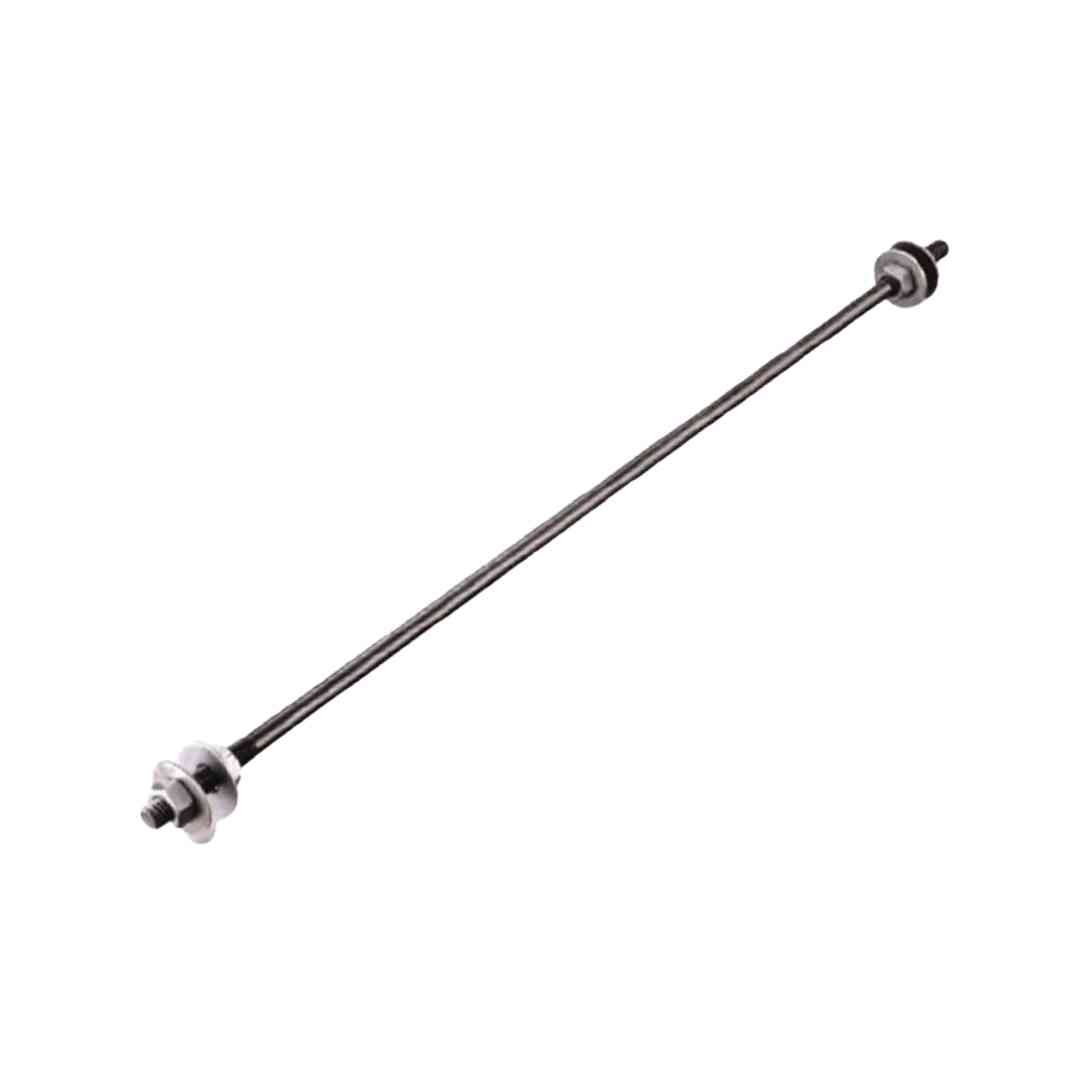

A sag rod is a round steel rod, threaded at both ends, fitted vertically between the purlins of a steel building roof or horizontally between wall girts. Its job is simple: purlins and girts are weak about their minor axis, and before the sheeting goes on they sag under their own weight. Sag rods carry that load up to the ridge or frame, keep every purlin straight and in line, and make sheeting installation faster because the holes actually line up. Unifastener Industries LLC manufactures sag rods to cut length at our Umm Al Quwain plant. PEB contractors send us the erection drawings; we deliver bundled, tagged rods that match them.

What we supply

• Diameters M12 to M24, mild steel or grade 8.8
• Cut lengths to drawing, threaded both ends (standard 50-75 mm thread length, or as specified)
• Straight rods, bent rods, and hooked ends for eave and ridge connections
• Hot dip galvanized as standard; plain or zinc plated on request
• Supplied with hex nuts and washers, two per end

Ordering from drawings
Send the purlin layout or the sag rod schedule from your PEB drawings. Rod length is measured between purlin web faces plus thread allowance, and getting that from the drawing avoids the classic site problem of rods 30 mm short across an entire roof. If no schedule exists, tell us purlin spacing, purlin depth and roof slope, and we will size them. Typical UAE practice runs one or two rows of sag rods per bay depending on span.

Standards:
– ASTM A307 (carbon steel rods, general purpose)
– ASTM A36 (structural quality steel)
– ASTM A193 (Grades B7, B16 for high strength applications)
– DIN 976 (threaded rods, used for sag rod applications)
– ISO 898-1 (mechanical properties of fasteners)

Grades:
– ASTM Grades: A36, A307, A193 B7, B16
– DIN / ISO Grades: 4.6, 5.6, 8.8

Material Options:
– Carbon steel
– Alloy steel
– Stainless steel (A2 / A4 grades for corrosion resistance)
– Galvanized steel

Diameter Range: M10 to M36 (metric) / 3/8″ to 1-1/2″ (inch)

Length Range: 500mm up to 6000mm (custom lengths available)

Thread Types:

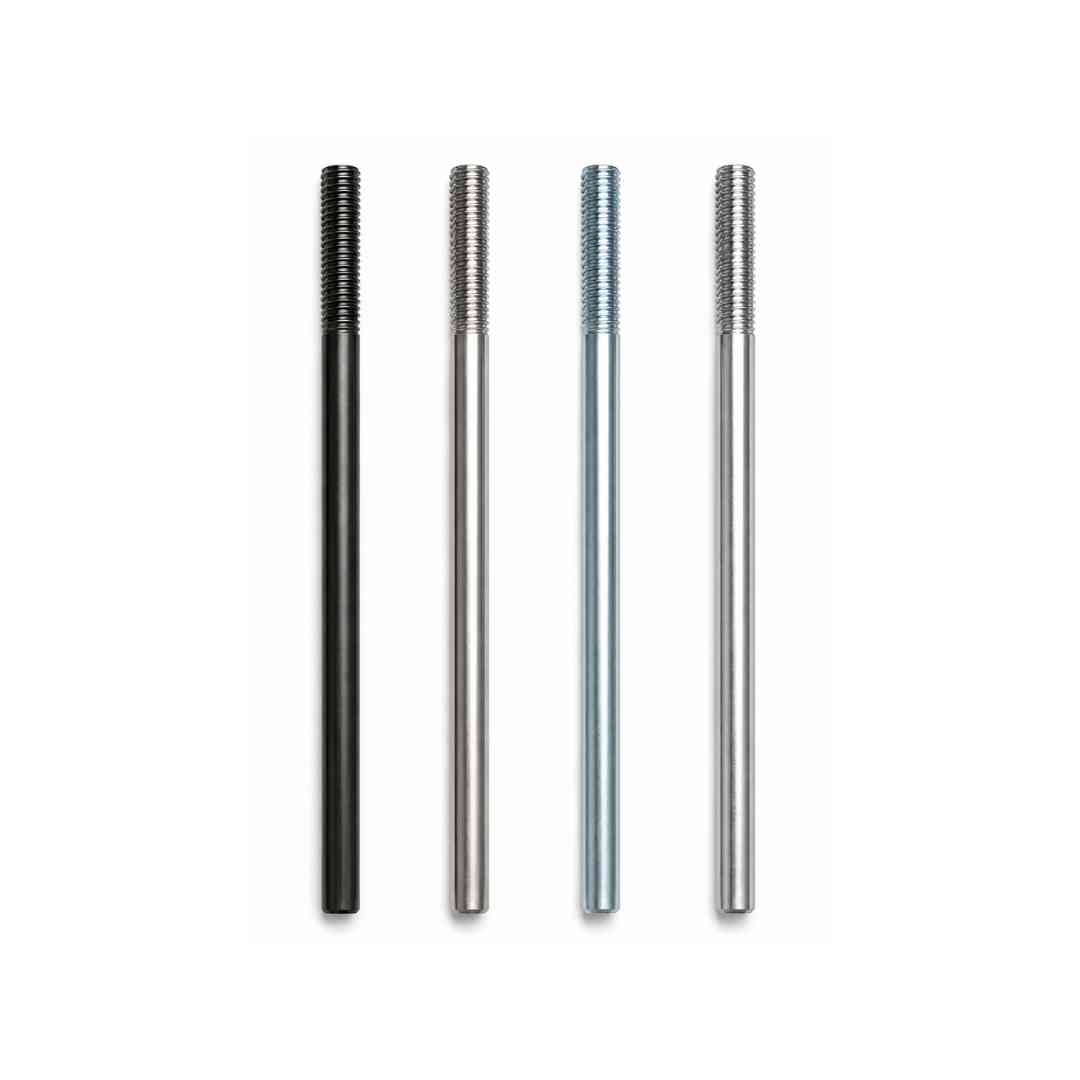

– Partially threaded (standard sag rods)
– Fully threaded (DIN 976 type rods)
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

End Types:
– Plain ends
– With forged / welded eye
– With clevis fittings

Coating Options:
– Plain (self-color)
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Black oxide
– Epoxy coated

Add-ons:
– Supplied with nuts and washers
– Clevises or turnbuckles for tension adjustment
– Available with MTC and third-party inspection if required

FAQ

Q: What do sag rods do in a steel building?
A: They hold purlins and girts straight against sagging about their weak axis, carrying that load to the ridge or main frame. Without them, purlins deflect before sheeting and hole alignment suffers.

Q: What diameter sag rod do I need?
A: M12 and M16 cover most UAE PEB roofs; M20-M24 appear on long spans and heavy girt runs. The PEB designer’s schedule governs; we cut to it.

Q: Can you supply bent or hooked sag rods?
A: Yes. Straight, bent and hook-ended rods are all standard production, including angled bends for roof slope at the ridge.

Q: How fast is delivery for cut-to-length rods?
A: Standard diameters in HDG typically ship within a few working days of drawing approval, bundled and tagged per bay.
