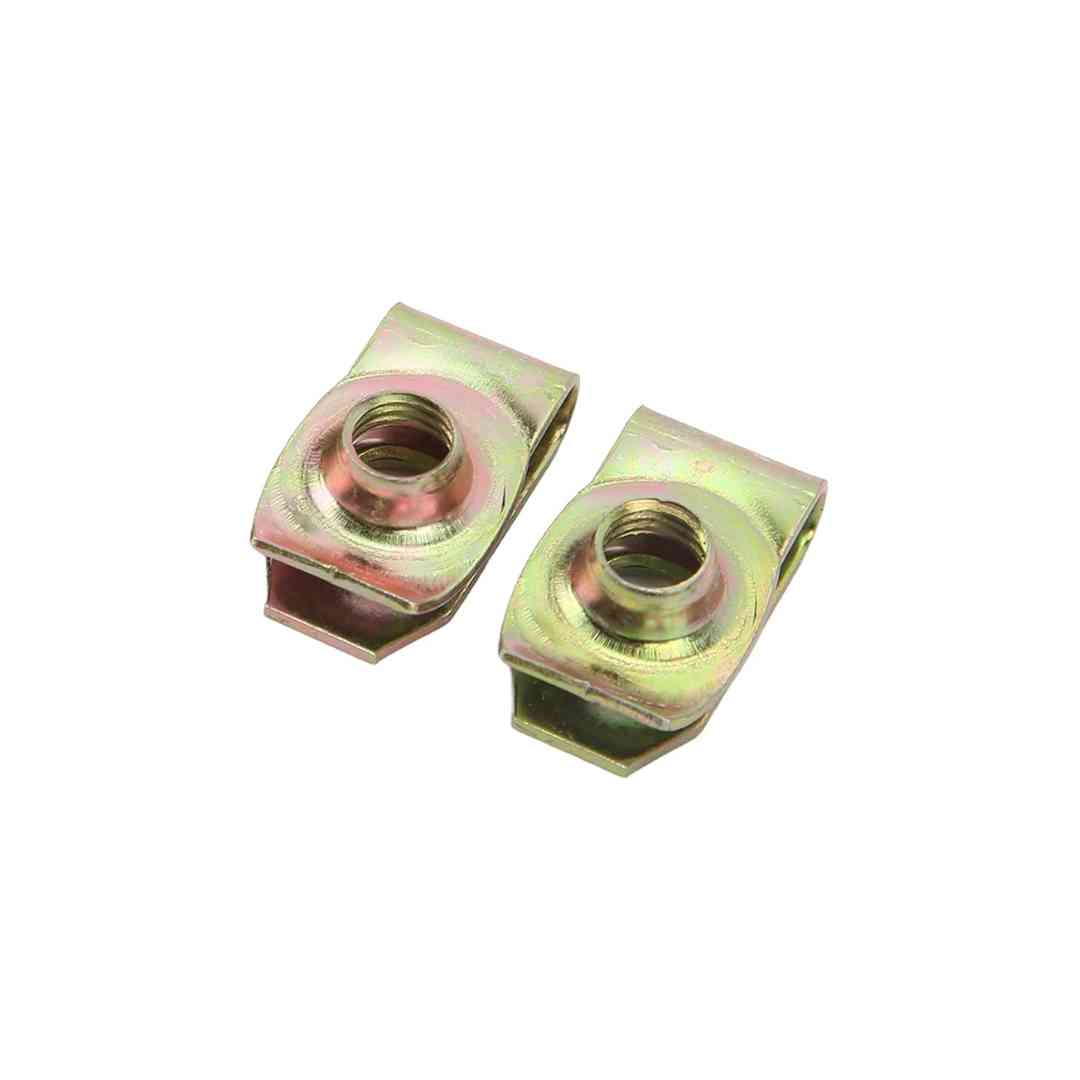

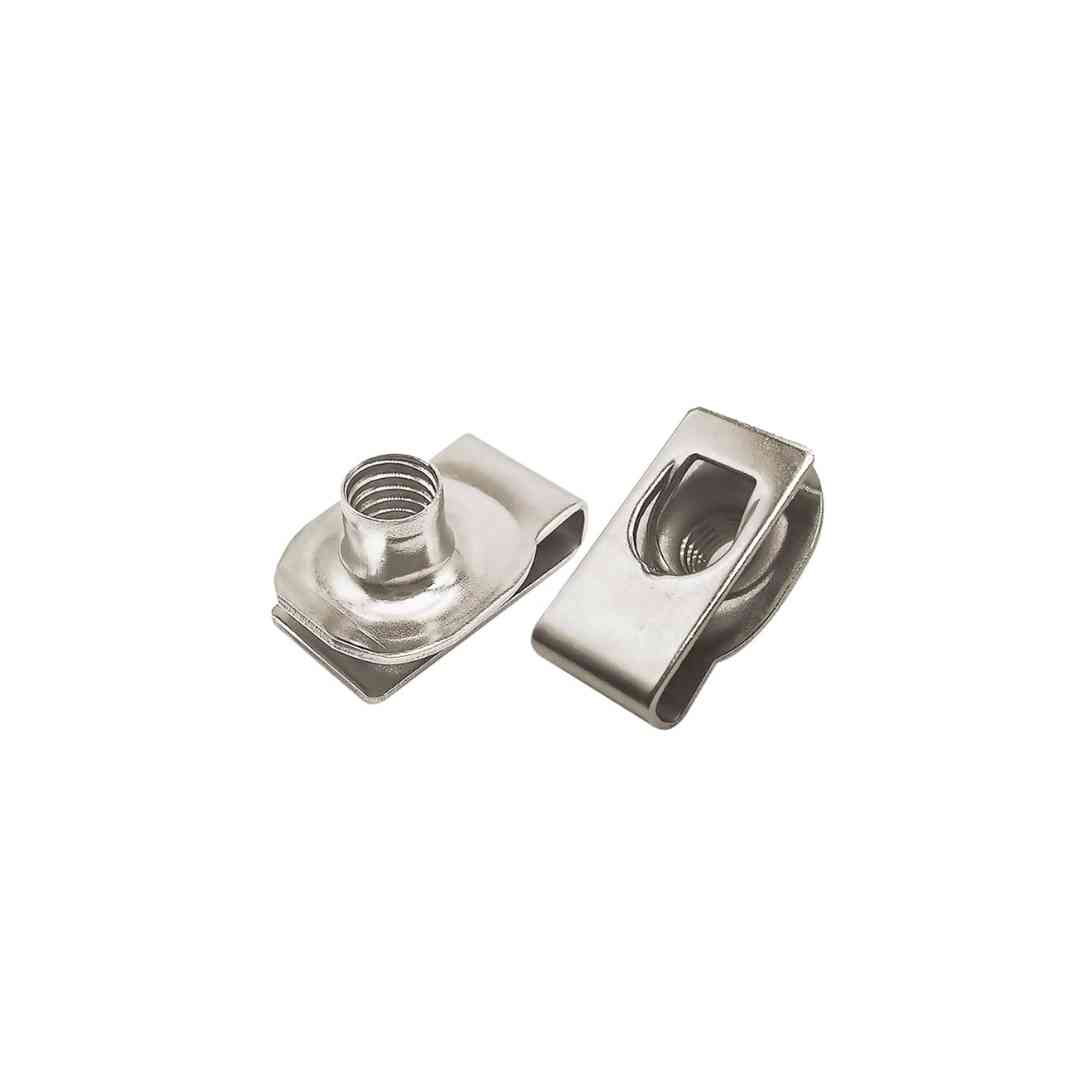

U Clip (Speed Nut)

U Clip (Speed Nut) fasteners are sheet-metal locking clips that combine the strength of a nut with the flexibility of a spring clip. They are manufactured to ASTM, DIN, and ISO standards in spring steel, stainless steel, or bronze alloys. These clips snap onto panel edges or into holes, providing quick and secure fastening with machine screws. Available in zinc plated, stainless, or phosphor bronze finishes, they offer durability, corrosion resistance, and vibration-proof performance. They are widely used in automotive, appliances, electronics, furniture, and sheet-metal assemblies for fast and efficient fastening.

Add to quote
Category: Tags: ,
Description

Premium Quality U Clip (Speed Nut) Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality U Clips (Speed Nuts) in Dubai, UAE. The company specializes in fastening systems, sheet metal fasteners, and industrial hardware designed for quick and secure assembly applications. U Clips, commonly known as Speed Nuts, are self-retaining fastening components designed to clip onto sheet metal, panels, brackets, and structural components. They provide a ready-made threaded fixing point without the need for welding, tapping, or separate nut installation. Their spring steel design ensures secure retention and easy assembly. Manufactured using high-quality spring steel and precision engineering standards, U Clips offer excellent holding strength, vibration resistance, corrosion protection, and long-term durability in demanding industrial environments.

Standards:
– DIN 7967 (self-locking sheet metal nuts)
– ASTM A684 (spring steel for clips and fasteners)
– ISO 10511 (prevailing torque type self-locking nuts – reference)
– ISO 898-2 (mechanical properties of nuts and locking elements)
– ISO 9001 (manufacturing quality compliance)

Grades:
– Spring steel (hardened and tempered)
– Stainless steel A2 / A4 (AISI 304 / 316)
– Phosphor bronze (for corrosion and electrical uses)

Material Options:
– Carbon spring steel (zinc plated, black oxide, phosphate coated)
– Stainless steel (natural, passivated, polished)
– Bronze or brass (light-duty and electrical applications)

Size Range:
– Suitable for screw sizes: M3 to M8 (#4 to 5/16″)
– Panel thickness capacity: 0.5mm to 4mm
– Custom sizes available for automotive and industrial uses

Types:
– Standard U-clip speed nut
– Double U-clip nut (extra retention strength)
– Stainless steel U-clip nut
– Phosphor bronze/brass U-clip nut

Properties:
– Combines clip-on design with a self-locking nut function
– Provides quick fastening without separate nuts or tapping
– Teeth grip onto sheet metal panels securely
– Resistant to vibration and loosening
– Easy to install and remove, saving assembly time

Coating Options:
– Zinc electroplated (clear, yellow, or black)
– Black oxide finish
– Phosphate and oil coating
– Stainless steel natural finish

Add-ons:
– Can be supplied with captive machine screws for assembly kits
– Available in metric and inch series
– Certification/test reports (hardness, torque resistance, coating life) available on request
