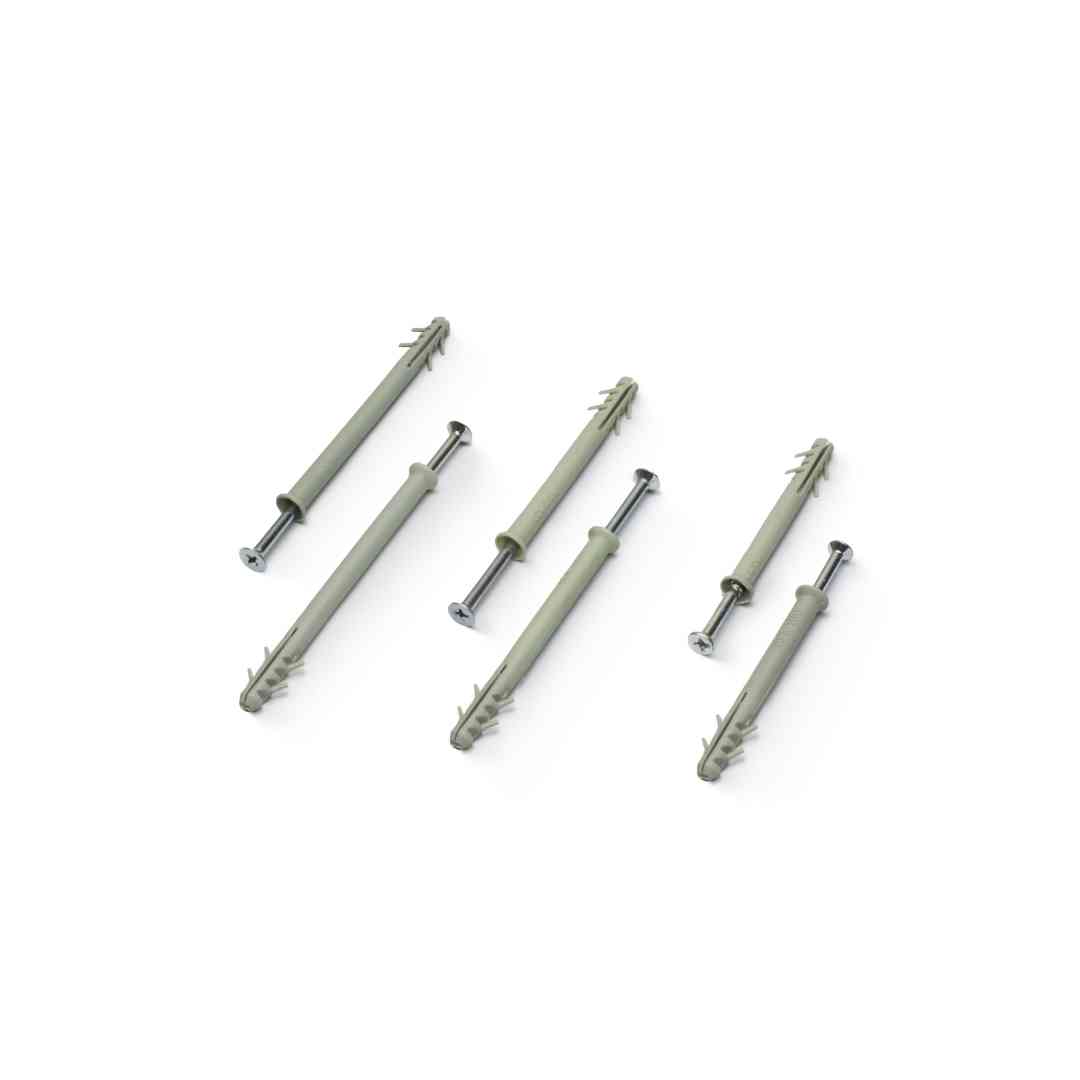

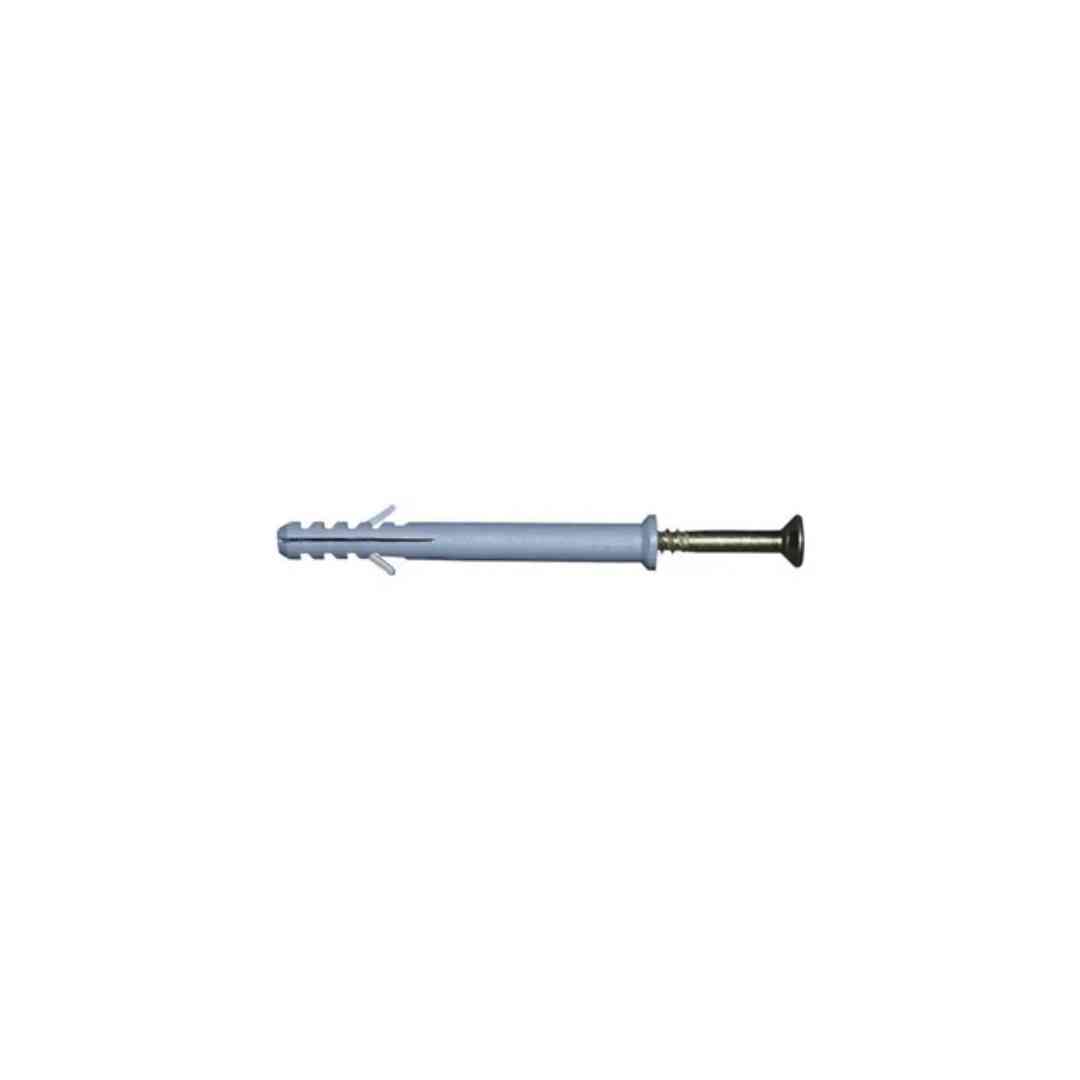

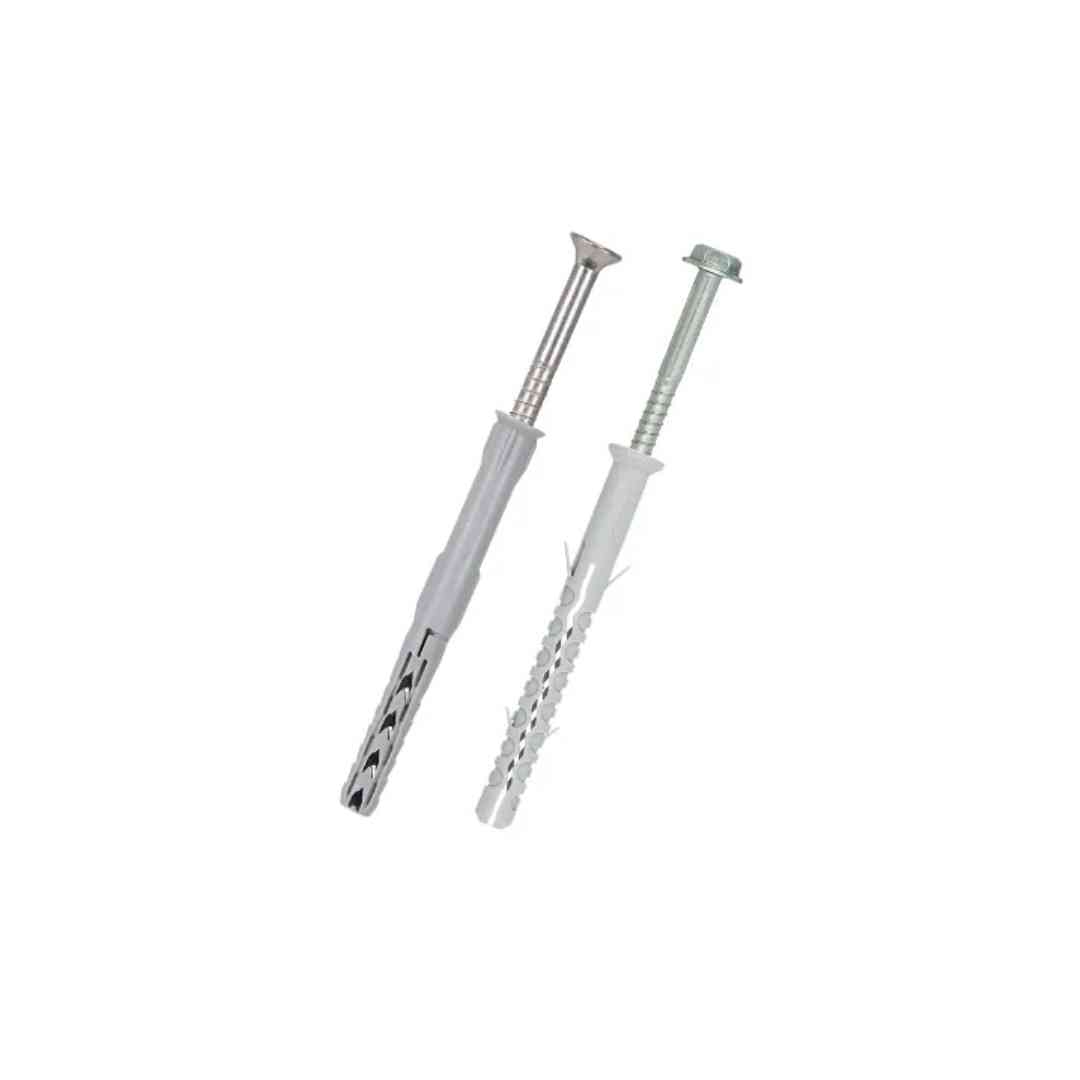

Nylon Frame Fixing Wing Type

Nylon Frame Fixings – Wing Type are heavy-duty anchoring systems used for securing window frames, door frames, battens, and structural fittings to concrete, brick, and masonry. They are manufactured to ASTM, DIN, and ISO standards with high-quality nylon sleeves and carbon or stainless steel screws. The winged design ensures anti-rotation and reliable expansion for a secure hold even in hollow substrates. Available in multiple sizes and finishes, they offer durability, ease of installation, and resistance to vibration. They are widely used in construction, carpentry, architectural installations, and general building applications.

Add to quote
Category: Tags: ,
Description

Premium Quality Nylon Frame Fixing Wing Type Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Nylon Frame Fixing – Wing Type fasteners in Dubai, UAE. The company specializes in industrial fastening and anchoring solutions designed for door and window installations, frame fixing systems, construction projects, engineering works, and industrial applications. Nylon Frame Fixing – Wing Type fasteners are specially designed anchoring systems used for securely fixing frames into concrete, brick, block, and masonry surfaces. The wing-type nylon design provides enhanced grip, anti-rotation performance, and strong anchoring capability for reliable and long-lasting installations. Manufactured using high-grade nylon materials and advanced production standards, these frame fixings provide excellent durability, impact resistance, corrosion resistance, and secure fastening performance.


Standards:
– ASTM D4066 (engineering plastics – nylon compounds)
– ASTM F547 (plastic anchors for masonry)
– DIN 2440 (frame fixing reference)
– DIN 4102 (fire behavior of building materials – nylon anchor classification)
– ISO 15977 (plastic anchors for fixing applications)

Grades:
– Nylon PA6
– Nylon PA6.6 (reinforced grade for higher strength)
– Glass fiber-reinforced nylon (for heavy-duty applications)

Material Options:
– High-quality nylon (impact and UV resistant)
– Carbon steel screw (zinc plated, hot-dip galvanized)
– Stainless steel screw (A2 / A4 for outdoor or corrosive environments)

Size Range (Compatibility):
– Anchor diameters: 6mm, 8mm, 10mm, 12mm, 14mm
– Lengths: 40mm to 200mm

Types:
– Standard nylon wing frame fixing
– Heavy-duty long expansion type
– Stainless screw with nylon wing anchor

Properties:
– Designed for secure fixing of frames, battens, and profiles into masonry, concrete, or brickwork
– Wing design prevents rotation and ensures reliable grip in hollow or solid substrates
– Easy installation with pre-assembled screw and nylon sleeve
– Provides vibration resistance and long service life

Coating Options (for screws):
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Stainless steel polished finish

Add-ons:
– Can be supplied in bulk contractor packs or retail blister packs
– Color-coded nylon sleeves available on request
– Certification/pull-out test reports available on request
