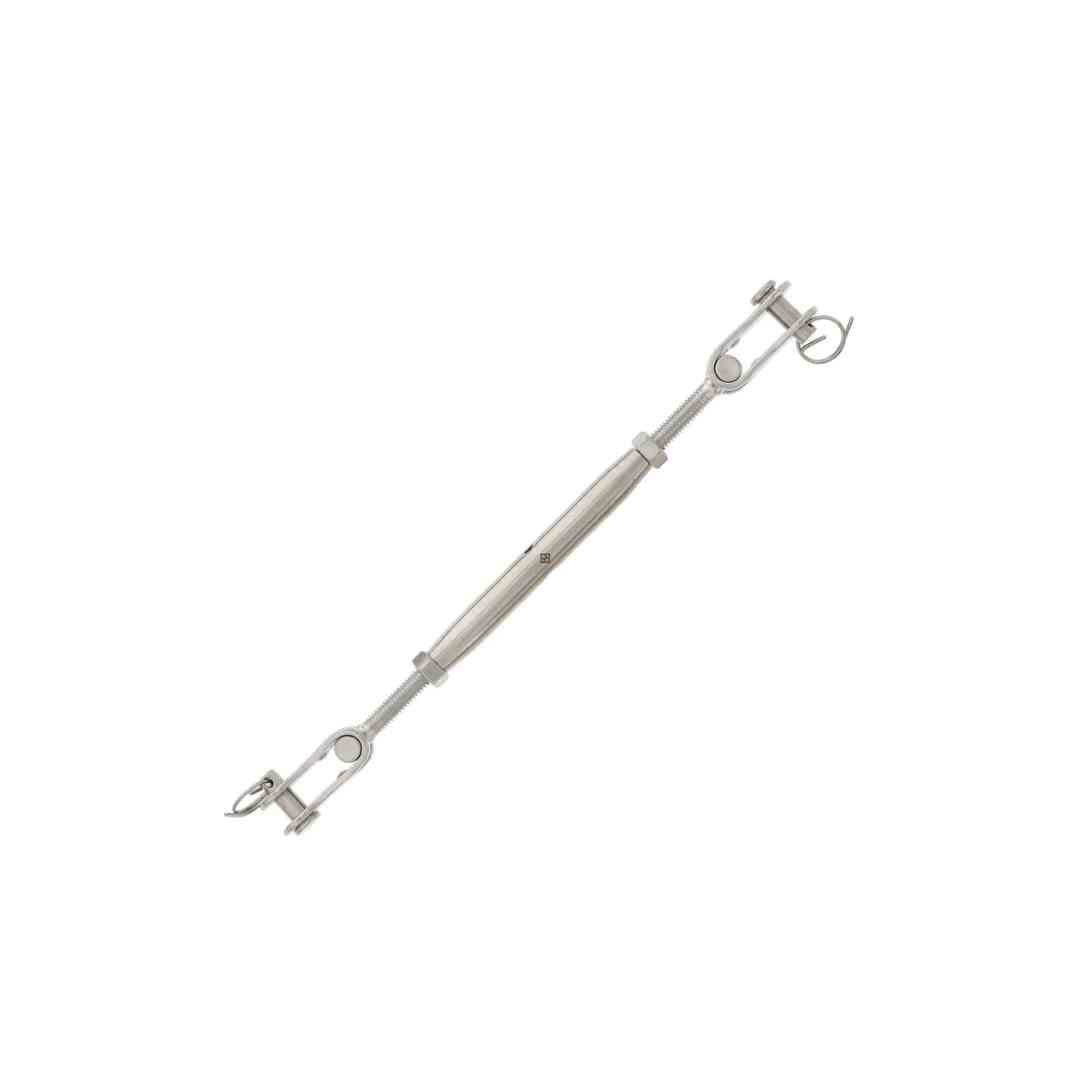

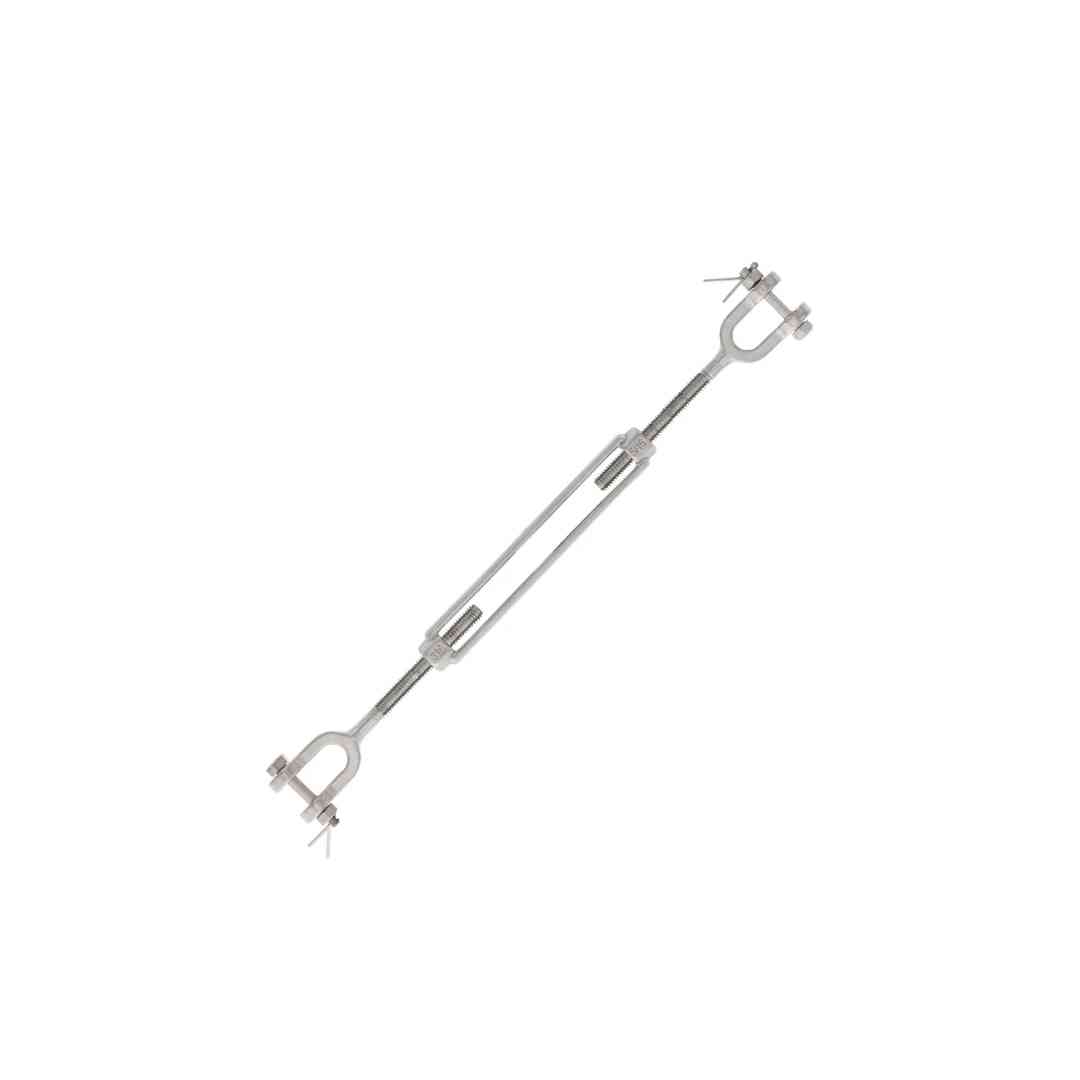

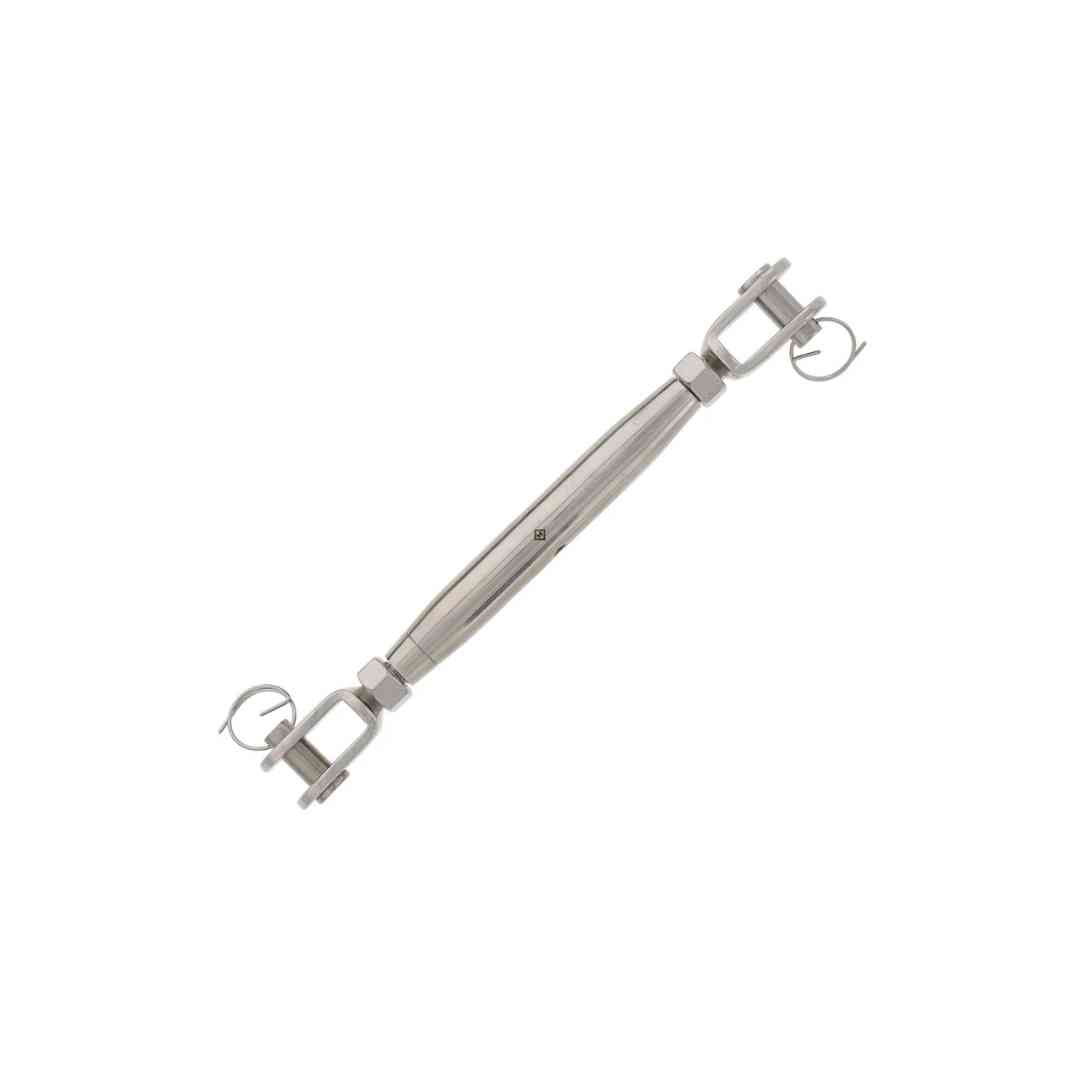

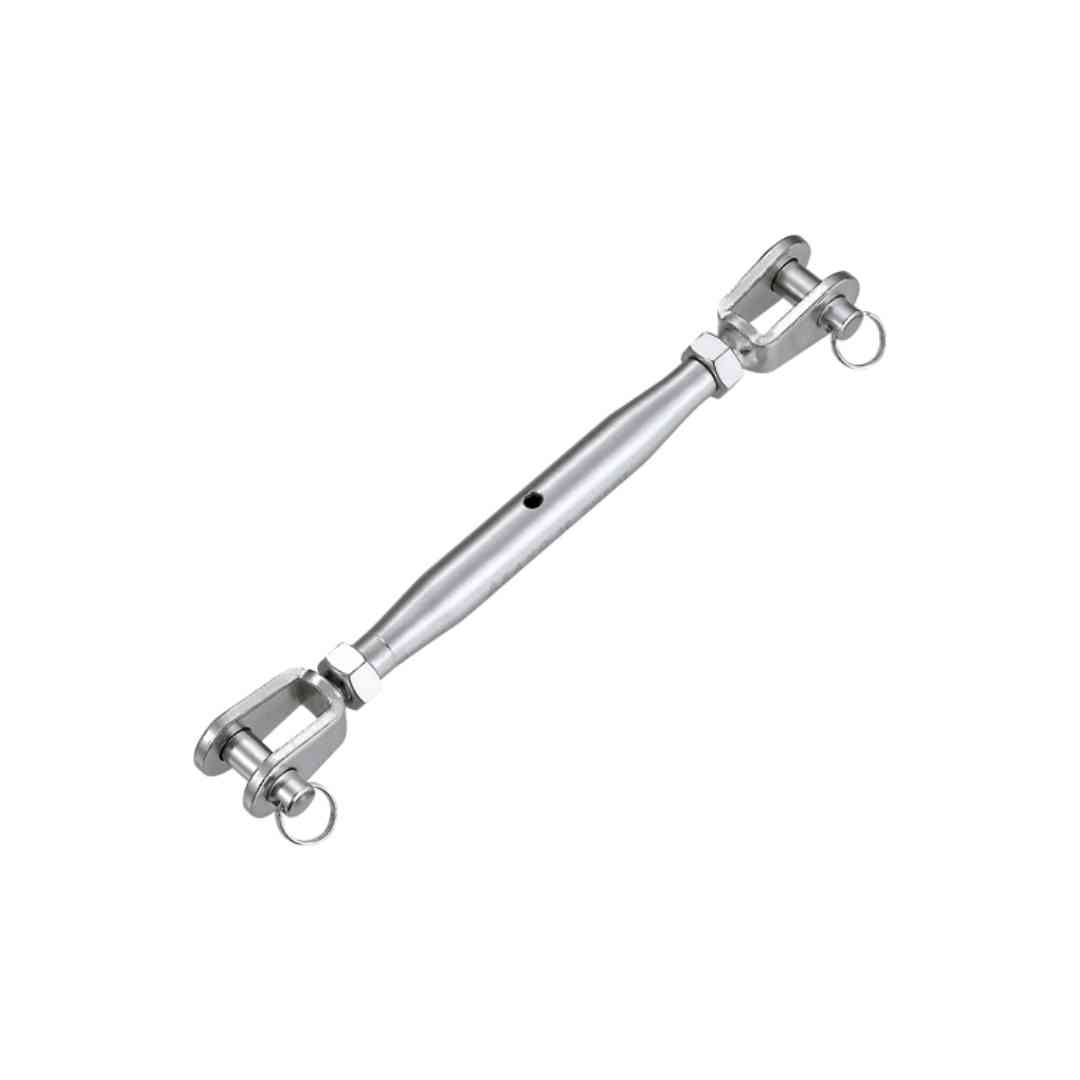

Turnbuckle Pipe Jaw

Turnbuckle Pipe Jaw assemblies are adjustable fittings used to provide tension and alignment for pipes, rods, and structural bracing systems. They are manufactured to ASTM, DIN, and ISO standards in carbon steel or stainless steel materials. The jaw end allows secure attachment with a clevis and pin, while the pipe jaw end grips or clamps onto pipe sections. These fittings provide easy adjustability, making them ideal for fencing, scaffolding, trusses, and heavy-duty bracing systems. With galvanized, powder-coated, or stainless finishes, they ensure durability and long-term resistance to corrosion.

Add to quote

Description

Description

Premium Quality Turnbuckle Pipe Jaw Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Turnbuckle Pipe Jaw systems in Dubai, UAE. The company specializes in industrial rigging and fastening solutions designed for wire rope tensioning, marine applications, construction projects, engineering works, and heavy-duty industrial operations. Turnbuckle Pipe Jaws are specially designed tensioning components used to adjust and maintain tension in wire ropes, cables, rods, and rigging assemblies. These turnbuckles feature pipe jaw end fittings that provide strong grip and secure attachment for heavy-duty load control and structural stabilization applications. Manufactured using high-grade materials and advanced production standards, Turnbuckle Pipe Jaws provide excellent tensile strength, corrosion resistance, durability, and reliable long-term performance in demanding industrial environments.

Standards:
– ASTM A36 / A307 (carbon steel for body and jaws)
– ASTM A123 / A153 (hot-dip galvanizing for corrosion resistance)
– ASTM A276 (stainless steel bar stock for machined jaws)
– DIN 1480 (turnbuckle specification)
– DIN EN ISO 1461 (galvanized coating standards)

Grades:
– Carbon steel: ASTM A36, A307
– Stainless steel: A2 / A4 (AISI 304 / 316 for marine/corrosive environments)

Material Options:
– Carbon steel (zinc plated, hot-dip galvanized, or painted)
– Stainless steel (A2 / A4 polished or brushed finish)

Size Range:
– Pipe compatibility: Ø 25mm to Ø 100mm
– Thread sizes: M8 to M36
– Lengths: 150mm to 600mm

Types:
– Standard turnbuckle pipe jaw (one side jaw, one side pipe clamp)
– Double pipe jaw type (pipe-to-pipe connections)
– Heavy-duty reinforced type
– Stainless steel pipe jaw type

Properties:
– Provides adjustable tension for pipes, rods, or structural braces
– One side fitted with a jaw (U-shaped clevis) and pin for secure attachment
– Other side designed for pipe gripping or pipe clamp fitting
– Allows fine adjustment of tension and alignment in fencing or bracing

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Powder-coated (RAL custom colors)
– Stainless steel polished finish

Add-ons:
– Can be supplied with locking nuts, washers, or safety pins
– Available in bulk contractor packs
– Certification/load capacity test reports available on request
