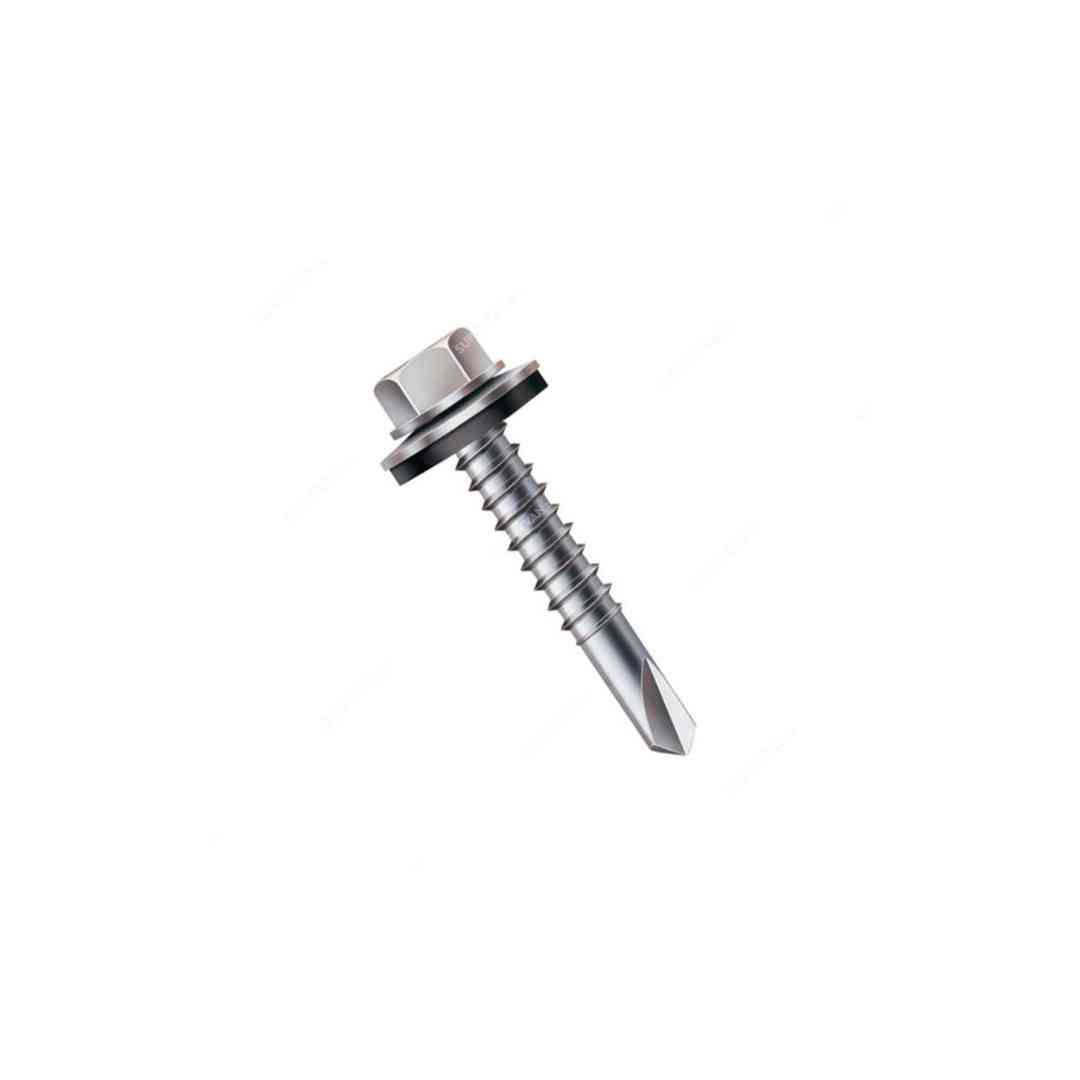

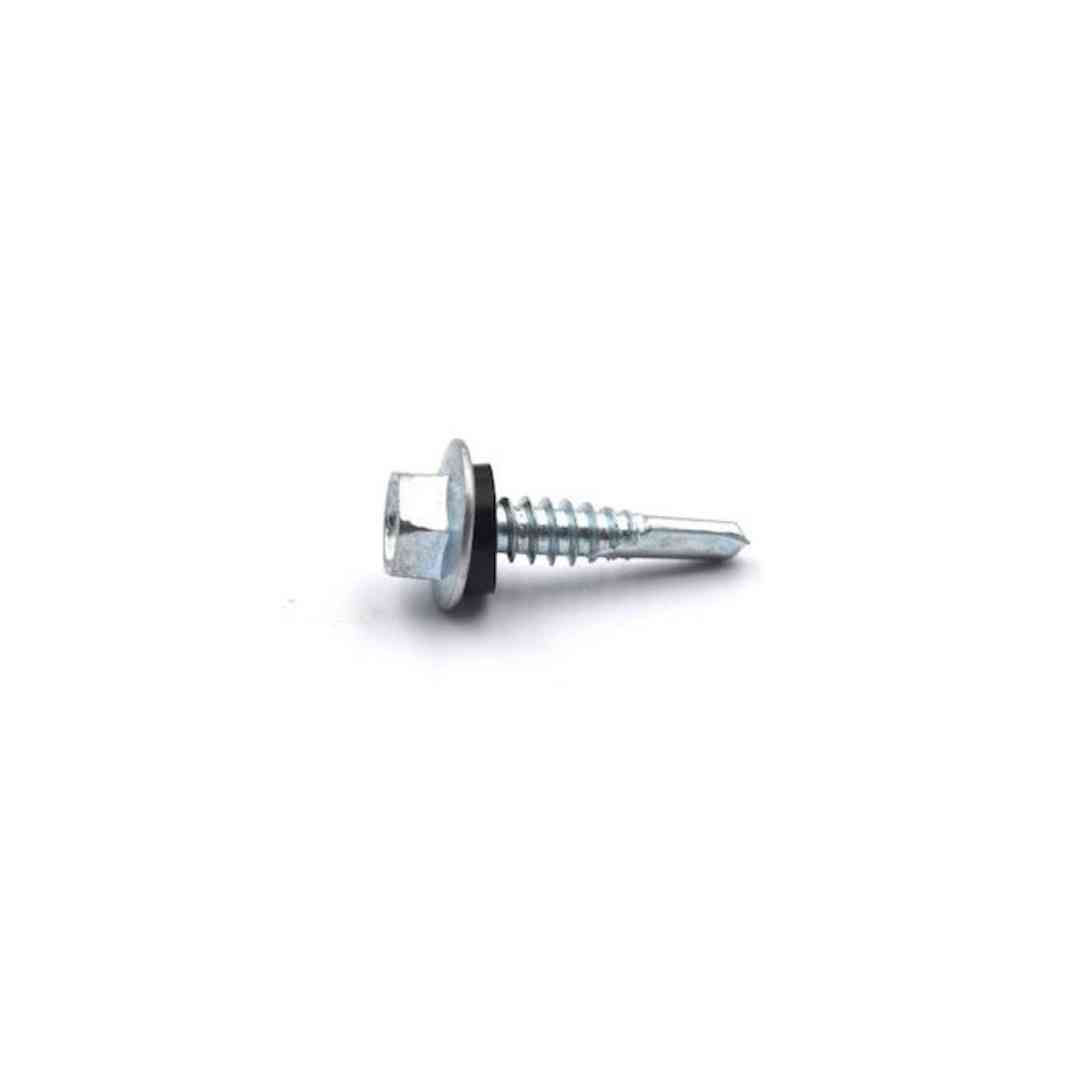

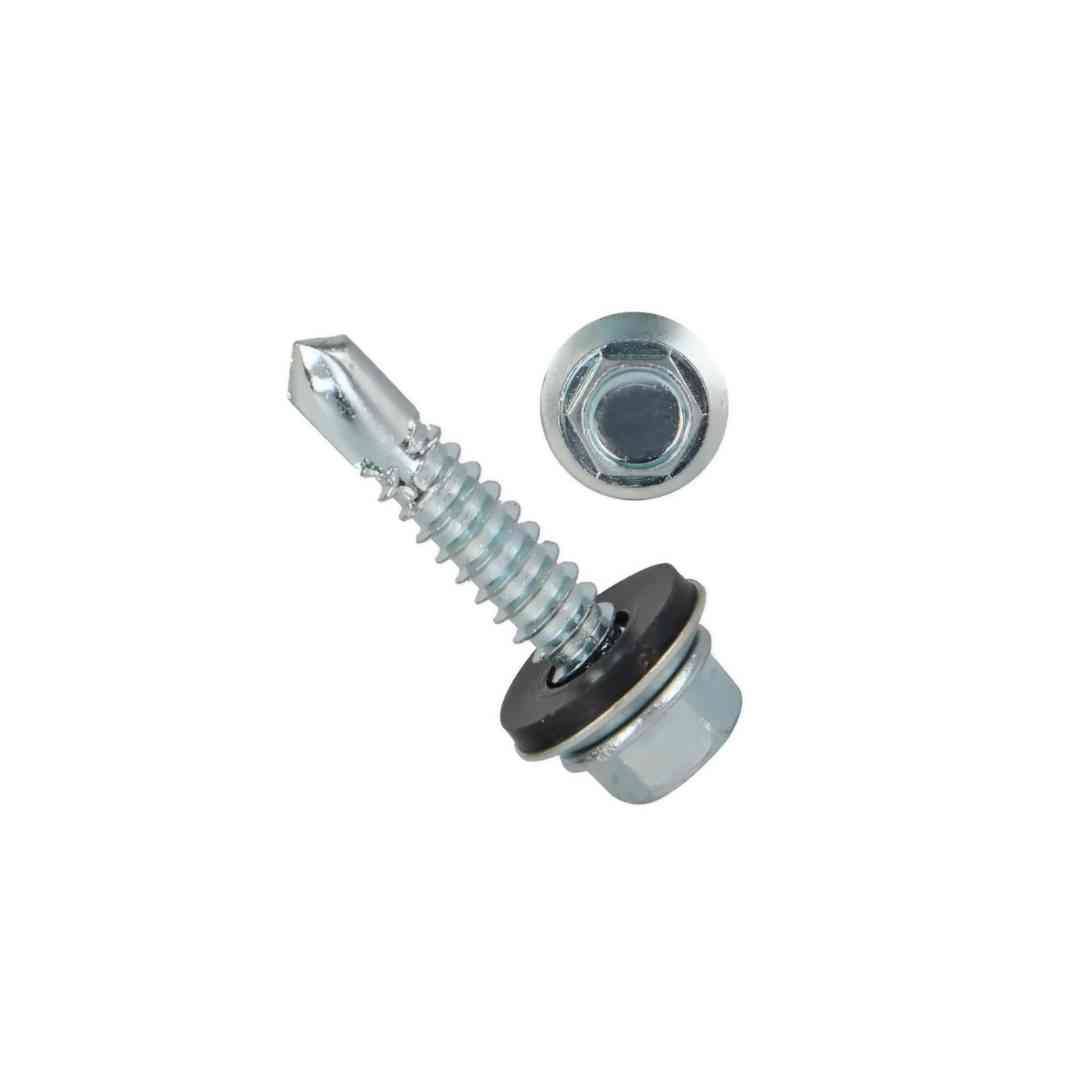

Hex Head Self Drilling Screw

Hex Head Self Drilling Screws with EPDM Washers are heavy-duty fasteners designed for roofing, cladding, and structural steel applications. They are manufactured to ASTM, DIN, and ISO standards in hardened carbon steel or stainless steel, combined with bonded EPDM washers. The self-drilling tip ensures fast installation without pre-drilling, while the EPDM washer provides a durable, watertight seal. These screws offer excellent resistance to corrosion, vibration, and weather conditions, making them suitable for outdoor use. They are widely used in roofing sheets, metal cladding, steel framing, and industrial building applications.

Add to quote
Category: Tags: ,
Description

Premium Quality Hex Head Self Drilling Screws Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Hex Head Self Drilling Screws in Dubai, UAE. The company specializes in industrial fastening solutions designed for roofing systems, sheet metal work, construction projects, engineering applications, and heavy-duty industrial operations. Hex Head Self Drilling Screws are specially designed fasteners with an integrated drill-point tip that eliminates the need for pre-drilling during installation. These screws feature a hexagonal head design that allows strong torque application and secure fastening performance in metal sheets, roofing panels, structural assemblies, and industrial systems. Manufactured using high-grade materials and advanced production standards, Hex Head Self Drilling Screws provide excellent strength, corrosion resistance, durability, and reliable long-lasting fastening performance in demanding industrial environments.

Standards:
– ASTM C954 (steel self-drilling screws for metal-to-metal connections)
– ASTM A510 (carbon steel wire for fasteners)
– DIN 7504 (hex head self-drilling screws)
– DIN EN ISO 10666 (self-drilling screw specifications)
– ISO 15480 (self-drilling screw references)

Grades:
– Carbon steel (case hardened)
– Stainless steel A2 / A4 (AISI 304 / 316)

Material Options:
– Hardened carbon steel (zinc plated / galvanized)
– Stainless steel (A2 / A4 for corrosion resistance)
– Combined with bonded EPDM sealing washer

Diameter Range: 4.2mm to 6.3mm

Length Range: 13mm to 150mm

Thread Types:
– Self-drilling thread for direct fixing into steel up to 12mm thick
– Coarse thread for roofing and cladding sheets

Head Types:
– Hex head
– Hex washer head
– Hex flange head

Properties:
– Integrated self-drilling tip eliminates the need for pilot drilling
– Hex head design allows high torque tightening with wrenches/drivers
– Supplied with bonded EPDM washer for watertight seal
– Ideal for roofing, cladding, and structural steel fixing
– Withstands vibration, thermal expansion, and outdoor exposure

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Ruspert or Dacromet coatings (for enhanced corrosion protection)
– Stainless steel natural finish

Add-ons:
– Supplied with EPDM, neoprene, or composite sealing washers
– Available with colored heads for roofing/cladding (RAL colors)
– Certification/test reports available on request
