Hook Eye with Shield Anchors are expansion fasteners designed for medium-duty fixings in concrete, brick, and block walls. The expansion shield grips the substrate securely, while the hook or eye end allows attachment of wires, chains, or fixtures. Manufactured to ASTM and DIN standards, they are available in carbon steel, stainless steel, and zinc alloy versions. They provide safe and reliable fastening solutions where suspension or anchoring points are required. These anchors are widely used in construction, electrical works, HVAC installations, and general building applications.

Add to quote
Category:
Description

Premium Quality Hook Eye with Shield Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Hook Eye with Shield anchors in Dubai, UAE. The company specializes in fastening systems, anchoring solutions, and construction hardware designed for concrete, brick, block, and masonry applications in residential, commercial, and industrial projects. Hook Eye with Shield is a mechanical expansion fastening system consisting of a hook-shaped eye bolt combined with a shield anchor. When tightened, the shield expands inside the base material, providing a secure and stable fixing point. It is widely used for hanging loads, supporting fixtures, and general-purpose anchoring in construction and installation work. Manufactured using high-grade steel and precision engineering standards, Hook Eye with Shield anchors offer excellent strength, corrosion resistance, vibration stability, and long-lasting performance.

Standards:
– ASTM C1513 (mechanical anchors in concrete and masonry)
– ASTM A307 (carbon steel bolts and hooks)
– ASTM F593 (stainless steel fasteners)
– DIN 529 (anchors with shield/sleeve design)
– DIN 582 / DIN 444 (eye bolt and hook bolt reference)

Grades:
– ASTM Grades: A36, A307 (mild steel), F593 (stainless)
– DIN / ISO Grades: 4.6, 5.6, 8.8

Material Options:
– Carbon steel
– Stainless steel (A2 / A4 for corrosion resistance)
– Zinc alloy (light duty)

Diameter Range (Shield Body): M6 to M16 (metric) / 1/4″ to 5/8″ (inch)

Length Range: 40mm to 120mm depending on application

Thread Types:
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

Types:
– Hook with shield anchor (expansion type)
– Eye with shield anchor (loop type)
– Heavy-duty shield anchor with hook/eye

Properties:
– Expansion shield grips concrete, brick, or block when tightened
– Provides strong pull-out resistance
– Hook or eye end allows suspension of loads such as cables, fixtures, or fittings
– Suitable for medium-duty structural and fixing applications

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Stainless steel finish

Add-ons:
– Can be supplied with washers and nuts
– Available in retail blister packs or bulk contractor packaging
– Certification/test reports on request

Related products

Quick view

Heavy Duty Shield Anchor

Add to quote
Heavy Duty Shield Anchors are robust expansion fasteners designed for reliable medium to heavy-duty fixings in concrete, brick, and block substrates. They use a multi-segment expansion shield that grips tightly when tightened, delivering superior load capacity. Manufactured to ASTM and DIN standards, they are available in hex, countersunk, flange, hook, and eye variants. With galvanized, stainless, or epoxy-coated finishes, they ensure long-lasting durability in harsh environments. They are widely used in structural steel fixings, machinery installations, railings, security barriers, and industrial construction projects.
Quick view

Hit Nail Anchor

Add to quote
Hit Nail Anchors are quick-install expansion fasteners used for fixing light to medium loads into concrete, brick, and block walls. They are installed by hammering the pre-assembled nail into the anchor body, which expands to grip the base material. Manufactured to ASTM and DIN standards, they are available in carbon steel, stainless steel, and nylon-metal combinations. These anchors provide a cost-effective and time-saving solution for construction and general fixing works. They are widely used for electrical fittings, pipe clips, brackets, frames, and light-duty construction applications.
Quick view

Hollow Bolt

Add to quote
Hollow Bolts are anchoring fasteners designed for fixing into hollow walls such as drywall, gypsum board, or cavity walls. They feature an expanding mechanism that grips the back of the wall to create a secure fastening point. Manufactured to ASTM and DIN standards, they are available in steel, stainless steel, zinc alloy, and nylon types. These bolts provide a strong and reliable solution for mounting fixtures where traditional bolts cannot be used. They are widely used for shelving, cabinets, curtain rails, electrical fittings, and medium-duty wall installations.
Quick view

Hump Anchor

Add to quote
Hump Anchors are cast-in-place fastening elements featuring a hump-shaped body that locks securely into concrete foundations. They provide exceptional pull-out resistance and are manufactured in carbon steel, alloy steel, or stainless steel to ASTM and DIN standards. Available in various sizes and coatings, they ensure long-lasting durability under heavy static or dynamic loads. These anchors are ideal for use in foundations, precast concrete elements, heavy machinery installations, and industrial structures. They are widely used in construction, civil engineering, and infrastructure projects where secure anchorage is essential.
Quick view

Jack Nut

Add to quote
Jack Nuts are collapsible blind fasteners designed for use in thin or soft materials such as sheet metal, plastic, and composites. When tightened, their slotted body collapses to form legs that grip behind the material, distributing load and preventing pull-out. They are manufactured to ASTM and DIN references and available in carbon steel, stainless steel, and brass. Jack Nuts are easy to install with common hand tools and do not require special equipment. They are widely used in automotive, electrical enclosures, HVAC, furniture, and light construction applications.
Quick view

Light Duty Bolt Anchor

Add to quote
Bolt Anchors Light Duty are mechanical expansion fasteners designed for securing lightweight fixtures into masonry and concrete surfaces. They work by expanding a sleeve or split body as the bolt is tightened, providing grip in the drilled hole. Manufactured to ASTM and DIN standards, they are commonly available in carbon steel, stainless steel, and zinc alloy. These anchors are suitable for applications such as brackets, frames, conduit supports, and shelving. They provide an economical and easy-to-install solution for general-purpose light-duty fixings in construction and maintenance.
Quick view

Metal Frame Anchor

Add to quote

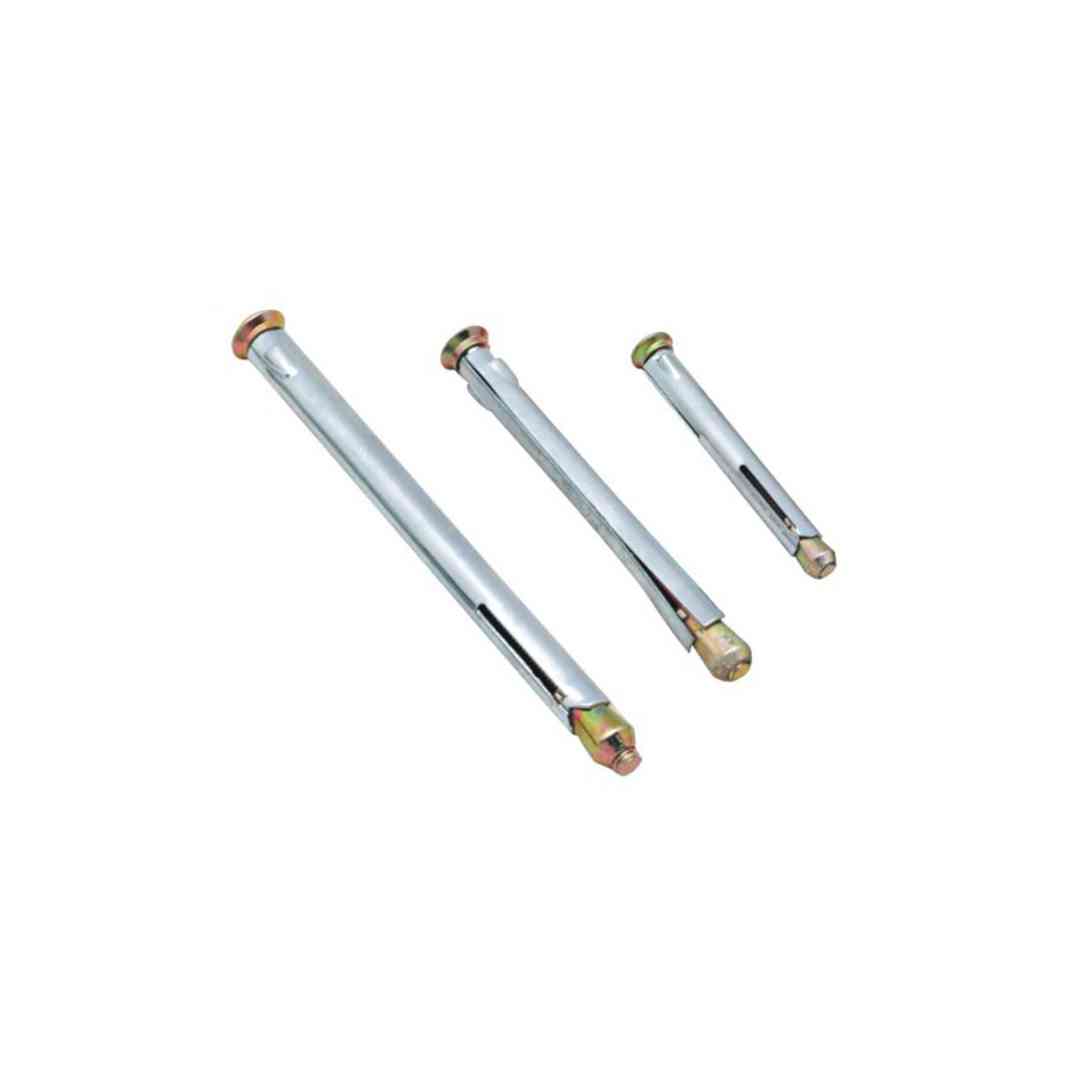

Metal Frame Anchors are fastening solutions designed for securing door and window frames into masonry, concrete, and block walls. They feature an expansion sleeve mechanism that locks firmly into the substrate when tightened. Manufactured to ASTM and DIN standards, they are available in steel, stainless steel, and zinc alloy versions. Their versatility makes them suitable for construction, renovation, and finishing applications. They are widely used in door and window installations, curtain walling, façade frames, and light structural fixings.
