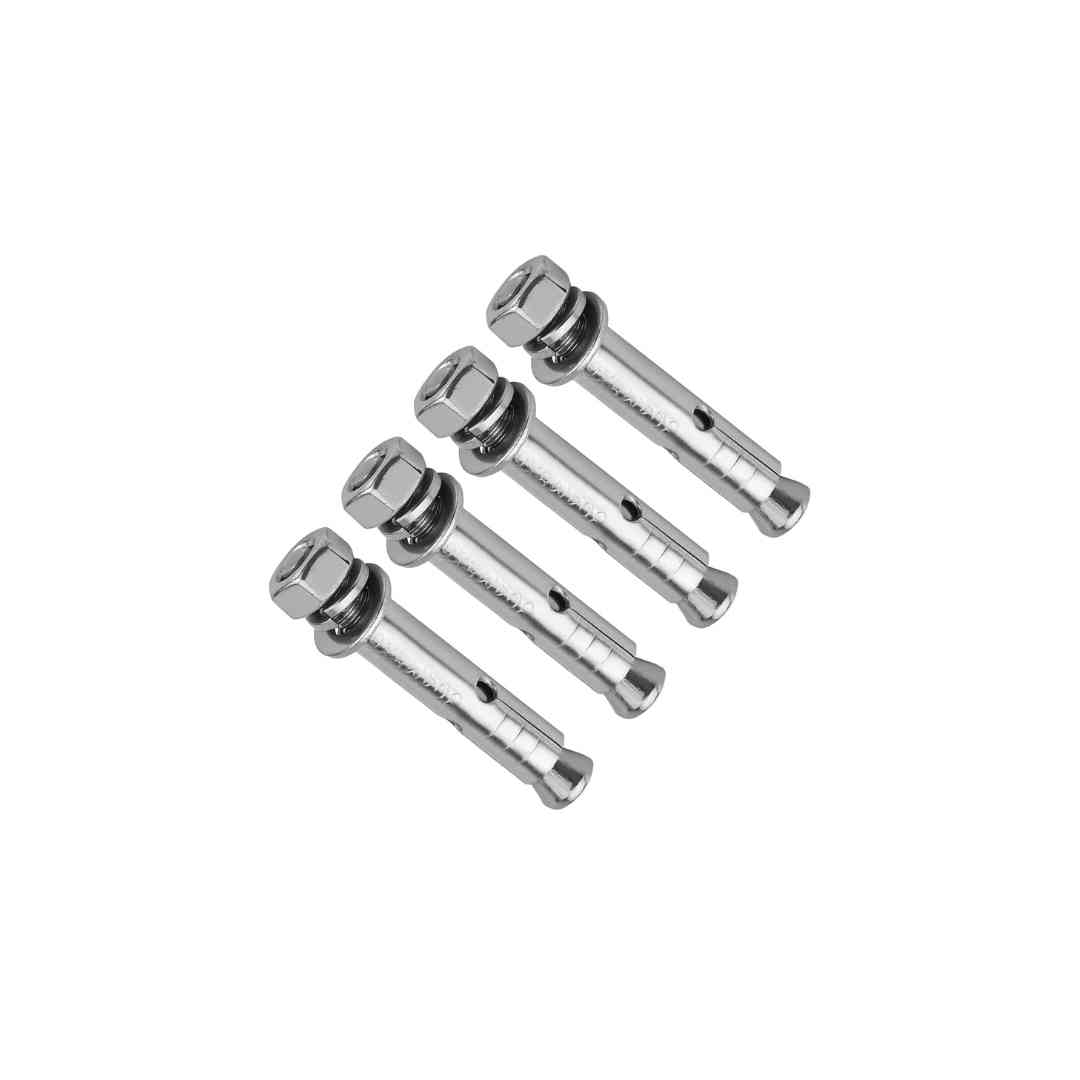

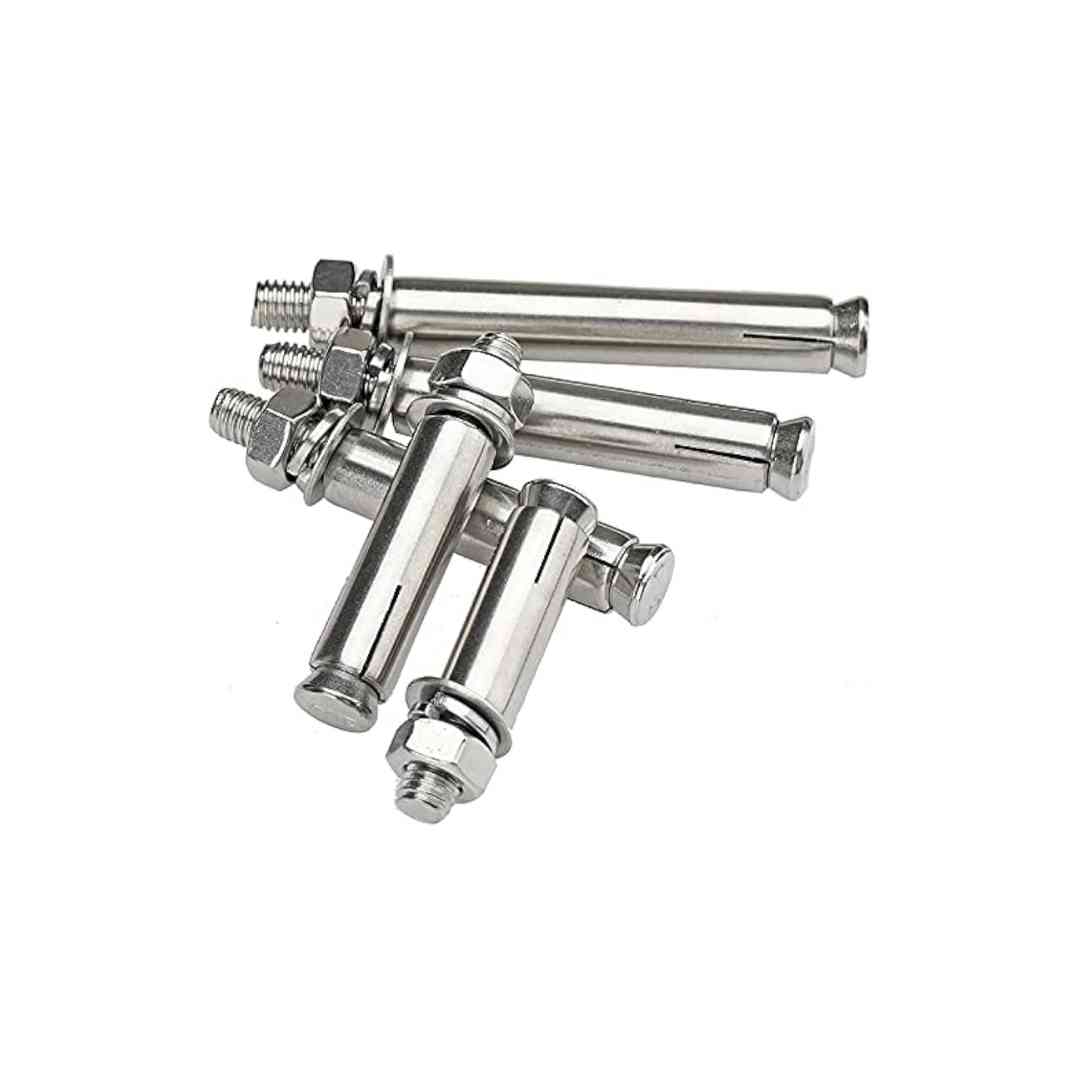

Sleeve Anchor with Hex Bolt
Sleeve Anchor with Hex Bolt - Image 2
Hook Eye with Shield
Hook Eye with Shield
Back to products
Sleeve Anchor with Flange Nut
Sleeve Anchor with Flange Nut

Sleeve Anchor with Hex Bolt

Sleeve Anchors with Hex Bolts are expansion fasteners designed for secure fixings into concrete, brick, and block surfaces. They feature a torque-applied hex bolt which expands the surrounding sleeve, creating a strong grip within the substrate. Manufactured to ASTM and DIN standards, they are available in carbon steel, galvanized, and stainless steel options. These anchors are easy to install and suitable for medium to heavy-duty load applications. They are commonly used for structural fixings, machinery bases, railings, brackets, and heavy construction assemblies.

Add to quote
Category: Tags: ,
Description

Premium Quality Sleeve Anchor with Hex Bolt Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Sleeve Anchors with Hex Bolt in Dubai, UAE. The company specializes in mechanical anchoring systems, construction fasteners, and industrial hardware designed for concrete, brick, block, and masonry applications across residential, commercial, and industrial projects. Sleeve Anchor with Hex Bolt is a versatile expansion fastener consisting of a threaded hex bolt, expansion sleeve, washer, and nut. When tightened, the sleeve expands against the base material, creating a strong and secure fixing. It is widely used for medium to heavy-duty anchoring applications requiring reliable grip and stability. Manufactured using high-grade steel and precision engineering standards, Sleeve Anchors offer excellent load-bearing capacity, corrosion resistance, and long-lasting durability in demanding environments.

Standards:
– ASTM C1513 (mechanical anchors in concrete and masonry)
– ASTM A307 (carbon steel bolts for general construction)
– ASTM F593 (stainless steel bolts)
– DIN 529 (expansion anchors in masonry/concrete)
– ISO 15977 (general fastener anchors reference)

Grades:
– ASTM Grades: A36, A307, F593 (stainless)
– DIN / ISO Grades: 4.6, 5.6, 8.8, 10.9

Material Options:
– Carbon steel
– Stainless steel (A2 / A4 for corrosion resistance)
– Galvanized steel

Diameter Range: M6 to M20 (metric) / 1/4″ to 3/4″ (inch)

Length Range: 40mm to 200mm depending on application

Thread Types:
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

Types:
– Sleeve anchor with hex head bolt (standard)
– Sleeve anchor with nut and washer assembly
– Heavy-duty sleeve anchor with extended sleeve

Properties:
– Expansion sleeve grips concrete, brick, or block when tightened
– Hex bolt head allows strong torque application
– Provides reliable medium to heavy-duty anchoring strength
– Suitable for both solid and hollow substrates

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Stainless steel natural finish
– Mechanical galvanized

Add-ons:
– Supplied with matching nuts and washers
– Available in bulk contractor packs or retail packaging
– Certification/test reports available on request
