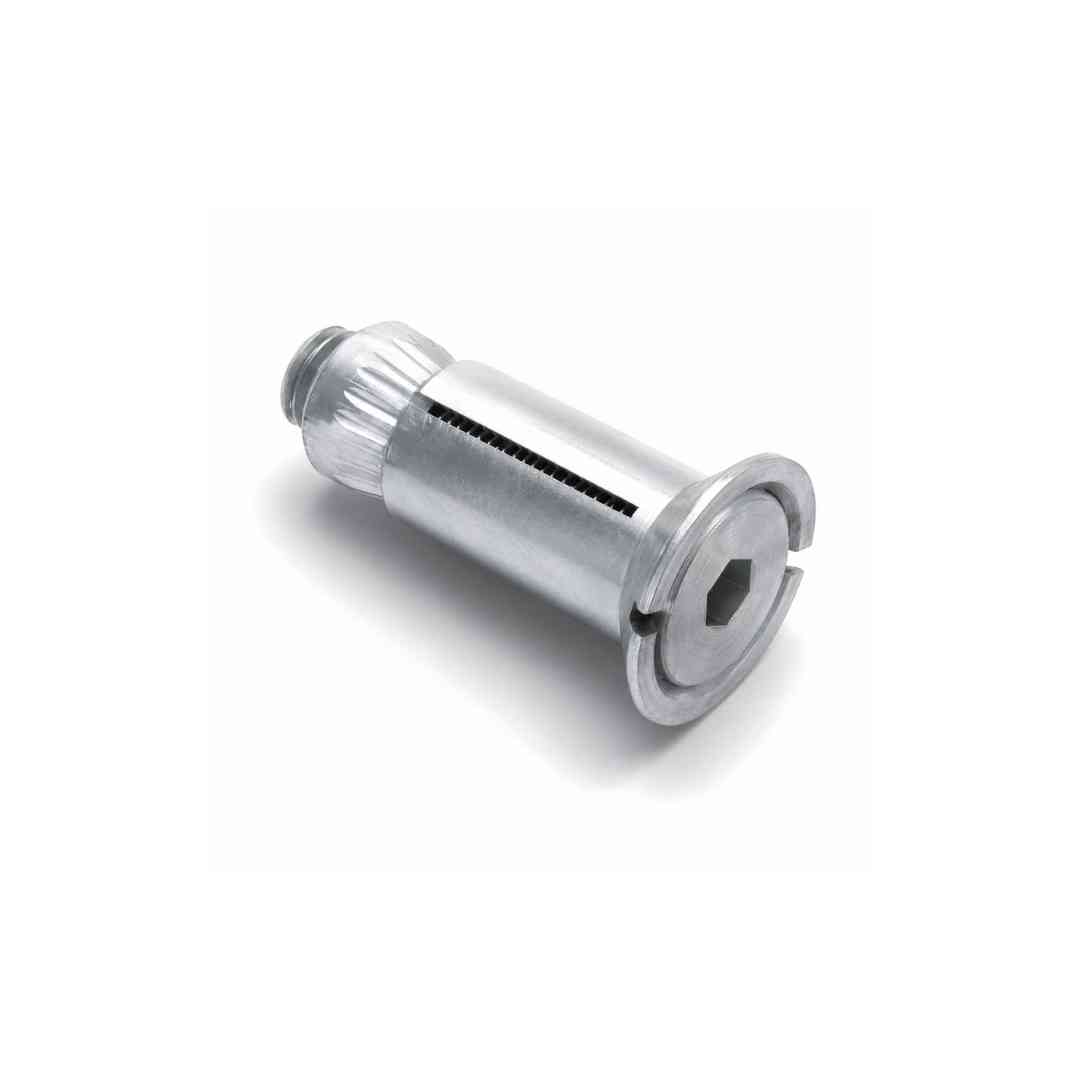

Metal Insulation Anchor - Image 1
Metal Insulation Anchor - Image 2
Click to enlarge
Metal Insulation Anchor
Metal Insulation Anchor - Image 2
Nylon Insulation Anchor
Nylon Insulation Anchor
Back to products
Round Lifting Socket
Round Lifting Socket

Metal Insulation Anchor

Metal Insulation Anchors are heavy-duty fasteners designed to fix insulation boards to concrete, brick, or block surfaces. Their all-metal design ensures maximum holding strength and durability in demanding environments. Manufactured to ASTM and DIN standards, they are available in hammer-in, screw-in, and disc head versions. These anchors provide excellent resistance to thermal effects, UV exposure, and mechanical stress. They are widely used in façade insulation systems, industrial cladding, HVAC insulation, and heavy-duty construction projects.

Add to quote
Category: Tags: ,
Description

Premium Quality Metal Insulation Anchor Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Metal Insulation Anchors in Dubai, UAE. The company specializes in construction fasteners, insulation fixing systems, and industrial hardware designed for thermal insulation boards, HVAC duct insulation, façade systems, cladding installations, and modern building envelope applications. Metal Insulation Anchors are specially designed high-strength fixing components used to securely attach insulation materials to concrete, brick, block, and masonry surfaces. These anchors provide superior mechanical strength and long-term stability, making them suitable for heavy-duty insulation applications in demanding environments. Manufactured using high-grade steel and advanced production standards, Metal Insulation Anchors offer excellent load-bearing capacity, corrosion resistance, durability, and reliable performance in both indoor and outdoor construction projects.


Standards:
– ASTM C1513 (anchors in concrete and masonry)
– ASTM A36 / A307 (carbon steel fasteners)
– ASTM F593 (stainless steel fasteners)
– DIN 440 (large washers for load distribution)
– DIN 4108 (insulation fixing anchors in construction)

Grades:
– ASTM Grades: A36, A307 (mild steel), F593 (stainless)
– DIN / ISO Grades: 4.6, 5.6, 8.8 (bolt/anchor body)

Material Options:
– Carbon steel with protective coating
– Stainless steel (A2 / A4 grades)
– Galvanized steel
– Aluminum (lightweight type)

Diameter Range (Disc Head): 25mm to 100mm

Length Range: 40mm to 250mm depending on insulation thickness

Types:
– Hammer-in metal insulation anchor
– Screw-in metal insulation anchor
– Metal disc insulation anchor
– Hybrid anchor (metal body + plastic cap)

Properties:
– Designed to fix rigid insulation boards into concrete, brick, and block
– Metal construction provides superior load capacity
– Resistant to heat, UV, and aging compared to plastic anchors
– Suitable for heavy insulation panels and façade systems

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Stainless steel natural finish
– Epoxy-coated steel (corrosion protection)

Add-ons:
– Supplied with thermal caps to reduce bridging
– Available with large disc heads for façade panels
– Certification/test reports available on request
