Round Lifting Socket

Round Lifting Sockets are heavy-duty threaded inserts used in precast concrete elements for safe lifting and handling operations. They are embedded into the concrete and reinforced with rebar to ensure high load-bearing capacity. Manufactured to ASTM and DIN standards, they are available in carbon steel, stainless steel, and galvanized versions. These sockets are used with lifting clutches to provide secure attachment points for cranes and hoists. They are widely used in precast panels, beams, columns, staircases, and large concrete structures.

Add to quote
Category: Tags: ,
Description

Premium Quality Round Lifting Socket Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Round Lifting Sockets in Dubai, UAE. The company specializes in precast concrete accessories, lifting systems, and industrial anchoring solutions designed for construction, infrastructure, precast concrete production, and heavy lifting operations. Round Lifting Sockets are specially engineered embedded lifting components used in precast concrete elements such as panels, slabs, beams, and structural units. These sockets provide a secure threaded connection point for lifting eyebolts or lifting hooks, enabling safe handling, transportation, and installation of heavy precast components. Manufactured using high-strength steel and advanced production standards, Round Lifting Sockets offer excellent load-bearing capacity, durability, corrosion resistance, and reliable performance in demanding construction environments.

Standards:
– ASTM A29 / A576 (carbon & alloy steels for machined components)
– ASTM A582 (stainless steel bars for precision parts)
– DIN EN 1992-4 (design of fastening elements in concrete)
– DIN 405 / ISO metric thread standards (thread dimensions)

Grades:
– Carbon steel grades (A36, 1045)
– Alloy steels (quenched & tempered)
– Stainless steel (A2 / A4 grades)

Material Options:
– High-strength carbon steel
– Stainless steel (for corrosion resistance)
– Galvanized or epoxy-coated steel

Diameter Range (Thread Sizes): M10 to M52 (metric) / 3/8″ to 2″ (inch)

Length Range: 40mm to 300mm depending on lifting capacity

Thread Types:
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

Types:

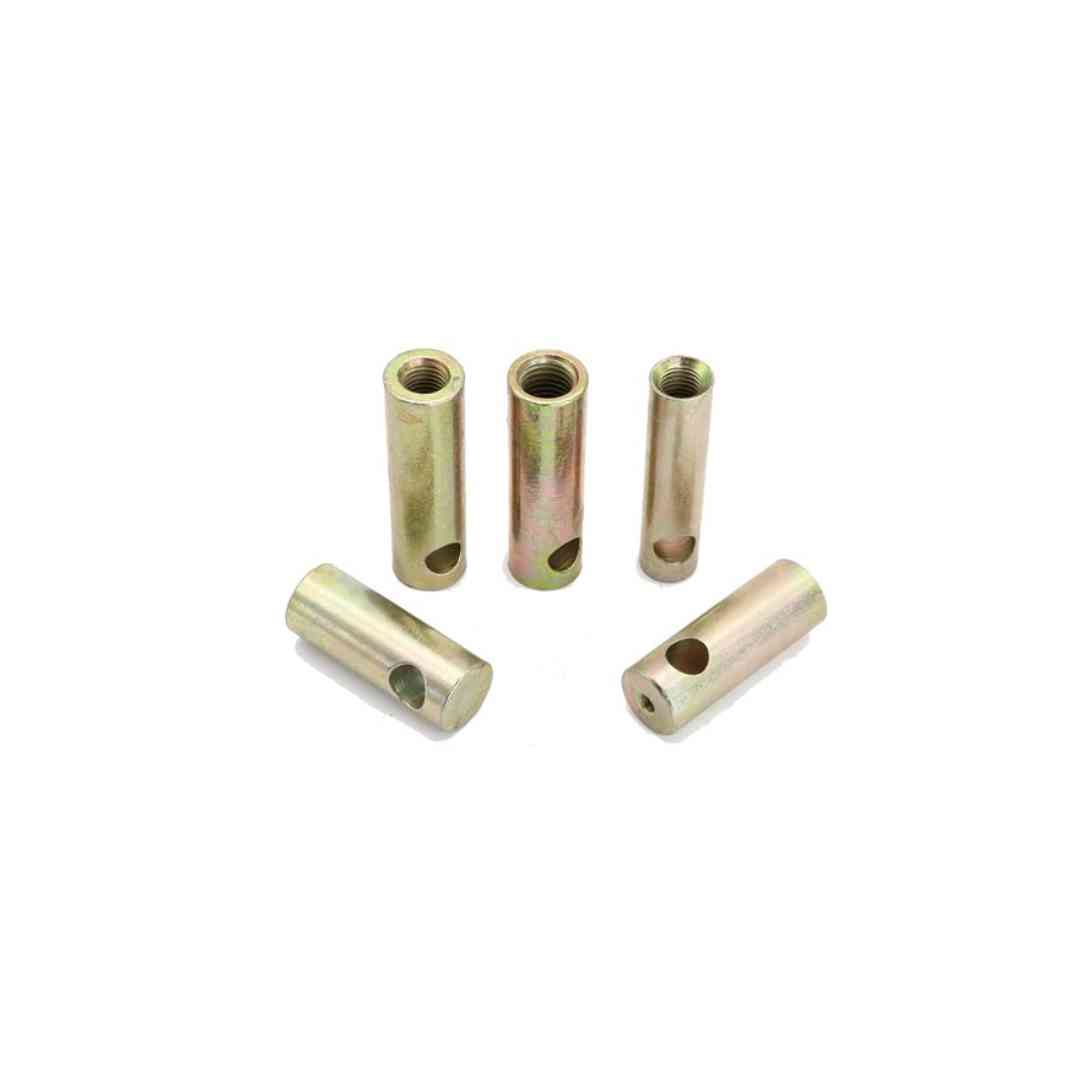

– Standard round lifting socket (with cross pin hole)

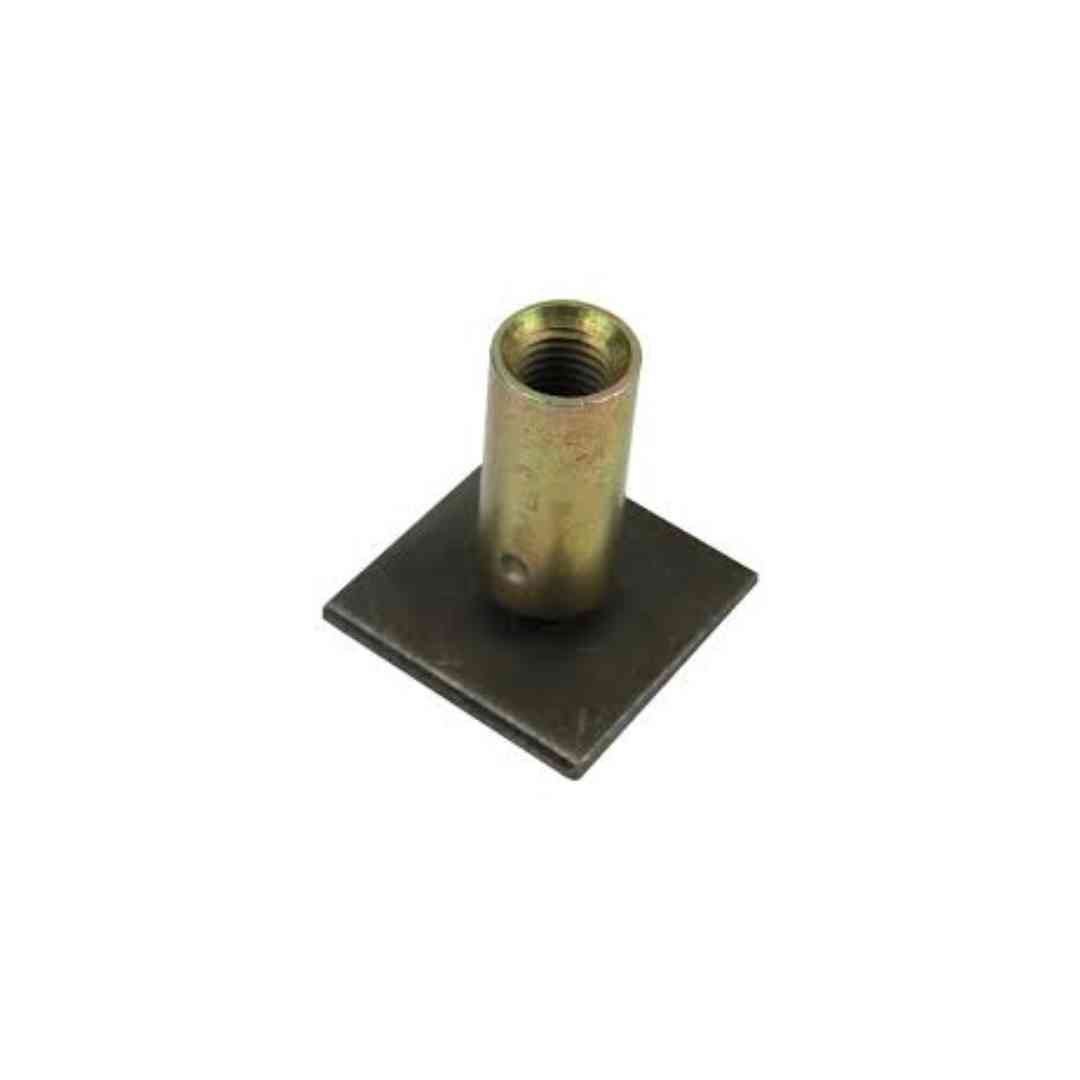

– Round lifting socket with large base plate
– Insulated round lifting socket (special applications)

Properties:
– Designed for lifting and handling precast concrete elements
– Embedded in concrete with rebar or anchoring reinforcement
– Provides safe load transfer during lifting operations
– Suitable for vertical and angled lifting loads

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Stainless steel natural finish
– Epoxy-coated for corrosion protection

Add-ons:
– Supplied with matching reinforcement bars or rebar cages
– Compatible with lifting clutches and shackles
– Load capacity certification and test reports available
