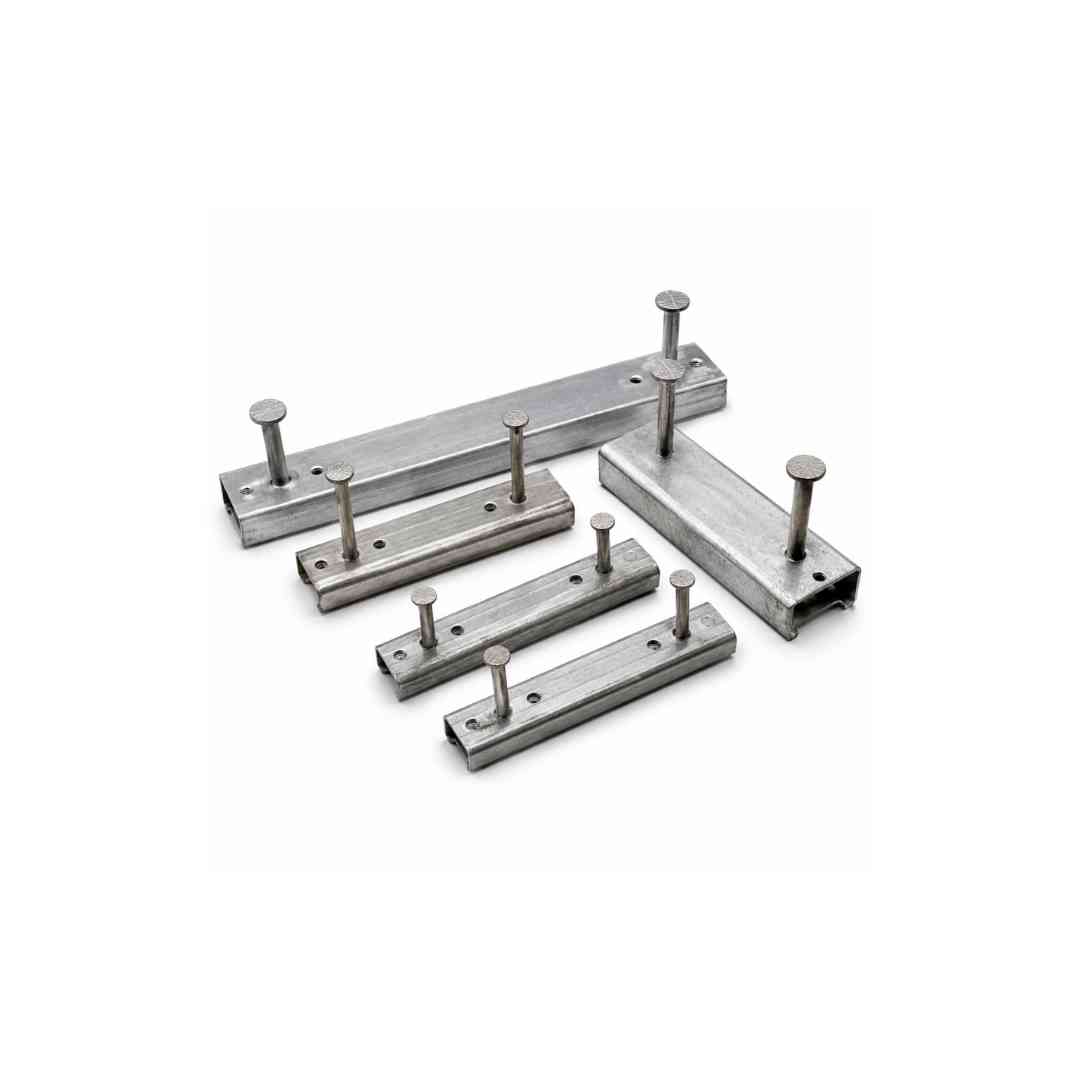

Metal Frame Anchor
Metal Frame Anchor

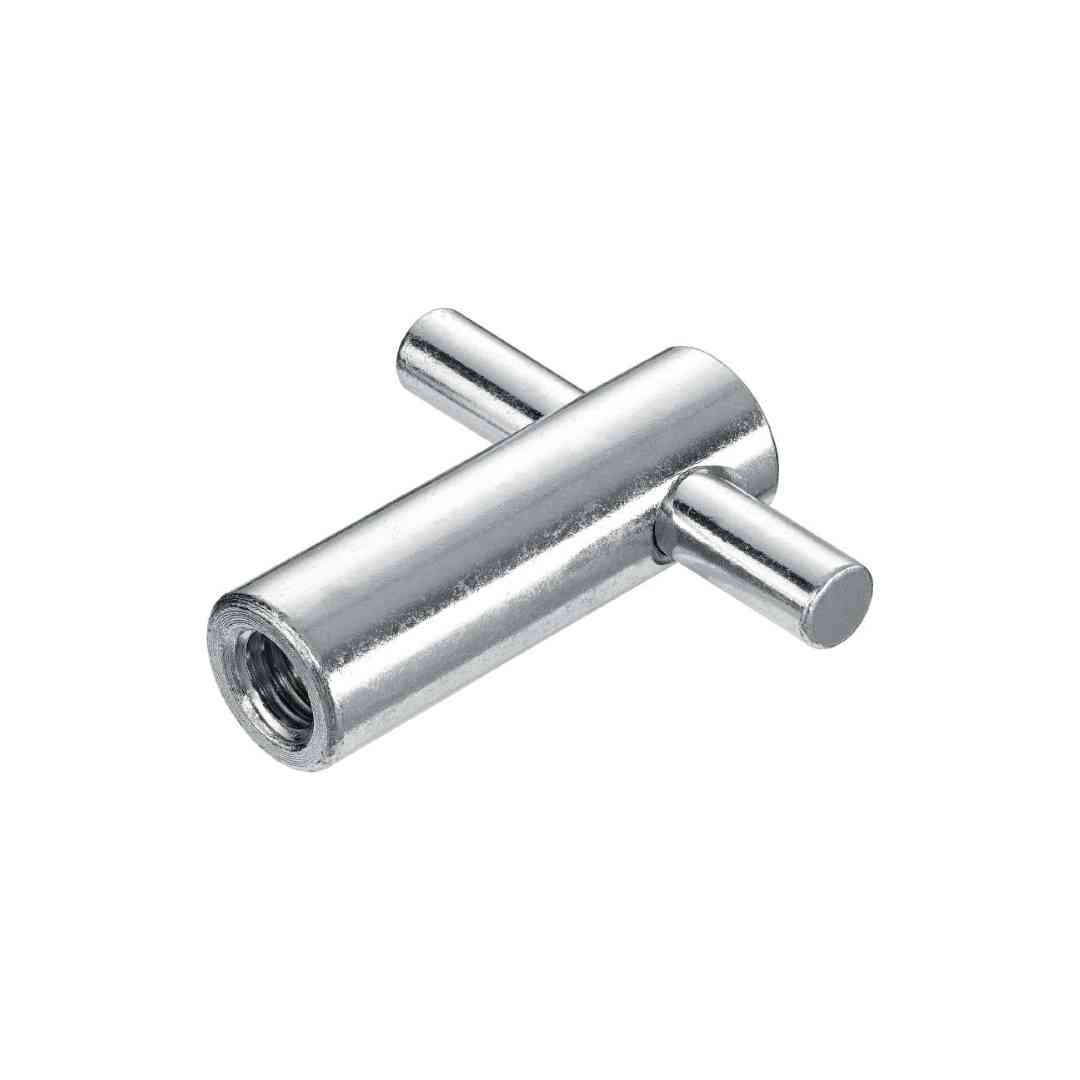

Casting Socket

Casting Sockets are threaded inserts embedded in precast concrete during manufacturing to enable lifting, handling, and fixing operations. They are manufactured from carbon steel, alloy steel, or stainless steel to suit different load and environmental conditions. Conforming to ASTM and DIN standards, they are available in smooth, cross-hole, and reinforced designs. These sockets provide reliable anchorage for lifting clutches and threaded accessories during installation. They are widely used in precast panels, beams, staircases, foundation blocks, and structural concrete elements.

Add to quote
Category: Tags: ,
Description

Premium Quality Casting Socket Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Casting Sockets in Dubai, UAE. The company specializes in precast concrete accessories, anchoring systems, and industrial fastening solutions designed for construction, infrastructure, precast concrete manufacturing, and structural engineering applications. Casting Sockets are specially engineered threaded inserts embedded into concrete during the casting process. They provide secure fixing points for lifting, bracing, structural connections, façade installations, and various attachment requirements in precast concrete structures. Manufactured using high-grade steel and advanced production standards, Casting Sockets offer exceptional strength, precise threading, corrosion resistance, and reliable long-term performance in demanding construction environments.

Standards:
– ASTM A29 / A576 (carbon & alloy steels for machined parts)
– ASTM A582 (stainless steel precision bars)
– DIN EN 1992-4 (design of fastening elements in concrete)
– DIN 405 / ISO metric thread standards (thread dimensions)

Grades:
– Carbon steel grades (A36, C45, 1045)
– Alloy steels (heat-treated for higher strength)
– Stainless steel grades A2 / A4

Material Options:
– Carbon steel (plain or galvanized)
– Stainless steel (for corrosion resistance)
– Zinc alloy (for lighter-duty applications)

Diameter Range (Thread Sizes): M10 to M52 (metric) / 3/8″ to 2″ (inch)

Length Range: 40mm to 300mm depending on capacity

Thread Types:
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

Types:
– Standard casting socket (smooth body)
– Casting socket with cross hole
– Casting socket with base plate
– Heavy-duty casting socket with reinforcement ribs

Properties:
– Embedded in precast concrete during casting process
– Provides a strong threaded insert for lifting and fixing
– Transfers high loads safely when used with reinforcement
– Compatible with lifting clutches and threaded accessories

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Stainless steel natural finish
– Epoxy-coated steel

Add-ons:
– Can be supplied with reinforcement bars for embedment
– Compatible with lifting anchors, clutches, and sockets
– Load capacity test certification available

Related products

Quick view

Drop in Anchor Unifix

Add to quote
Drop-In Anchors (Unifix Type) are internally threaded expansion anchors designed for flush installation in solid concrete surfaces. They are quick to set using a setting tool, which expands the anchor body to lock securely in place. Manufactured to ASTM and DIN standards, they are available in carbon steel, galvanized, and stainless steel versions. These anchors provide a strong, reusable threaded socket for bolts and studs in structural and mechanical fixings. They are widely used in construction, HVAC, electrical supports, machinery installation, and heavy-duty frameworks.
Quick view

Fix Bolt Shield YZP & WZP

Add to quote
Fix Bolt Shields (YZP & WZP) are expansion anchors designed for medium to heavy-duty fastening in concrete, brick, and block substrates. They feature a shield that expands when the bolt is tightened, ensuring a strong and reliable grip. Manufactured to ASTM and DIN standards, they are available in yellow zinc plated (YZP) and white zinc plated (WZP) finishes for corrosion resistance. These anchors are versatile and can be supplied with hex, flange, or countersunk head bolts depending on the application. They are widely used in construction, machinery installation, railings, and heavy equipment mounting.
Quick view

Heavy Duty Bolt Anchor

Add to quote
Heavy Duty Bolt Anchors are high-strength expansion fasteners designed for securing structural elements into concrete and masonry. They are manufactured to ASTM and DIN standards, ensuring superior tensile and shear load capacity. These anchors expand and lock into place when torque is applied, providing maximum holding power. They are widely used in structural steel connections, machinery foundations, heavy equipment, and safety-critical installations. Heavy Duty Bolt Anchors provide a robust and reliable solution for demanding industrial and construction applications.
Quick view

Heavy Duty Shield Anchor

Add to quote
Heavy Duty Shield Anchors are robust expansion fasteners designed for reliable medium to heavy-duty fixings in concrete, brick, and block substrates. They use a multi-segment expansion shield that grips tightly when tightened, delivering superior load capacity. Manufactured to ASTM and DIN standards, they are available in hex, countersunk, flange, hook, and eye variants. With galvanized, stainless, or epoxy-coated finishes, they ensure long-lasting durability in harsh environments. They are widely used in structural steel fixings, machinery installations, railings, security barriers, and industrial construction projects.
Quick view

Hollow Bolt

Add to quote
Hollow Bolts are anchoring fasteners designed for fixing into hollow walls such as drywall, gypsum board, or cavity walls. They feature an expanding mechanism that grips the back of the wall to create a secure fastening point. Manufactured to ASTM and DIN standards, they are available in steel, stainless steel, zinc alloy, and nylon types. These bolts provide a strong and reliable solution for mounting fixtures where traditional bolts cannot be used. They are widely used for shelving, cabinets, curtain rails, electrical fittings, and medium-duty wall installations.
Quick view

Hook Eye with Shield

Add to quote
Hook Eye with Shield Anchors are expansion fasteners designed for medium-duty fixings in concrete, brick, and block walls. The expansion shield grips the substrate securely, while the hook or eye end allows attachment of wires, chains, or fixtures. Manufactured to ASTM and DIN standards, they are available in carbon steel, stainless steel, and zinc alloy versions. They provide safe and reliable fastening solutions where suspension or anchoring points are required. These anchors are widely used in construction, electrical works, HVAC installations, and general building applications.
Quick view

Nylon Insulation Anchor

Add to quote
Nylon Insulation Anchors are lightweight fastening systems designed for fixing thermal and acoustic insulation boards to concrete, brick, or block walls. They are manufactured in all-nylon or nylon-with-steel insert types, providing secure holding while minimizing thermal bridging. Conforming to ASTM and DIN standards, they are available in multiple head diameters and lengths for different insulation thicknesses. These anchors are quick to install, corrosion resistant, and maintain long-term fastening integrity. They are widely used in façade insulation systems, HVAC insulation, cladding, and lightweight construction applications.
Quick view

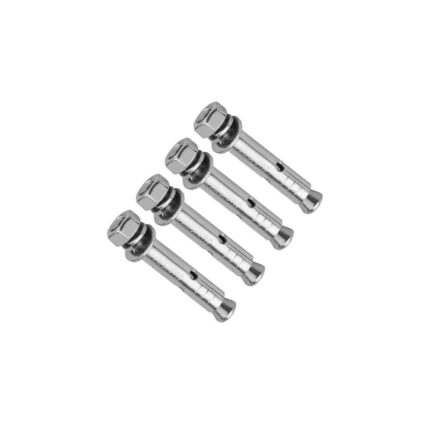

Sleeve Anchor with Hex Bolt
