Channel Clamps – Reliable Support for Strut Channel Systems

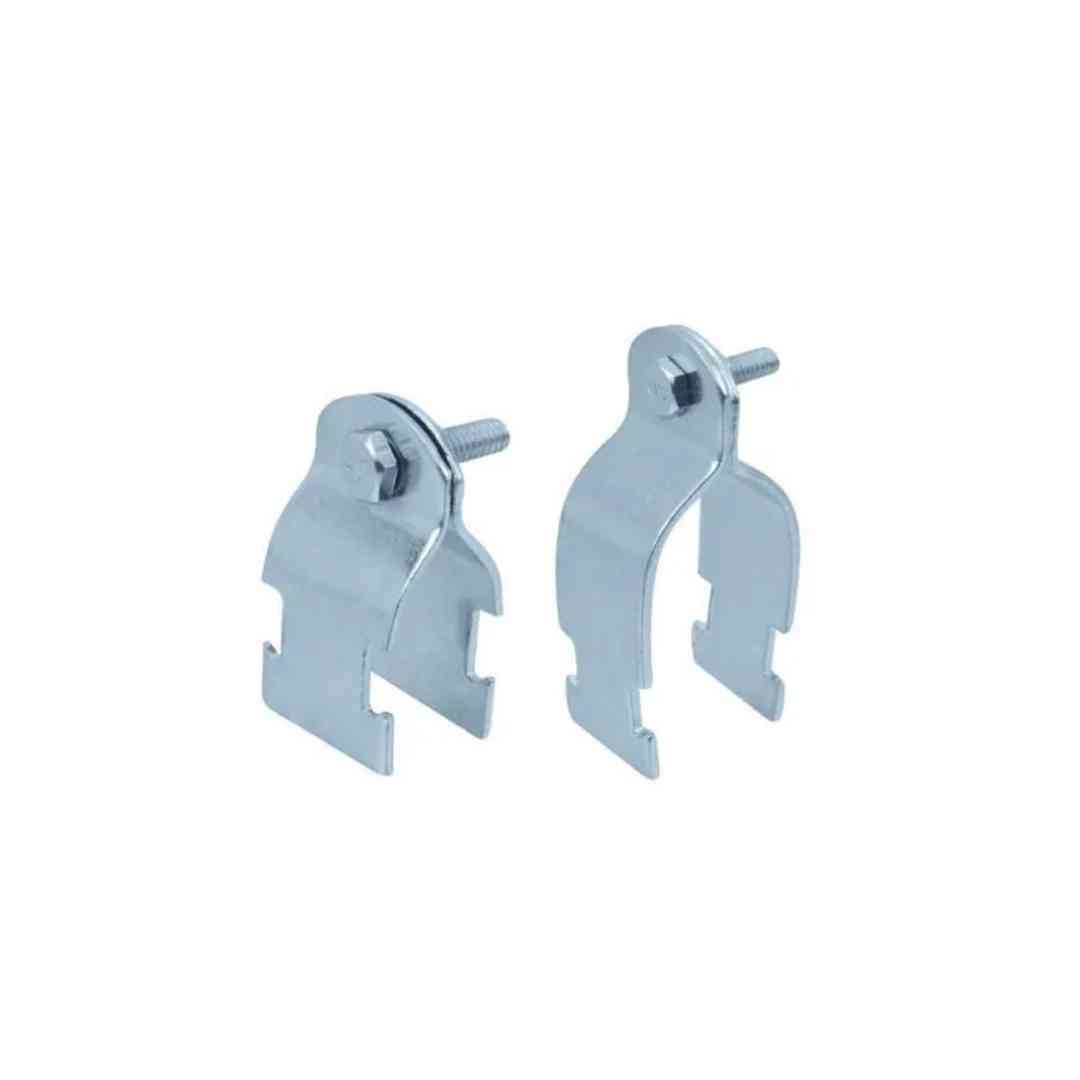

A channel clamp holds a pipe, tube or conduit onto strut channel. The clamp jaws wrap the pipe, and the base engages the channel with a channel (spring) nut and bolt, so the pipe is fixed anywhere along the strut without drilling. MEP contractors run entire buildings on this system: strut on the soffit, channel clamps every metre or so, services locked in line. Unifastener Industries LLC stocks channel clamps in Umm Al Quwain alongside the strut channel, fittings and channel nuts they work with, so the whole support system comes from one order.

Types we supply

• Standard two-part channel clamps for 15 mm to 200 mm pipe OD
• Rubber-lined (EPDM) clamps for vibration and noise isolation on pump lines and chiller pipework
• SS304 clamps for corrosive and external locations
• Channel nuts (short and long spring) and set bolts, sold as sets or separately

One page, one product
A housekeeping note for anyone comparing our catalog: we previously listed this item under two names, channel clamp and strut channel clamp. They are the same product, and this is now the single page for it. Order by the pipe outside diameter, not the nominal bore, and mention the strut profile (41×41 or 41×21) so the channel nut matches.

Standards:
– ASTM A36 / A307 (carbon steel for clamps and fasteners)
– ASTM A123 / A153 (hot-dip galvanizing for fittings)
– DIN 3015 (clamp assemblies reference)
– DIN EN ISO 1461 (hot-dip galvanized coatings)
– MSS-SP-58 (pipe hangers and supports, applicable reference)

Grades:
– Carbon steel: ASTM A36, A307
– Stainless steel: A2 / A4 (AISI 304 / 316)
– DIN / ISO Grades: 4.6, 5.6, 8.8

Material Options:
– Carbon steel (zinc plated or galvanized)
– Stainless steel (for corrosion resistance)
– Plastic/nylon variants (for light-duty installations)

Diameter / Size Range:
– For channel sizes: 21mm, 41mm, and 62mm profiles
– Compatible with pipes Ø 1/2″ to 6″ (DN15 to DN150)

Types:
– Standard channel clamp (U-shaped for strut channels)
– Channel pipe clamp with rubber lining
– Channel beam clamp (for heavier duty anchoring)
– Double channel clamp (for parallel pipe runs)

Properties:
– Designed to fix pipes, conduits, or cables to strut/channel systems
– Provides secure mounting with high load capacity
– Rubber-lined versions reduce vibration and noise
– Suitable for electrical, plumbing, and HVAC applications

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Powder-coated (custom colors)
– Stainless steel natural finish

Add-ons:
– Supplied with bolts, nuts, and washers
– Can be paired with U-bolts, pipe supports, or saddle clamps
– Certification/test reports available on request

FAQ

Q: What is a channel clamp?
A: A two-part clamp that fixes pipe or conduit to strut channel using a channel nut and bolt, positionable anywhere along the strut without drilling.

Q: What is the difference between a channel clamp and a strut clamp?
A: Nothing; they are two names for the same product. This page covers both.

Q: Do you have rubber lined channel clamps?
A: Yes, EPDM-lined clamps for vibration isolation on pump, chiller and equipment pipework.

Q: How do I size a channel clamp?
A: By the pipe outside diameter. Tell us OD and strut profile (41×41 or 41×21) and we supply clamp plus matching channel nut and bolt.
