Strut Post Base

Strut Post Base are structural fittings designed to anchor vertical strut channel posts securely to floors, walls, or ceilings. They are manufactured to ASTM, DIN, and ISO standards and are available in carbon steel, stainless steel, or heavy-duty alloy versions. Post bases distribute loads evenly across the foundation surface, ensuring stability of modular strut assemblies. Available in standard, adjustable, or reinforced designs, they provide flexibility and strength in construction applications. They are widely used in HVAC supports, electrical framing, mechanical systems, industrial piping, and modular structural installations.

Add to quote

Description

Description

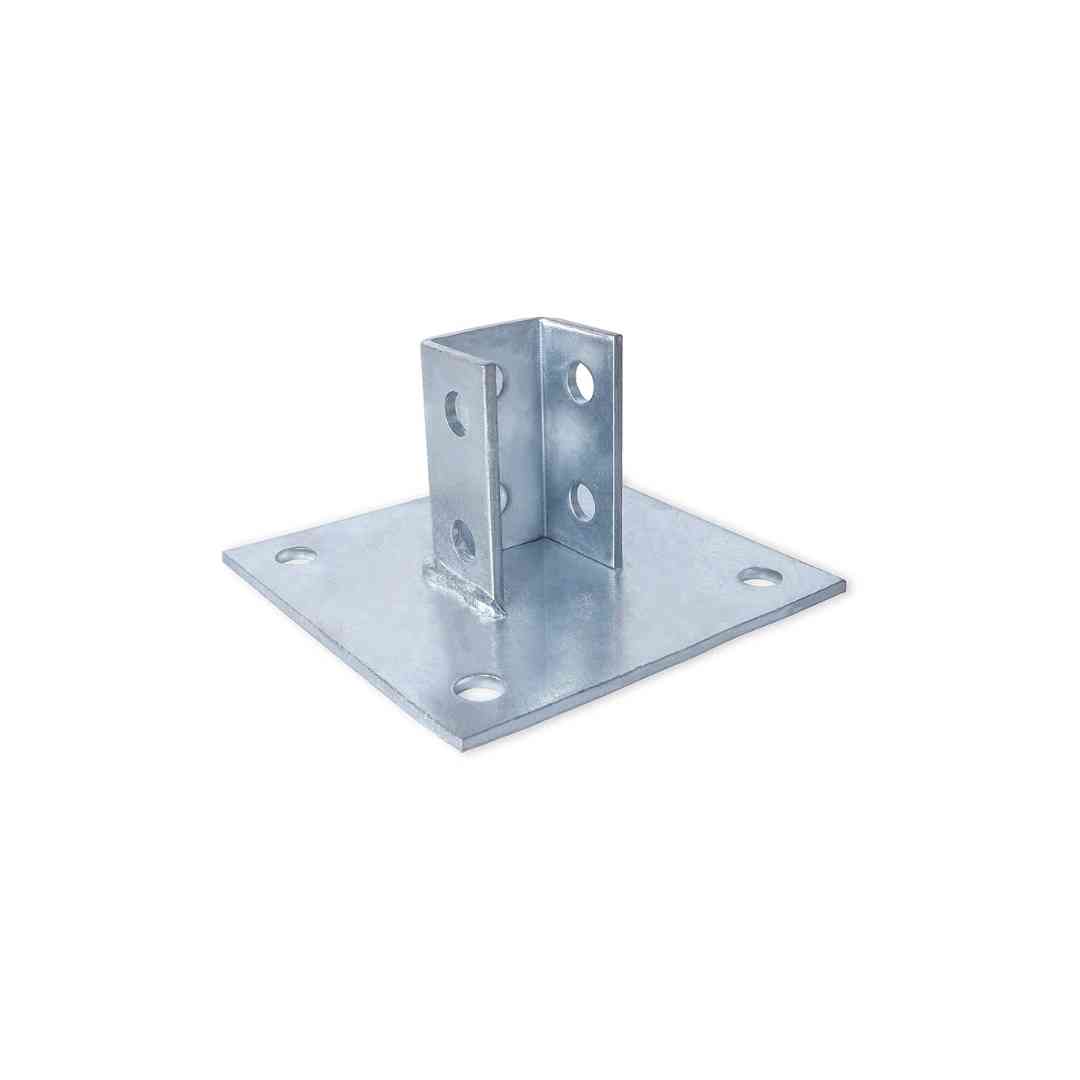

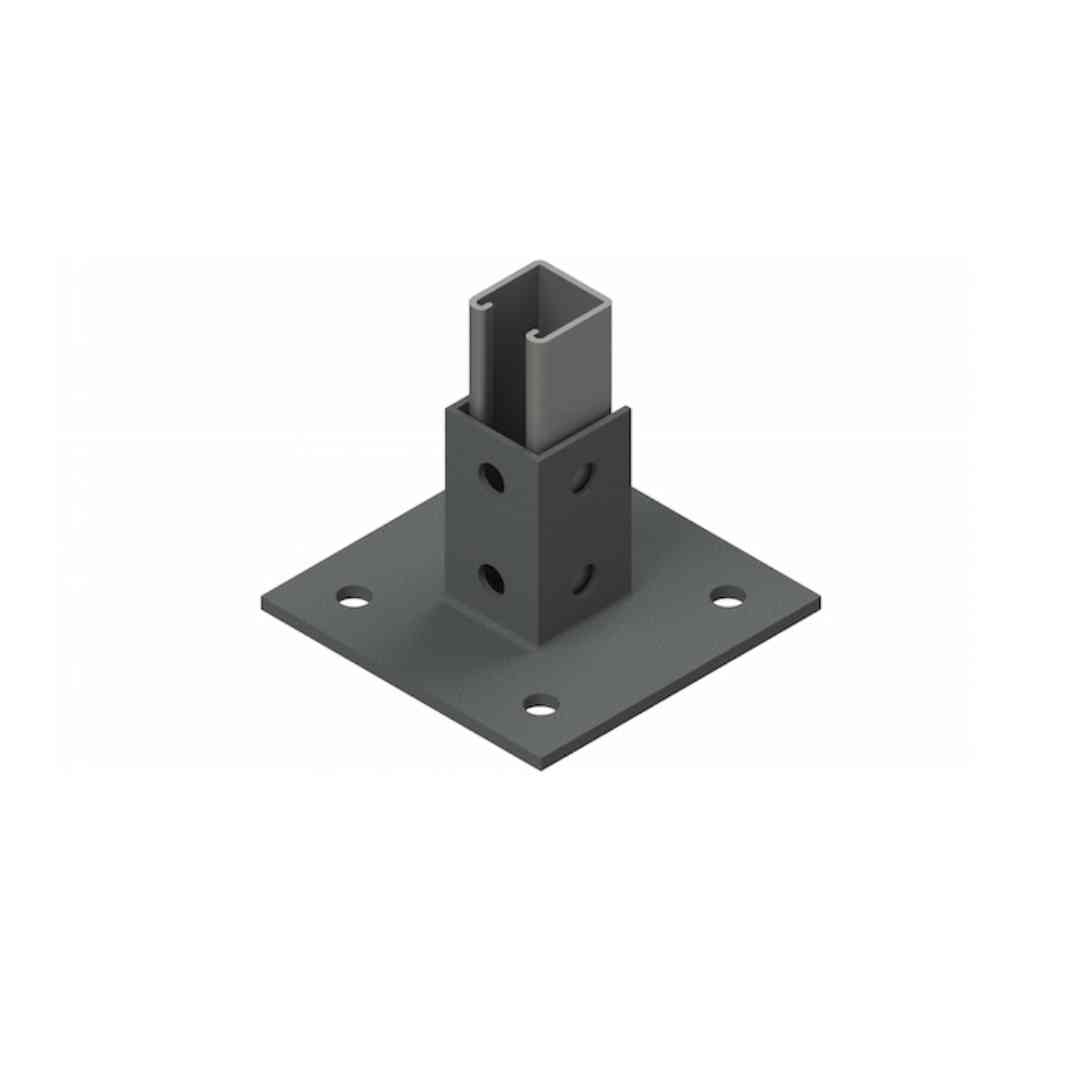

A Strut Post Base is a critical structural fitting used to securely anchor vertical strut channels to concrete floors or steel foundations. It provides a stable base connection that ensures strength, alignment, and long-term durability in industrial framing systems. Manufactured with precision engineering, the Strut Post Base offered by Unifastener Industries LLC is designed to support electrical, mechanical, HVAC, and construction support systems across demanding environments in the UAE and global markets.

Standards:
– ASTM A36 / A307 (carbon steel for plates and fittings)
– ASTM A123 / A153 (hot-dip galvanizing standards)
– DIN EN ISO 1461 (galvanized coating standards)
– DIN 436 (base plates and fittings reference)
– MSS-SP-58 (pipe hangers and supports, relevant reference)

Grades:
– Carbon steel: ASTM A36, A307
– Stainless steel: A2 / A4 (AISI 304 / 316)
– DIN / ISO structural grades: S235, S275, S355

Material Options:
– Carbon steel (zinc plated or galvanized)
– Stainless steel (for corrosive/marine environments)
– Alloy steel (heavy-duty structural applications)

Size Range (Channel Compatibility):
– Compatible with standard strut profiles: 21mm, 41mm, 62mm
– Plate sizes: typically 100 × 100mm to 150 × 150mm
– Thickness: 5mm to 12mm

Types:
– Standard strut post base (flat plate with welded channel insert)
– Adjustable post base (slotted for alignment)
– Heavy-duty reinforced post base
– Stainless steel post base (for outdoor/chemical resistance)

Properties:
– Provides stable anchoring point for strut channels to floors or walls
– Distributes load evenly across concrete or structural base
– Allows secure attachment of vertical posts in framing systems
– Easy to install and reusable in modular assemblies

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Powder-coated (custom colors available)
– Stainless steel natural finish

Add-ons:
– Can be supplied with anchor bolts and washers
– Available with slotted holes for flexibility in installation
– Certification/load capacity test reports available on request
