Strut Beam Clamp
Strut Beam Clamp

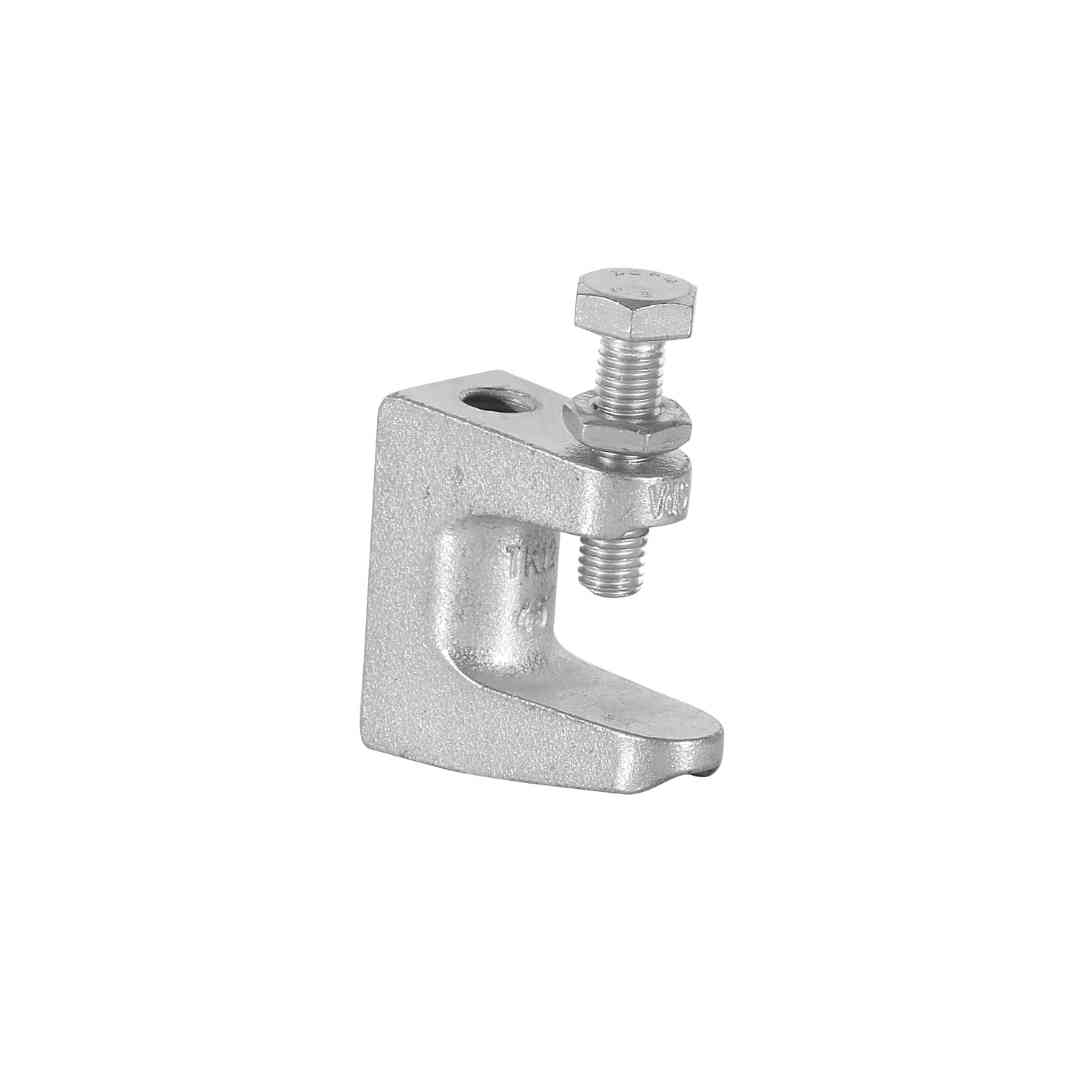

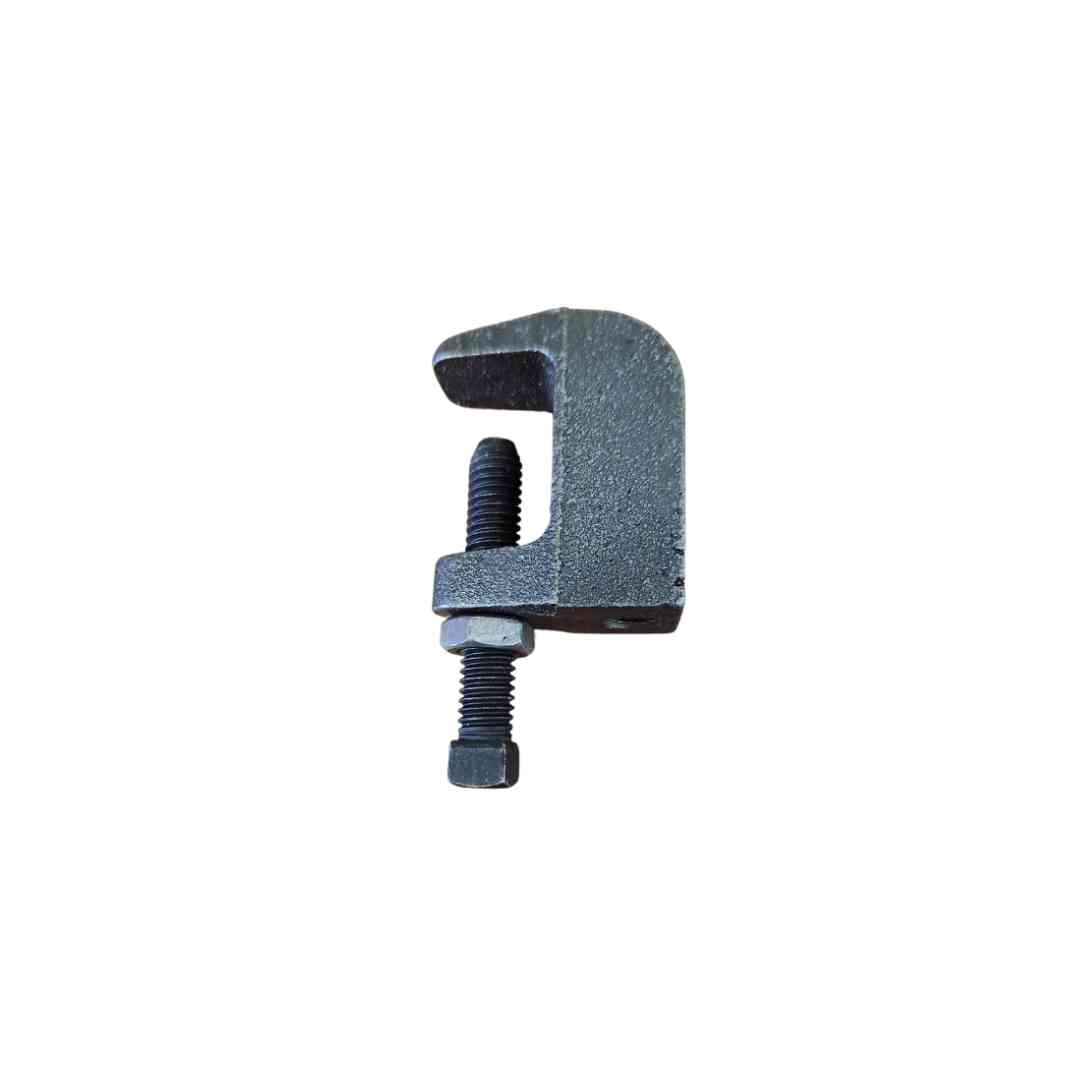

Beam Clamp

Beam Clamp are structural fastening devices designed to attach rods, pipes, or conduits to steel beams without the need for welding or drilling. They are manufactured to ASTM, DIN, and ISO standards in forged carbon steel, stainless steel, or ductile iron materials. Beam clamp provide quick, safe, and strong anchoring for piping, HVAC systems, scaffolding, and industrial supports. Hot-dip galvanized or stainless steel finishes ensure durability and corrosion resistance for indoor and outdoor use. They are widely used in construction, mechanical installations, oil & gas, and heavy industrial applications.

Add to quote
Category: Tags: ,
Description

Premium Quality Beam Clamp Supplier in Dubai, UAE

Unifastener Industries LLC is a leading supplier and manufacturer of premium-quality Beam Clamp in Dubai, UAE. Designed to provide strong and secure attachment points on steel beams and structural members, Beam Clamp offer an efficient solution for suspending pipes, conduits, cable trays, HVAC systems, and mechanical equipment without the need for drilling or welding. Beam Clamp are widely used in commercial, industrial, and infrastructure projects where quick installation and structural integrity are essential. Their robust design ensures reliable load distribution while protecting structural steel members from damage. Manufactured from high-grade steel and finished with corrosion-resistant coatings, Beam Clamp deliver exceptional strength, durability, and long-term performance in demanding environments.

Standards:
– ASTM A36 / A307 (carbon steel for clamps and fasteners)
– ASTM A123 / A153 (hot-dip galvanizing for fittings)
– DIN 5299 (forged steel clamp fittings reference)
– DIN EN 74 (clamps and scaffolding fittings reference)
– ISO 1461 (hot-dip galvanizing for structural hardware)

Grades:
– Carbon steel: ASTM A36, A307
– Alloy steel (quenched & tempered for high load)
– Stainless steel: A2 / A4 (AISI 304 / 316)
– DIN / ISO mechanical grades: 4.6, 5.6, 8.8, 10.9

Material Options:
– Forged carbon steel (for structural strength)
– Stainless steel (for corrosive/marine applications)
– Ductile/malleable iron (general-duty)

Size Range:
– Flange thickness compatibility: 5mm to 40mm
– Pipe/tube compatibility: 1/2″ to 12″

Types:
– Standard beam clamp (U-bolt and saddle type)
– Forged steel beam clamp (heavy-duty)
– Adjustable beam clamp (for varying flange widths)
– Swivel beam clamp (for angular connections)

Properties:
– Designed to attach piping, conduits, and hanger rods to structural beams without drilling/welding
– Provides secure load-bearing connection for vertical and horizontal support
– Adjustable types allow flexible installation on different beam flanges
– Suitable for construction, HVAC, piping, and scaffolding systems

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Powder-coated (custom finishes)
– Stainless steel natural finish

Add-ons:
– Can be supplied with hanger rods, bolts, and nuts
– Compatible with strut channels, scaffolding, and piping supports
– Certification/load capacity test reports available on request

Related products

Galvanized channel clamp fixing pipe to strut channel – UAE
Quick view

Channel Clamp – Supplier in Dubai UAE

Add to quote
Channel Clamps are fastening devices used to secure pipes, conduits, and equipment onto strut channel framing systems. They provide quick and secure installation while allowing flexibility in alignment and positioning. Manufactured to ASTM, DIN, and ISO standards, channel clamps are available in carbon steel, stainless steel, and plastic versions. Rubber-lined variants offer noise and vibration reduction, making them ideal for mechanical and electrical services. They are widely used in plumbing, HVAC, fire protection, industrial piping, and cable management installations.
Galvanized clevis hanger suspending pipe from threaded rod – UAE
Quick view

Clevis Hanger / Clevis Clamp – Supplier in Dubai UAE

Add to quote
Clevis Clamps are pipe support fittings designed to suspend and secure piping systems in mechanical, plumbing, and industrial applications. The clevis design features a yoke-shaped body with a pin or bolt that allows limited movement to accommodate thermal expansion. Manufactured to ASTM, DIN, and MSS standards, they are available in carbon steel, stainless steel, and heavy-duty alloy steel. Hot-dip galvanized or stainless finishes provide excellent durability and corrosion resistance in demanding environments. They are widely used in HVAC systems, process plants, plumbing networks, and industrial piping installations.
Quick view

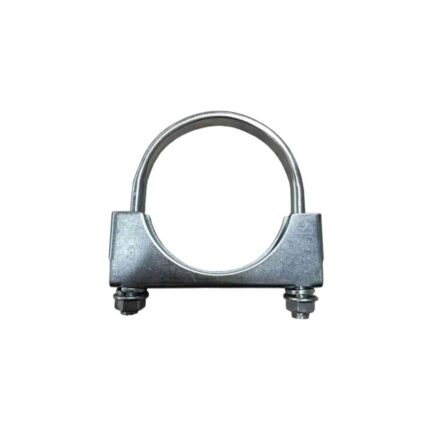

Muffler or Exhaust Clamp

Add to quote
Muffler or Exhaust Clamps are fastening devices designed to secure and seal exhaust pipes, mufflers, and catalytic converters in automotive and industrial systems. They are manufactured to ASTM, DIN, and ISO standards using carbon steel, stainless steel, or aluminized steel. Available in U-bolt, band, V-band, and heavy-duty variants, they provide strong grip, vibration resistance, and leak-free performance. With zinc plating, galvanizing, or stainless finishes, these clamps are resistant to heat, corrosion, and road conditions. They are widely used in automotive exhaust systems, heavy machinery, trucks, buses, and industrial piping requiring heat-resistant clamping solutions.
Quick view

PVC Clamp

Add to quote
PVC Clamps are lightweight and durable fastening components used to secure PVC and CPVC pipes in plumbing, electrical, and mechanical installations. Manufactured from rigid PVC materials to ASTM and DIN standards, they provide corrosion resistance and non-conductive properties. Available in standard, double, snap-fit, and adjustable types, PVC clamps ensure quick and secure installation. They are resistant to moisture, chemicals, and UV when made from stabilized grades. They are widely used in water supply, electrical conduit systems, HVAC piping, and chemical installations.
Quick view

PVC End Cap for Strut Channel

Add to quote
PVC End Cap for Strut Channels are protective fittings designed to close the open ends of strut profiles. They are manufactured from durable PVC materials to ASTM, DIN, and ISO standards, ensuring strength and reliability. These caps provide edge protection, prevent dirt ingress, and offer a safe, clean finish to installations. Available in standard, reinforced, and colored variants, they are suitable for both indoor and outdoor applications. They are widely used in HVAC, electrical supports, mechanical framing, cable management, and modular strut channel systems.
Quick view

Strut Beam Clamp

Add to quote
Strut Beam Clamp are fastening components used to attach strut channel support systems securely to structural beams without drilling or welding. They are manufactured to ASTM, DIN, and ISO standards in carbon steel, stainless steel, and malleable iron. These clamps provide strong anchoring for strut-based assemblies carrying pipes, conduits, or cable trays. Available in fixed, adjustable, swivel, and heavy-duty types, they ensure flexibility and load-bearing reliability. They are widely used in construction, HVAC systems, fire protection, industrial piping, and electrical installations.
Quick view

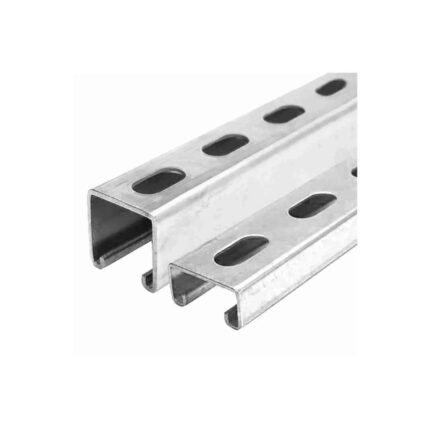

Strut Channel
