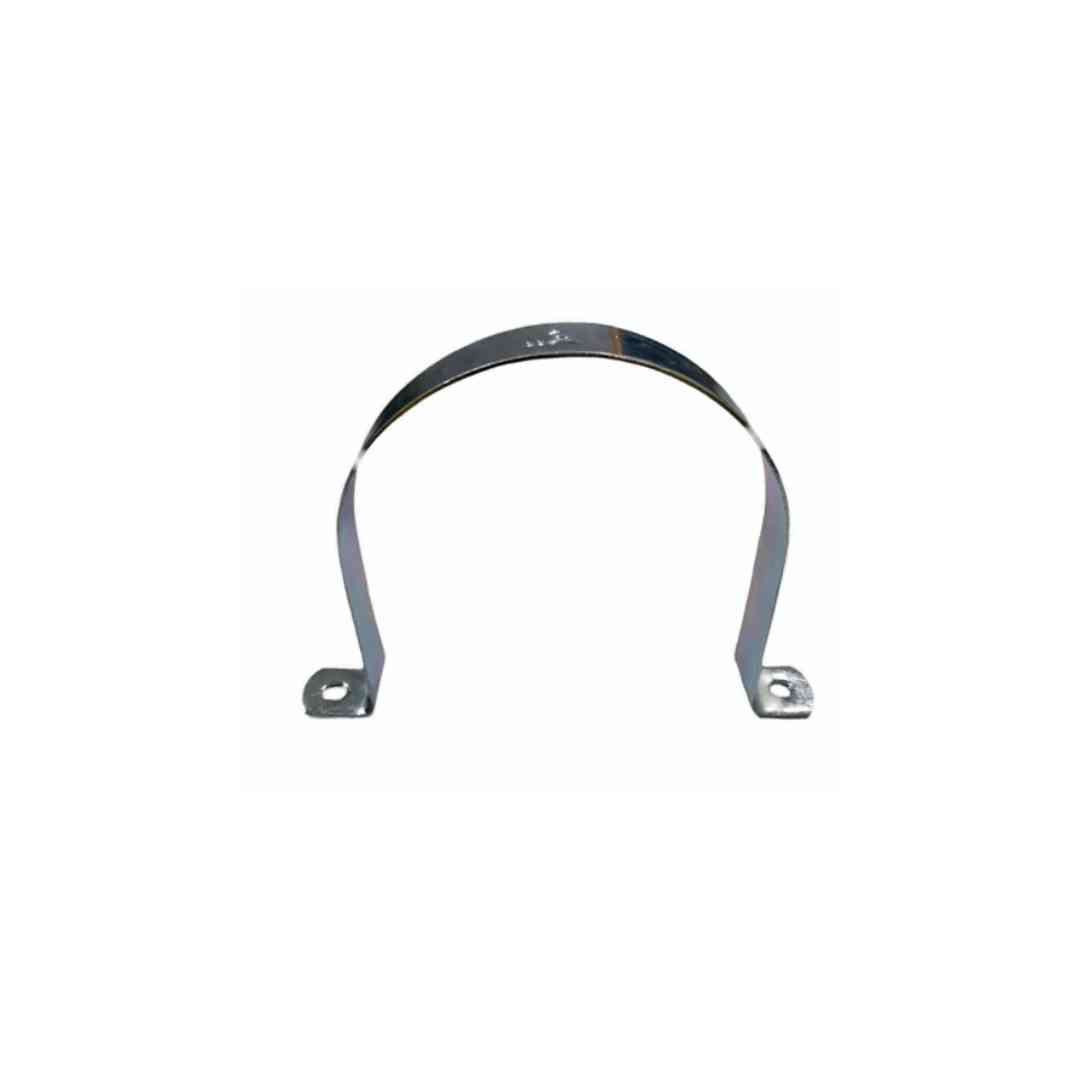

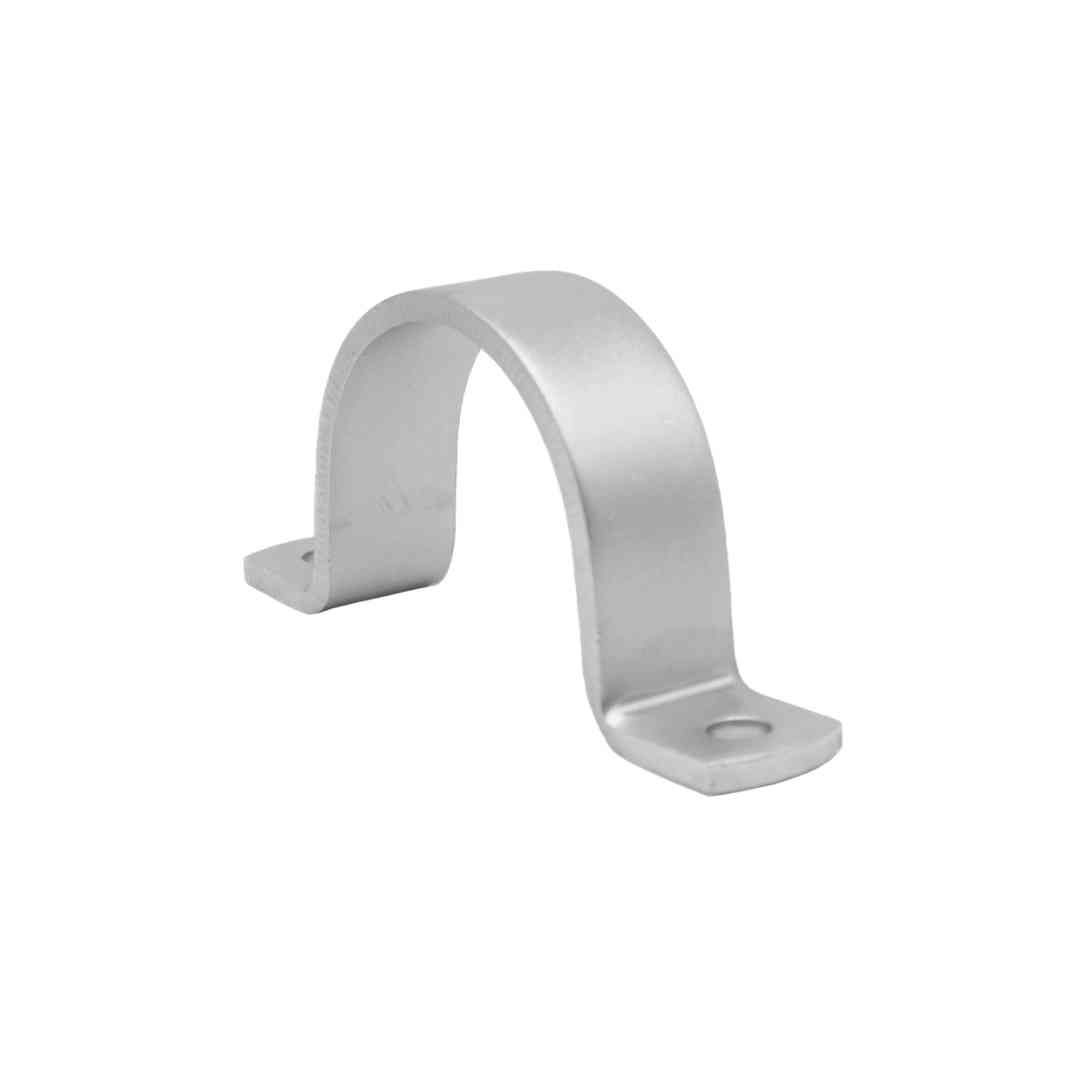

U Saddle Heavy Duty

U Saddle Heavy Duty Clamps are industrial-grade fastening devices designed to secure large pipes, tubes, or wire ropes under heavy loads. They are manufactured from forged carbon steel, stainless steel, or ductile iron to ASTM, DIN, and ISO standards. The reinforced saddle plate provides maximum grip, load stability, and resistance to pull-out forces. Available in galvanized, stainless steel, or powder-coated finishes, they offer durability in harsh outdoor and industrial environments. They are widely used in construction, oil & gas, marine, heavy piping, and structural support applications.

Add to quote
Category: Tags: ,
Description

When standard pipe supports are not enough, Heavy Duty U Saddle Clamps provide the extra strength needed to secure larger pipes, conduits, and mechanical systems. Designed to withstand higher loads and harsh operating conditions, these clamps ensure reliable support in industrial and commercial environments. Manufactured with precision and durability in mind, our Heavy Duty U Saddle Clamps deliver exceptional holding power while maintaining pipe alignment and system stability.

Standards:
– ASTM A36 / A307 (carbon steel for clamps and bolts)
– ASTM A123 / A153 (hot-dip galvanizing standards)
– DIN 741 (wire rope clamps and U-bolt style clamps)
– DIN 3567 (pipe clamps and supports)
– ISO 1461 (galvanized coating standards)

Grades:
– Carbon steel: ASTM A36, A307
– Alloy steel (quenched & tempered for heavy loads)
– Stainless steel A2 / A4 (marine and corrosive environments)
– DIN / ISO mechanical grades: 4.6, 5.6, 8.8, 10.9

Material Options:
– Forged carbon steel (for maximum strength)
– Stainless steel (AISI 304 / 316)
– Ductile/malleable iron (for industrial applications)

Diameter Range (Pipe/Wire Compatibility): 1/2″ to 24″ (DN15 to DN600)

Types:
– Standard heavy-duty U saddle clamp
– Rubber-lined heavy-duty saddle clamp (anti-vibration)
– Galvanized U saddle clamp (outdoor structural use)
– Extra-wide base saddle clamp (for enhanced load distribution)

Properties:
– Designed to secure and support large diameter or heavy-duty pipes, tubes, and wire ropes
– Saddle plate provides extra grip and load-bearing stability
– Suitable for high-stress, vibration-prone, and outdoor applications
– Reusable and engineered for industrial-grade performance

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Powder-coated (custom finishes)
– Stainless steel natural finish

Add-ons:
– Supplied with heavy-duty nuts, bolts, and washers
– Optional rubber/EPDM lining for noise and vibration reduction
– Certification/load capacity test reports available on request
