Double Barb Arm

Double Barb Arms are heavy-duty fence extensions designed to hold multiple strands of barbed wire above chain link or perimeter fences. They are manufactured to ASTM, DIN, and ISO standards using carbon steel, stainless steel, or aluminum. Available in V-shaped and Y-shaped designs, they provide maximum wire coverage and enhance perimeter security. With galvanized, powder-coated, or stainless steel finishes, they offer excellent durability and long-term corrosion resistance. They are widely used in industrial fencing, high-security perimeters, agricultural enclosures, and military or correctional facilities.

Add to quote

Description

Description

Premium Quality Double Barb Arm Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Double Barb Arms in Dubai, UAE. The company specializes in fencing hardware, security accessories, and industrial fastening solutions designed for perimeter security systems, industrial compounds, warehouses, commercial facilities, and infrastructure projects. Double Barb Arms are specially designed fencing accessories used to support multiple strands of barbed wire or razor wire on both sides of a fence line. These arms provide enhanced perimeter protection, increased security coverage, and a stronger deterrent against unauthorized access, making them ideal for high-security environments. Manufactured using high-grade materials and advanced production standards, Double Barb Arms offer excellent strength, corrosion resistance, weather durability, and long-lasting performance in demanding outdoor conditions.

Standards:
– ASTM A36 / A307 (carbon steel for brackets and fittings)
– ASTM A123 / A153 (hot-dip galvanizing for outdoor use)
– DIN EN ISO 1461 (galvanized coating standards)
– DIN 2443 (pipe and fencing hardware references)
– ISO 9001 (quality compliance reference)

Grades:
– Carbon steel: ASTM A36, A307
– Stainless steel: A2 / A4 (AISI 304 / 316 for corrosion resistance)
– Aluminum (light-duty or decorative fencing)

Material Options:
– Carbon steel (galvanized, zinc plated, or powder-coated)
– Stainless steel (marine-grade for corrosive conditions)
– Aluminum (lightweight applications)

Size Range (Compatibility):
– Designed for posts Ø 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″ and larger
– Arm length: typically 450mm to 600mm per side
– Wire holding capacity: 6–9 strands of barbed wire (3–4 each side)

Types:

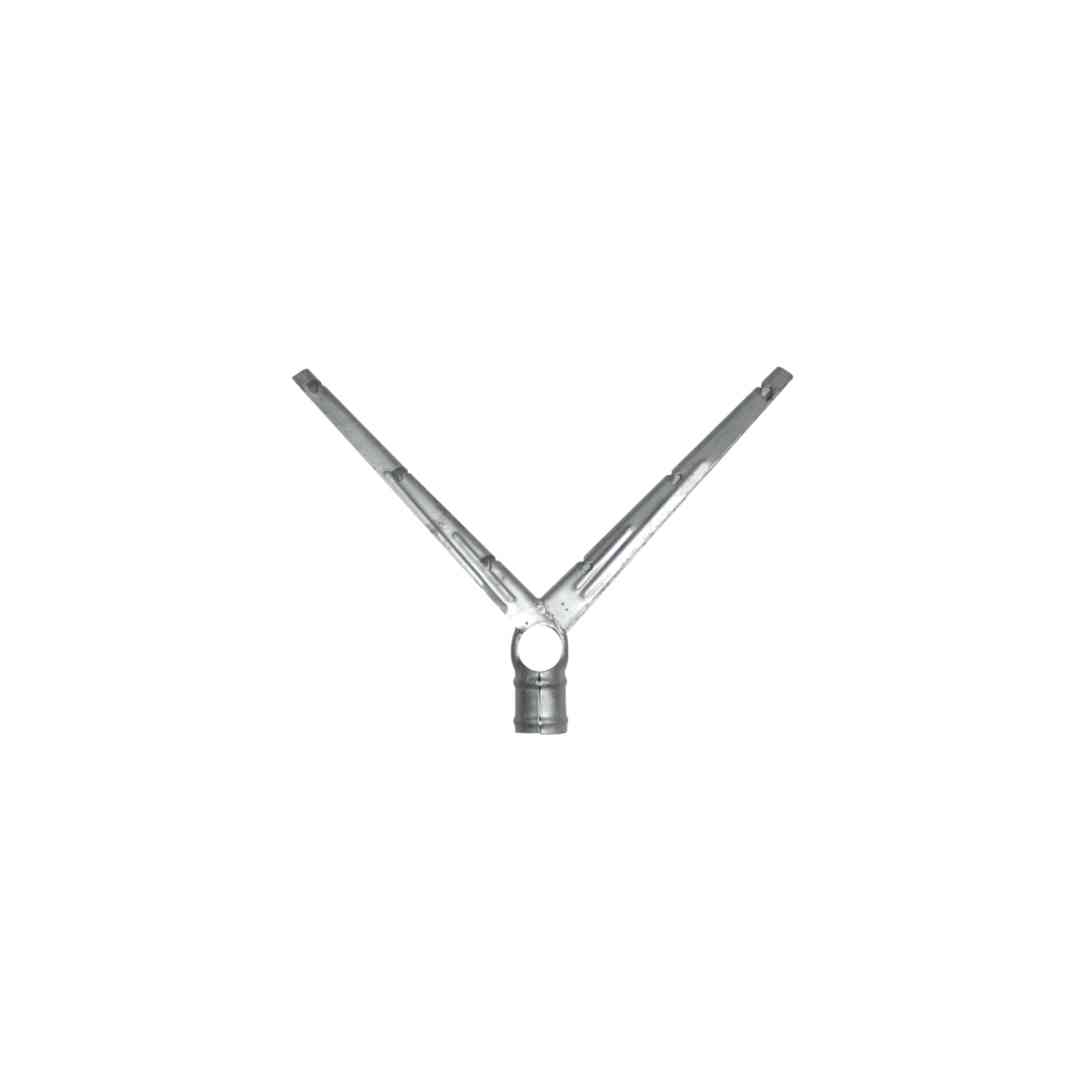

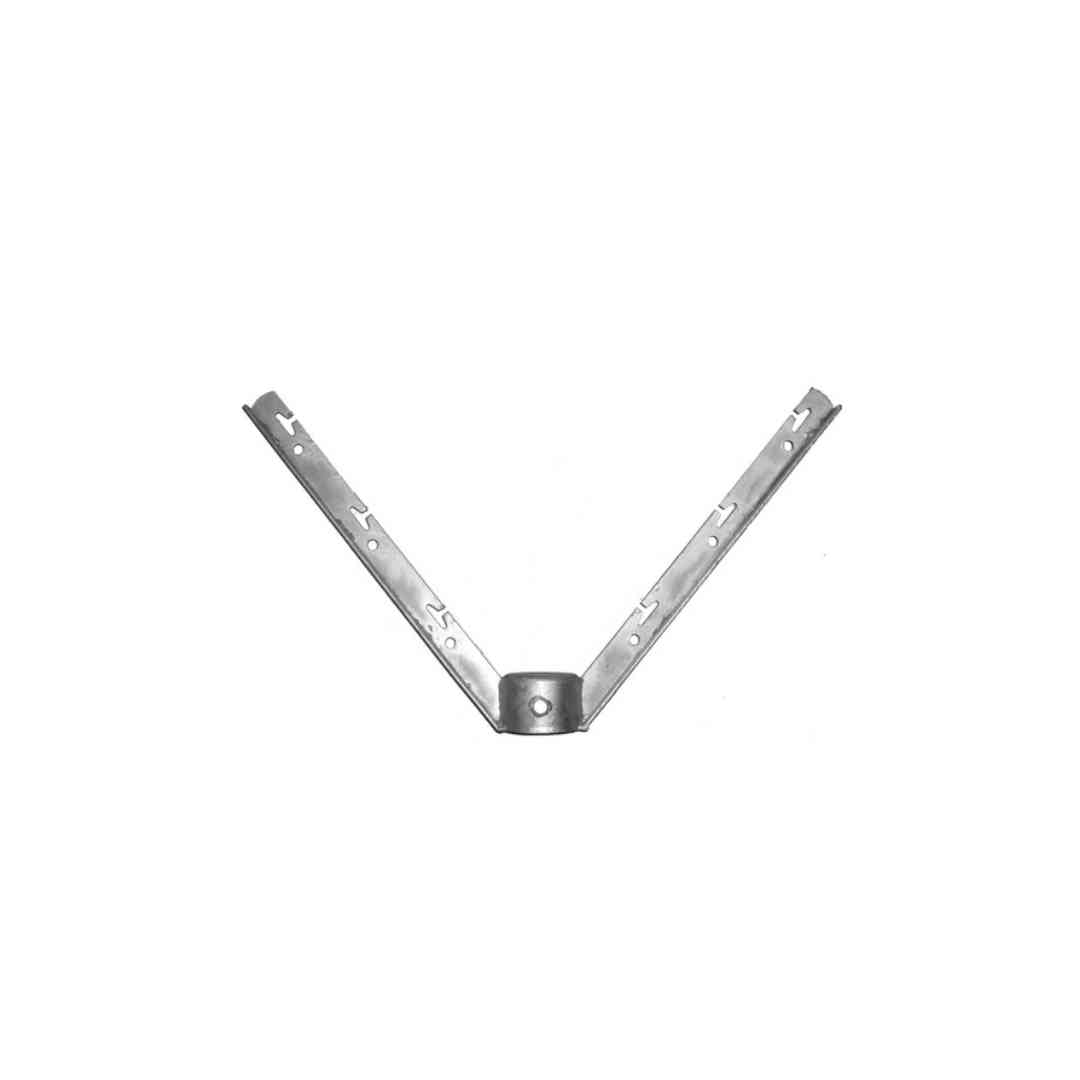

– V-shaped double barb arm

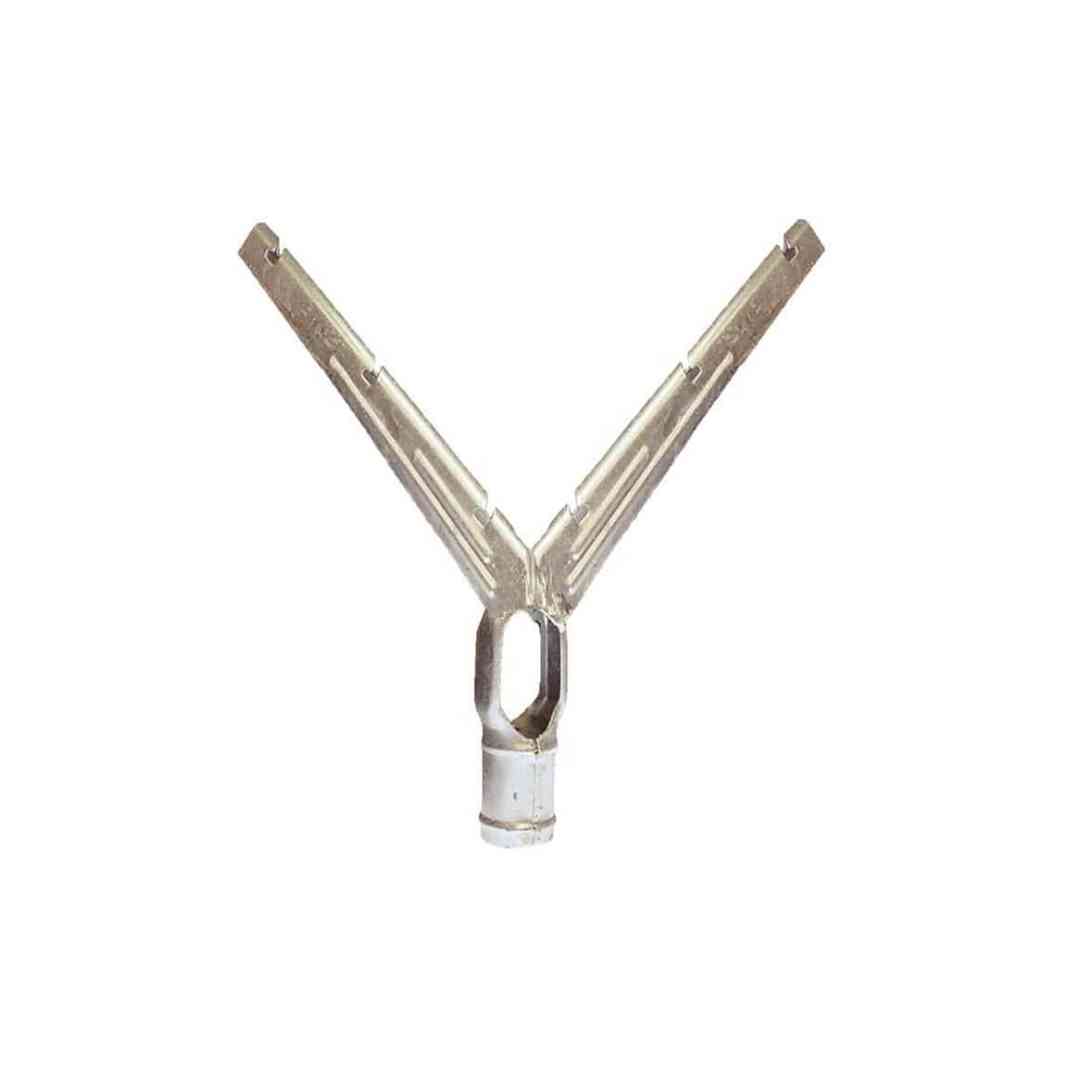

– Y-shaped double barb arm
– Flat-plate double barb arm (bolt-on)

Properties:
– Extends fence posts to support multiple strands of barbed wire
– V and Y designs increase security by spreading wire coverage
– Provides higher intrusion resistance compared to single arms
– Heavy-duty design resists wire tension and weather stress

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Powder-coated (RAL colors such as green/black for fencing systems)
– Stainless steel polished/brushed finish

Add-ons:
– Can be supplied with U-bolts, carriage bolts, nuts, and washers
– Available with pre-drilled holes for quick barbed wire installation
– Certification/load capacity test reports available on request
