Fencing Coupler – Supplier in Dubai UAE

Premium Quality Fencing Coupler Supplier in Dubai, UAE

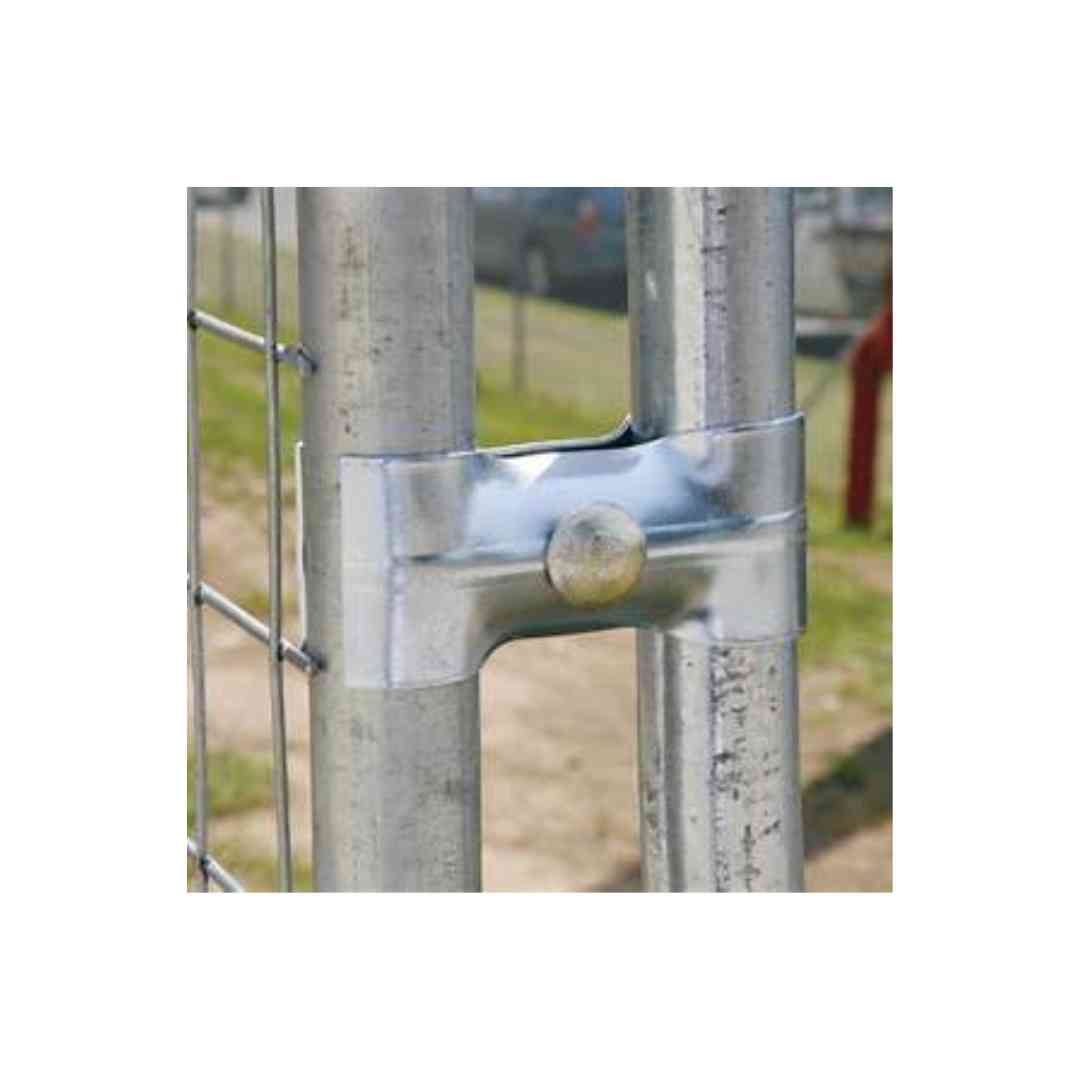

A fencing coupler joins two fence tubes or panel frames together and clamps them tight with a single bolt. Temporary site fencing goes up and comes down on couplers; permanent tube fencing uses them wherever rails meet posts at fixed or variable angles. The right coupler makes a fence line rigid without a single weld, and the whole thing unbolts when the project moves. Unifastener Industries LLC supplies fencing couplers from stock in Umm Al Quwain, in pressed and forged steel, alongside the scaffolding coupler range they are closely related to.

Types we supply

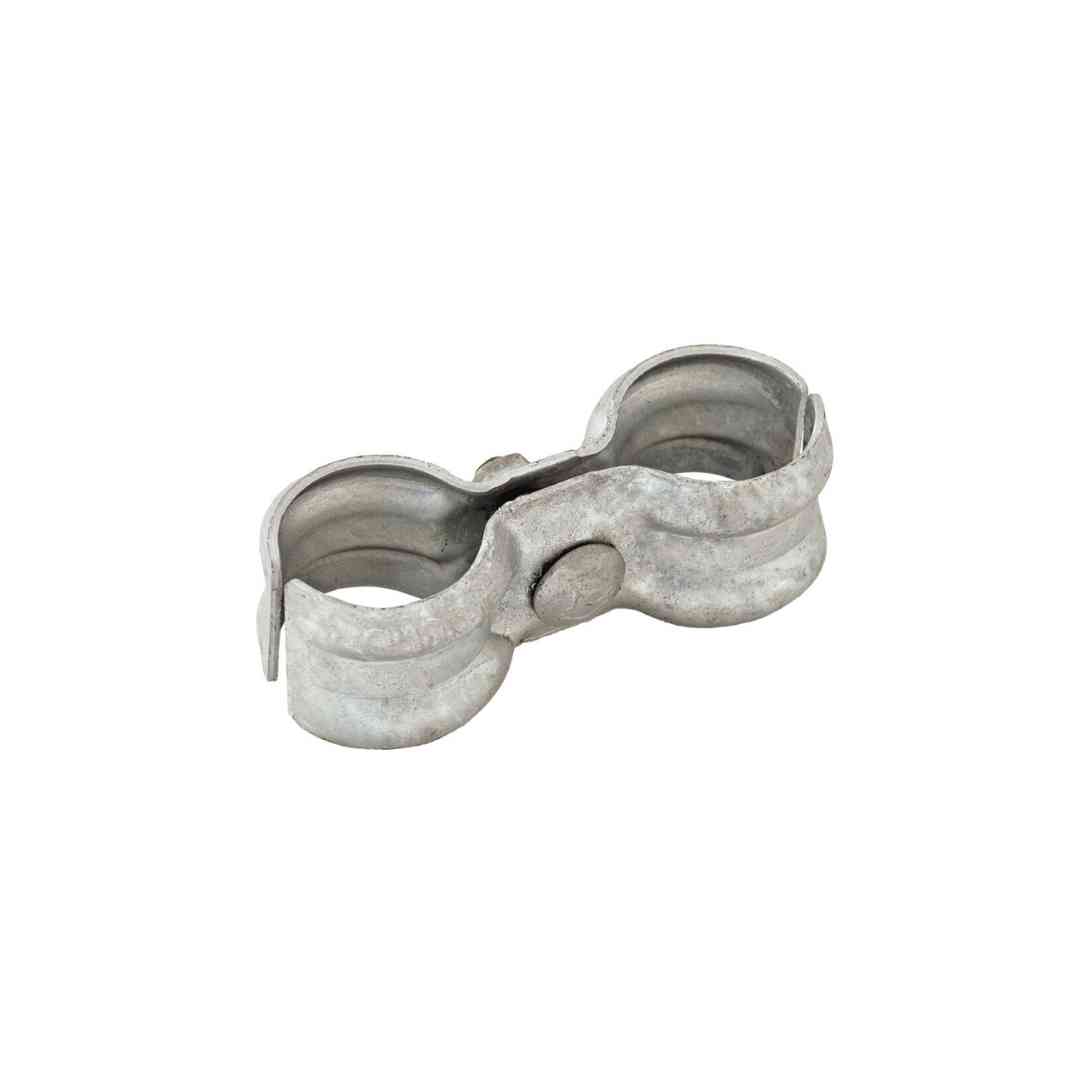

• Fixed (90 degree) couplers for rail-to-post connections
• Swivel couplers for raked or variable-angle joints
• Heavy-duty forged couplers for gate frames and strain sections

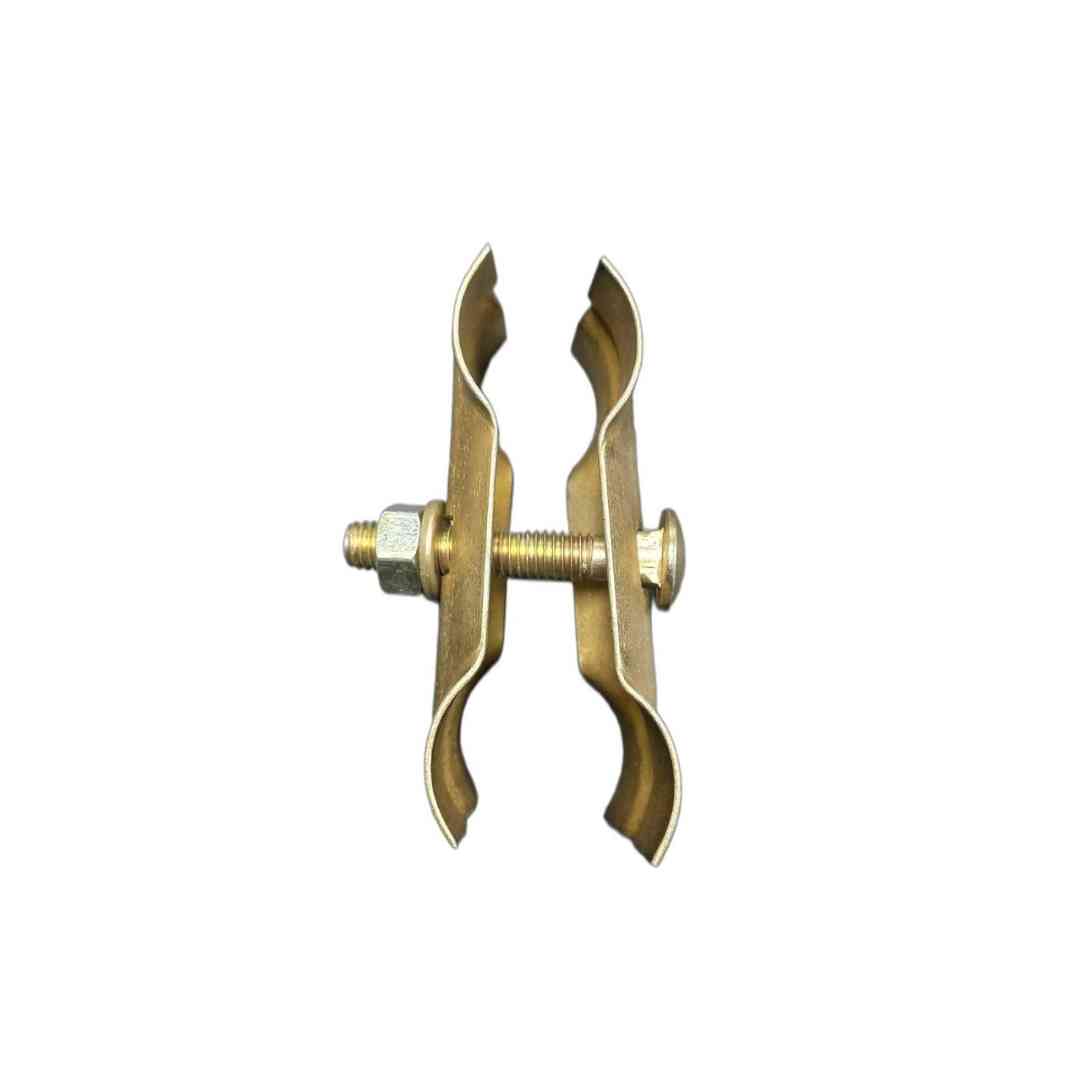

• Panel-to-panel clamps for temporary event and construction fencing

Choosing a coupler
Match the coupler to the tube OD on both sides of the joint; the common UAE sizes are 42.4 mm and 48.3 mm. Pressed couplers cover normal fencing loads at the lowest cost. Go forged where the joint takes repeated load, gates being the obvious case. If your job mixes fencing and scaffolding tube, tell us both sizes and we will supply from one range so every joint uses the same bolt size, which crews appreciate more than they say.

Standards:
– ASTM A36 / A307 (carbon steel for general fasteners)
– ASTM A123 / A153 (zinc/hot-dip galvanizing standards)
– DIN EN 74 (scaffolding & coupler standards, used as reference)
– ISO 1461 (galvanized coatings for outdoor durability)

Grades:
– Carbon steel grades: A36, A307
– Stainless steel: A2 / A4 (for corrosion resistance)
– DIN / ISO Grades: 4.6, 5.6

Material Options:
– Forged steel
– Pressed steel
– Stainless steel

Tube Compatibility:
– Standard fence tubes Ø 34mm, Ø 42mm, Ø 48.3mm
– Custom sizes available on request

Types:
– Standard fencing coupler (fixed)
– Swivel fencing coupler (adjustable angle)
– Heavy-duty fencing coupler (for reinforced fence panels)

Properties:
– Designed to connect fence panels, tubes, and posts securely
– Provides rigidity and stability to temporary or permanent fencing systems
– Quick to install and remove, ideal for site safety and demarcation
– Reusable and durable under outdoor conditions

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Powder-coated (black or custom colors)
– Stainless steel finish

Add-ons:
– Can be supplied with bolts, nuts, and washers
– Compatible with standard scaffolding/fencing tubes
– Certification/test reports available on request

FAQ

Q: What is a fencing coupler?
A: A bolted clamp that joins two fence tubes or panels, making rigid joints without welding. It unbolts for reuse, which is why temporary fencing is built on couplers.

Q: Fixed or swivel coupler?
A: Fixed for 90 degree rail-to-post joints; swivel wherever the angle is not 90 degrees, such as raked ground or diagonal braces.

Q: What tube sizes do they fit?
A: Stock couplers fit 42.4 mm and 48.3 mm OD tube. Mixed-size couplers to join the two are available.

Q: Are your couplers reusable?
A: Yes. Galvanized pressed and forged couplers are designed for repeated assembly on temporary fencing.
