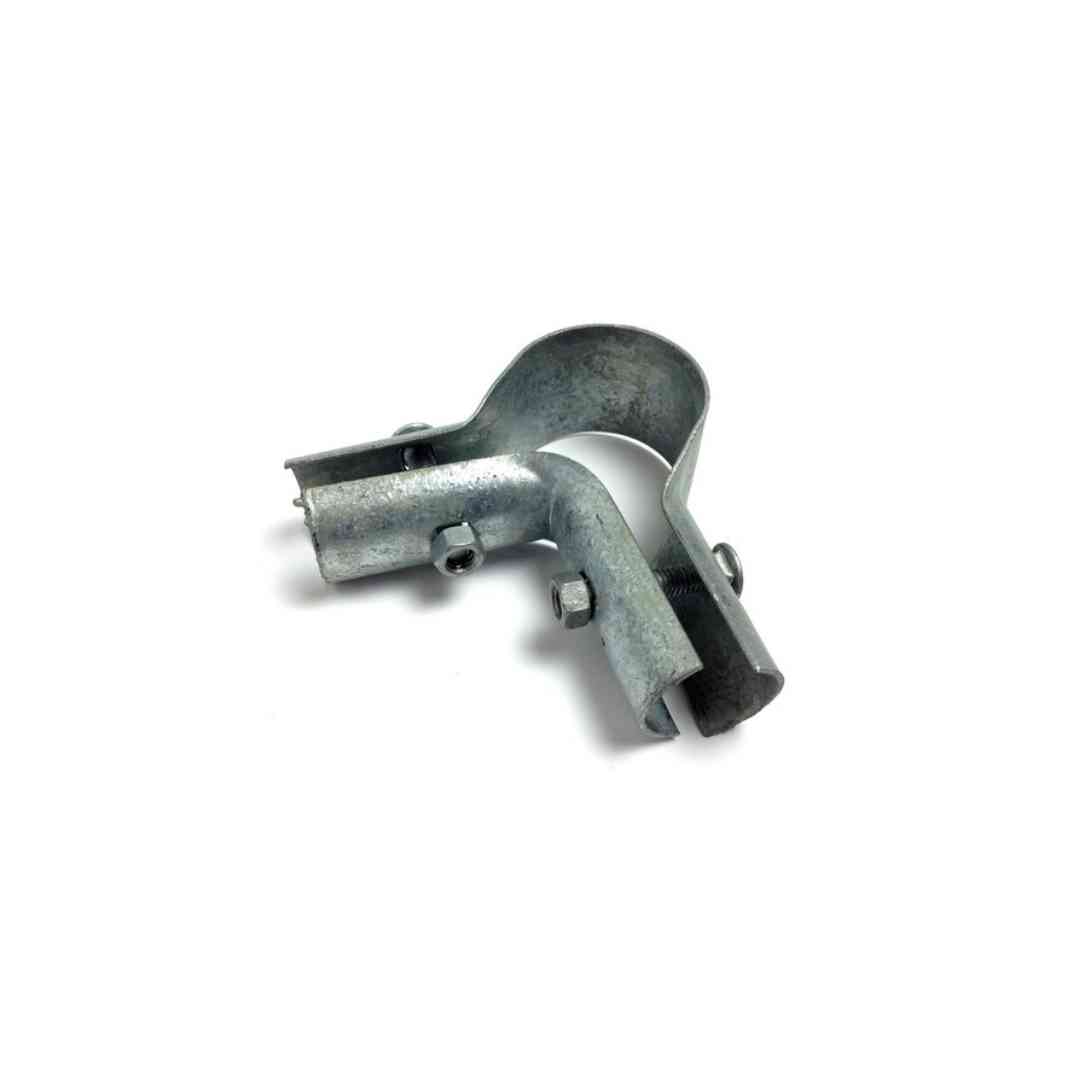

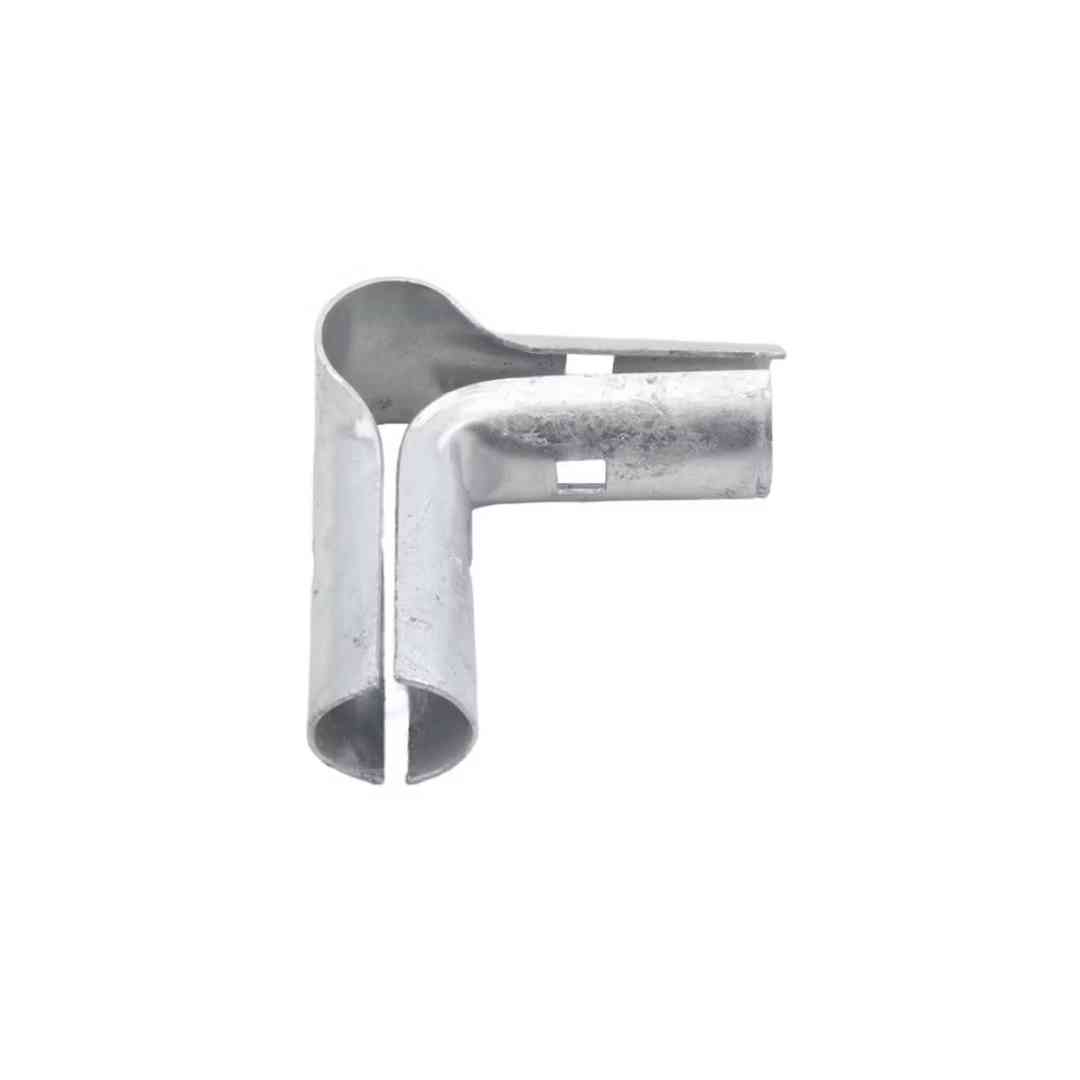

Corner Rail Clamp

Corner Rail Clamps are structural fittings designed to connect horizontal rails to terminal posts at 90° corners in fencing and railing systems. They are manufactured to ASTM, DIN, and ISO standards in carbon steel, stainless steel, or aluminum materials. These clamps eliminate the need for welding, allowing quick and secure assembly. Available in galvanized, stainless steel, or powder-coated finishes, they provide long-lasting durability and resistance to corrosion. They are widely used in chain link fencing, industrial enclosures, guardrails, and structural railing frameworks.

Add to quote
Category: Tags: ,
Description

Premium Quality Corner Rail Clamp Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Corner Rail Clamps in Dubai, UAE. The company specializes in industrial hardware, railing accessories, and fastening solutions designed for handrail systems, guardrails, safety barriers, industrial platforms, walkways, and architectural projects. Corner Rail Clamps are specially designed connection components used to securely join railings or pipes at corner angles. These clamps provide strong support, precise alignment, and structural stability while ensuring a clean and professional finish for railing systems. They are ideal for creating secure corner transitions in both indoor and outdoor installations. Manufactured using high-grade materials and advanced production standards, Corner Rail Clamps offer excellent strength, corrosion resistance, durability, and long-lasting performance in demanding environments.


Standards:
– ASTM A36 / A307 (carbon steel for clamp fittings)
– ASTM A123 / A153 (hot-dip galvanizing for outdoor use)
– DIN EN ISO 1461 (galvanized coating standards)
– DIN 2443 (pipe and clamp references)
– ISO 9001 (quality compliance reference)

Grades:
– Carbon steel: ASTM A36, A307
– Stainless steel: A2 / A4 (AISI 304 / 316)
– Ductile/malleable iron (for heavy-duty applications)

Material Options:
– Carbon steel (zinc plated, galvanized, or powder-coated)
– Stainless steel (marine-grade and outdoor installations)
– Aluminum (light-duty or decorative railing systems)

Size Range (Pipe Compatibility):
– Suitable for pipe OD: 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, and 3-1/2″
– Custom sizing available for special fence systems

Types:
– Standard corner rail clamp (two-piece design)
– Heavy-duty reinforced corner clamp
– Stainless steel corner rail clamp

Properties:
– Connects horizontal rails securely to posts at 90° angles
– Provides structural strength at fence corners without welding
– Two-bolt clamp design allows quick and secure installation
– Ensures alignment and rigidity in fencing and guardrail systems

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Powder-coated (available in RAL colors)
– Stainless steel polished or brushed finish

Add-ons:
– Can be supplied with carriage bolts, nuts, and washers
– Compatible with line rail and end rail clamps
– Certification/load capacity test reports available on request
