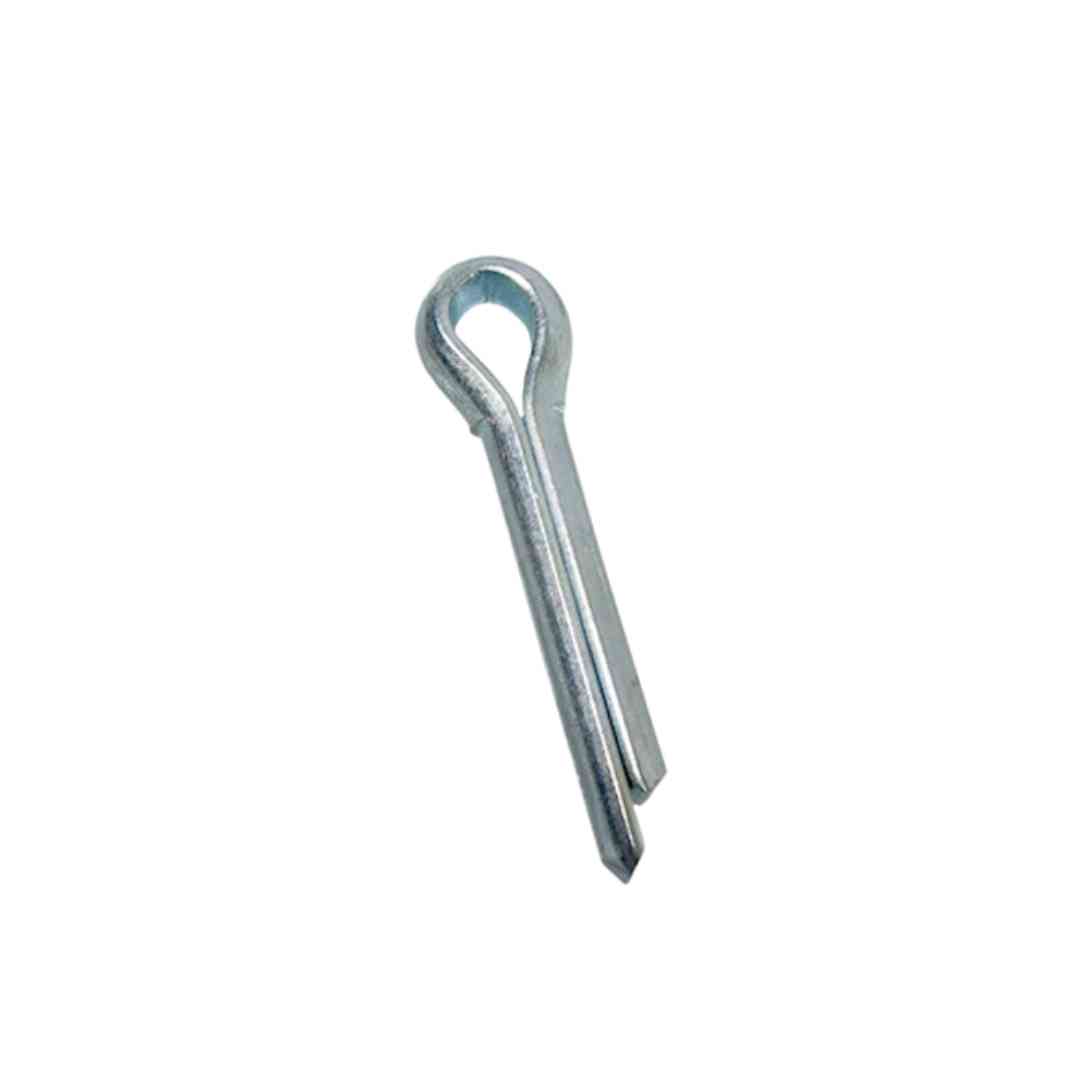

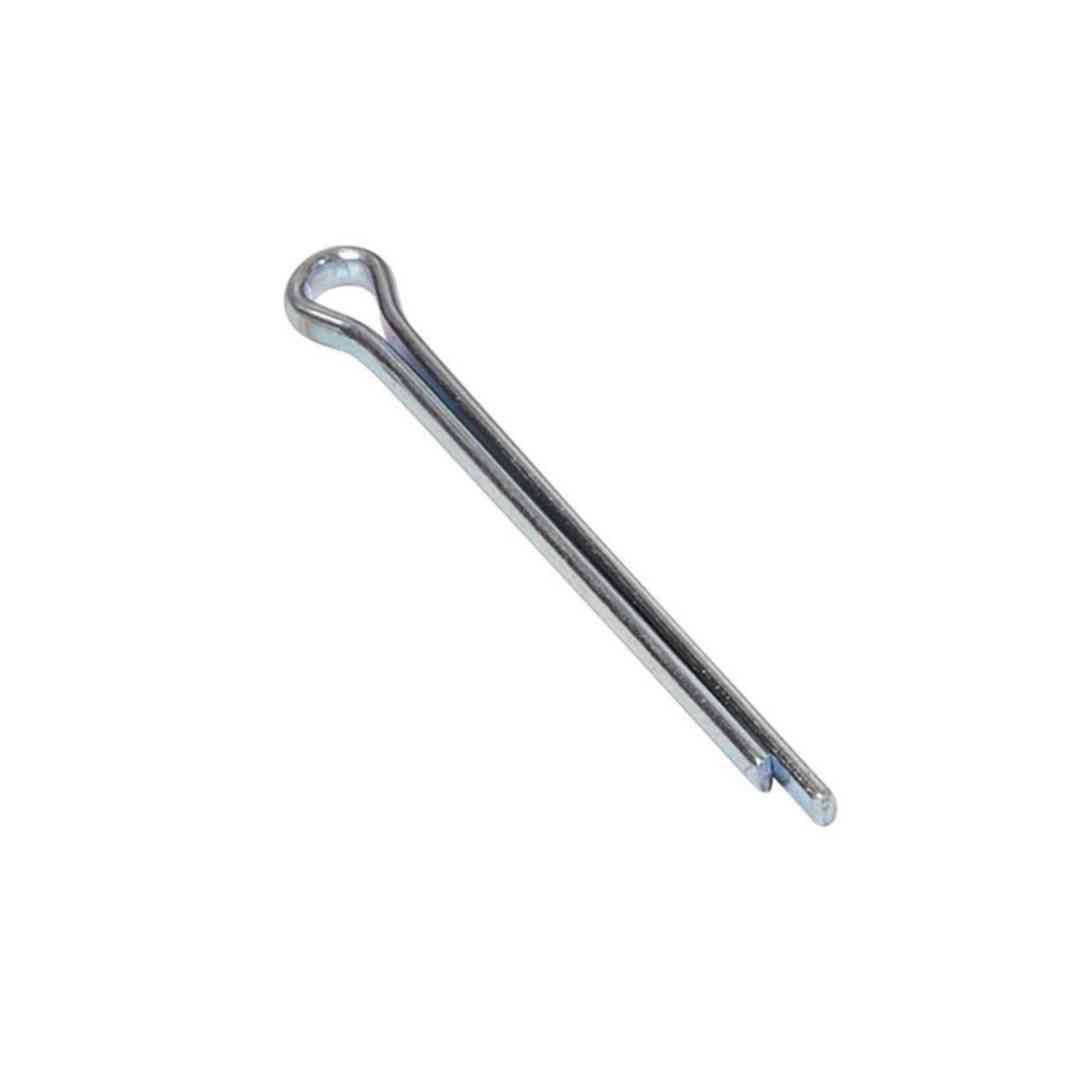

Cotter / Split Pin

Cotter Pins, also known as Split Pins, are simple mechanical fasteners used to secure bolts, shafts, clevis pins, and other assemblies. They are manufactured to ASTM, DIN, and ISO standards in carbon steel, stainless steel, or brass. Once inserted, the legs of the pin are bent apart to lock the component in place, providing a cost-effective and reliable fastening solution. Available in various sizes and materials with plated, galvanized, or stainless finishes, they ensure durability and corrosion resistance. They are widely used in automotive, agricultural, machinery, marine, and general engineering applications.

Add to quote

Description

Description

Premium Quality Cotter / Split Pin Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Cotter Pins and Split Pins in Dubai, UAE. The company specializes in fastening systems, locking components, and industrial hardware designed to prevent nuts, bolts, clevis pins, shafts, and other assemblies from loosening during operation. Cotter Pins, also known as Split Pins, are simple yet highly effective mechanical locking devices. They are inserted through pre-drilled holes in bolts, shafts, or clevis pins and then bent to secure the assembly in place. These pins provide a dependable and cost-effective solution for maintaining safety and preventing accidental disassembly. Manufactured using high-quality steel, stainless steel, and other corrosion-resistant materials, Cotter and Split Pins offer excellent durability, vibration resistance, and long service life in demanding environments.

Standards:
– ASTM A307 (low carbon steel for general fasteners)
– ASTM A276 (stainless steel bars and wires)
– DIN 94 (split pins – dimensions and requirements)
– ISO 1234 (split pins – general specifications)
– ISO 9001 (quality compliance reference)

Grades:
– Mild steel (standard duty)
– Spring steel (reinforced strength)
– Stainless steel A2 / A4 (AISI 304 / 316 for marine/corrosive use)
– Brass (for decorative and light-duty applications)

Material Options:
– Carbon steel (plain, zinc plated, galvanized)
– Stainless steel (polished finish for high corrosion resistance)
– Brass (non-corrosive, decorative)

Size Range:
– Diameter: 1.6mm to 16mm
– Length: 12mm to 200mm

Types:
– Standard split cotter pin (DIN 94 / ISO 1234)
– Extended leg cotter pin
– Double loop/spring cotter pin
– Brass decorative cotter pin

Properties:
– Inserted through pre-drilled holes in bolts, shafts, or pins for retention
– Legs are bent apart after insertion to secure the fastener
– Easy to install and remove without special tools
– Provides a low-cost, reliable locking mechanism

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Stainless steel polished finish
– Brass natural finish

Add-ons:
– Can be supplied pre-packed in assortments or bulk contractor packs
– Available with retaining washers if required
– Certification/test reports available on request
