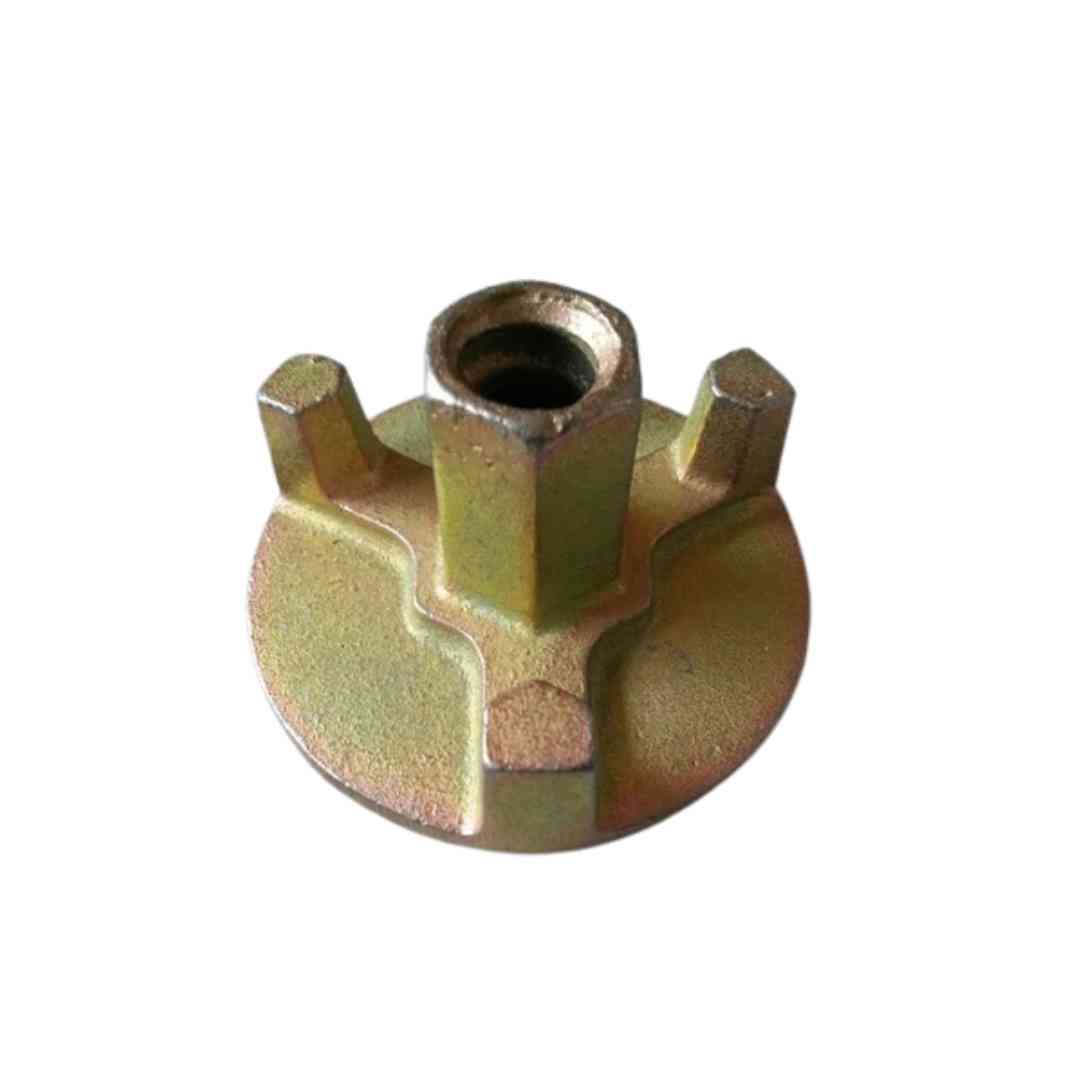

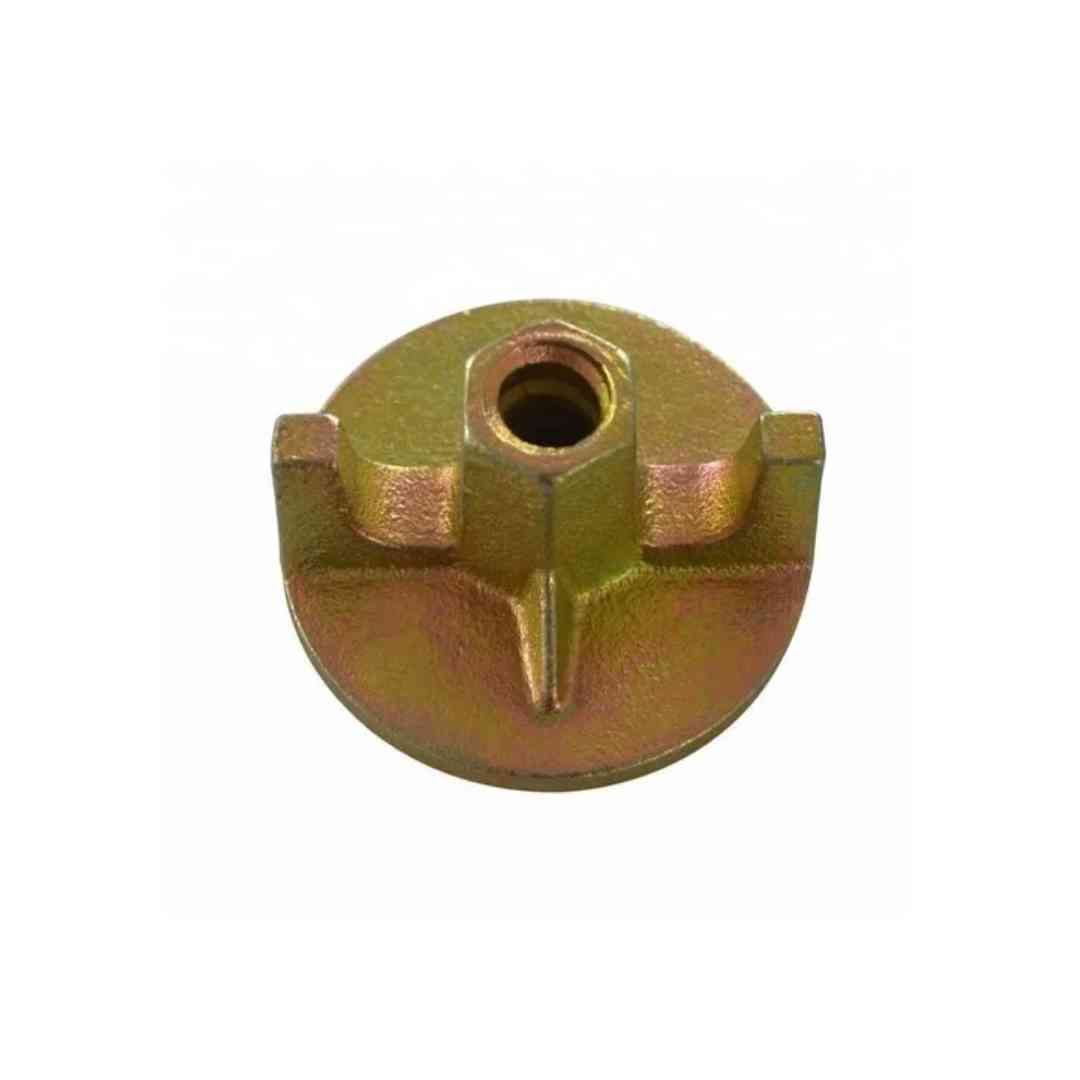

Anchor Nut 2 Leg or 3 Leg

Anchor Nuts with 2 or 3 legs are formwork accessories designed to anchor tie rods securely within reinforced concrete structures. The welded legs provide stability, load distribution, and resistance to rotation during tightening. Manufactured to ASTM and DIN standards, they are available in cast iron, ductile iron, forged steel, and stainless steel. These nuts are essential in concrete shuttering, bridge construction, and heavy structural applications. They ensure safe, reliable, and reusable fastening solutions for demanding construction projects.

Add to quote
Category: Tags: ,
Description

Premium Quality Anchor Nut 2 Leg and 3 Leg Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Anchor Nuts with 2 Leg and 3 Leg designs in Dubai, UAE. The company specializes in industrial fastening and structural anchoring solutions designed for construction projects, infrastructure developments, engineering works, heavy equipment installations, and industrial applications. Anchor Nuts are specially designed fastening components used to provide secure anchoring and stable load distribution in structural assemblies. The 2 Leg and 3 Leg configurations offer enhanced stability, strong grip performance, and reliable fastening support for demanding construction and industrial environments. Manufactured using high-grade materials and advanced production standards, Anchor Nuts provide excellent strength, corrosion resistance, durability, and reliable long-lasting performance for structural and industrial applications.

Standards:
– ASTM A563 (carbon and alloy steel nuts)
– ASTM A194 (heavy-duty/high-pressure nuts)
– ASTM A123 / A153 (hot-dip galvanizing for structural fittings)
– DIN 18216 (formwork accessories — anchor nuts)
– DIN 6334 (long nut reference for thread specifications)

Grades:
– ASTM Grades: A563 (A, B, C, DH), A194 (2H, 7, 8, 8M)
– Stainless Steel Grades: A2 / A4
– DIN / ISO Grades: 4, 5, 8, 10

Material Options:
– Cast iron
– Ductile iron
– Forged steel
– Stainless steel (A2 / A4)

Diameter Range (Tie Rod Compatibility): M12 to M48 (metric) / 1/2″ to 2″ (inch)

Thread Types:
– Metric coarse pitch (DIN 13 / ISO 261)
– UNC (Unified Coarse, ASTM)

Types:
– 2 Leg Anchor Nut (for standard reinforcement anchoring)
– 3 Leg Anchor Nut (for enhanced stability and load transfer)
– Heavy-duty anchor nut (reinforced body for larger tie rods)

Properties:
– Designed to transfer loads from tie rods into concrete via welded legs
– Legs ensure anchorage and prevent nut rotation in concrete
– Suitable for high load-bearing concrete formwork and shuttering systems
– Provides stable fixing and reusability in formwork assemblies

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Black oxide
– Stainless steel natural finish

Add-ons:

– Can be supplied with matching tie rods and washers
– Available with 2 or 3 welded legs depending on application
– Certification (MTC, load test reports) available on request
