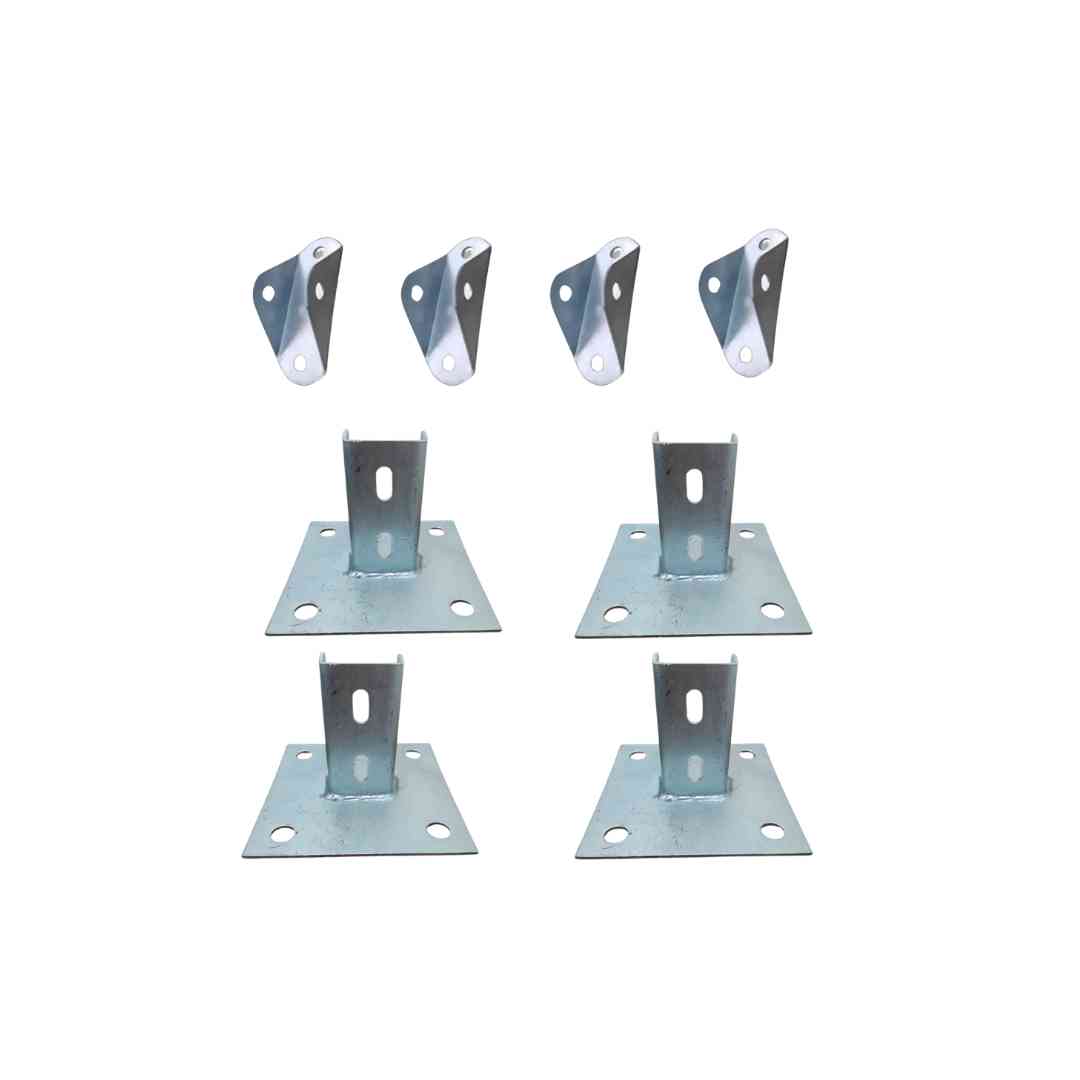

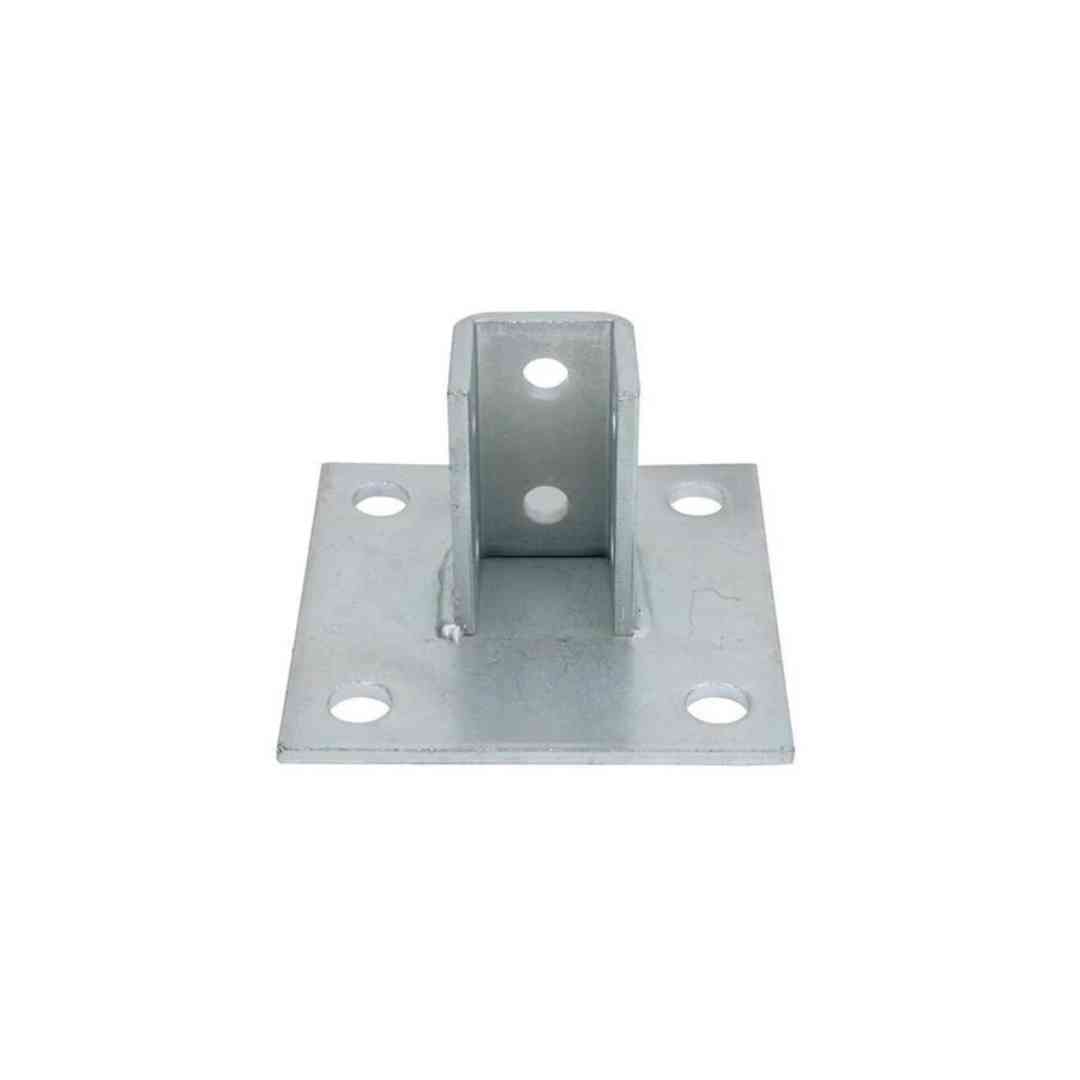

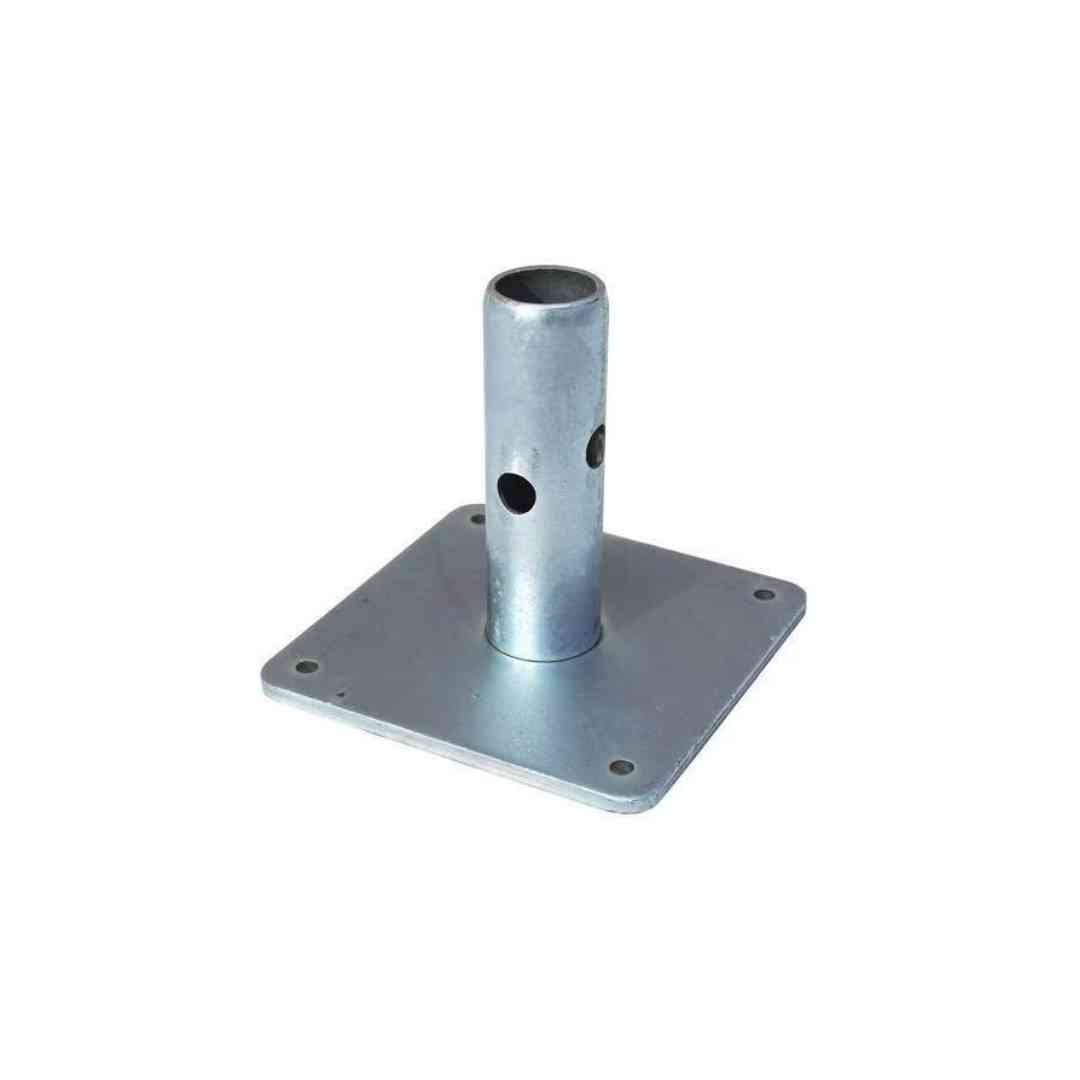

Base Plate

Base Plates are essential scaffolding and construction accessories designed to distribute loads evenly and provide a stable foundation for vertical members. They are manufactured to ASTM, DIN, and EN standards, ensuring strength, safety, and durability. Available in fixed, spigot, or adjustable screw jack designs, they are made from carbon steel, stainless steel, or cast steel. Hot-dip galvanized or stainless finishes provide corrosion resistance for long-term use in outdoor environments. They are widely used in scaffolding systems, construction formwork, and heavy-duty structural foundations.

Add to quote
Category: Tags: ,
Description

Premium Quality Base Plate Supplier in Dubai, UAE

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Base Plates in Dubai, UAE. The company specializes in industrial fastening and structural support solutions designed for construction projects, scaffolding systems, engineering works, infrastructure developments, and heavy-duty industrial applications. Base Plates are specially designed support components used to provide stable load distribution and secure structural support for scaffolding systems, columns, machinery, and construction assemblies. These plates help improve stability, balance, and safety in demanding industrial and construction environments. Manufactured using high-grade materials and advanced production standards, Base Plates provide excellent strength, corrosion resistance, durability, and reliable long-lasting performance for structural and industrial applications.


Standards:
– ASTM A36 (carbon steel plate for structural use)
– ASTM A572 (high-strength low-alloy plate)
– ASTM A123 / A153 (hot-dip galvanizing standards)
– DIN EN 74 (scaffolding fittings reference)
– DIN EN 12811 (scaffolding performance requirements)

Grades:
– Carbon steel grades: ASTM A36, A572
– Stainless steel grades: A2 / A4 (for corrosive environments)
– DIN / ISO Grades: S235, S275, S355

Material Options:
– Carbon steel (plain or galvanized)
– Stainless steel (for marine/harsh conditions)
– Cast steel (heavy-duty applications)

Dimensions:
– Thickness: 5mm to 12mm
– Plate size: 120 × 120mm up to 150 × 150mm (standard)
– Custom dimensions available on request

Types:
– Fixed base plate (plain flat plate)
– Base plate with welded spigot (to hold scaffold tubes)
– Adjustable base plate (with screw jack for leveling)
– Heavy-duty reinforced base plate

Properties:
– Provides a stable load distribution surface for scaffolding and structural supports
– Prevents sinking into soil or damage to flooring
– Enhances safety and load-bearing capacity of scaffolding systems
– Available in fixed or adjustable designs

Coating Options:
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Zinc electroplated
– Painted/epoxy-coated (custom)
– Stainless steel natural finish

Add-ons:
– Can be supplied with holes for anchoring bolts
– Available with spigot or jack thread as per system requirements
– Certification/load capacity test reports available on request
