Stuck Up Pin for Insulation

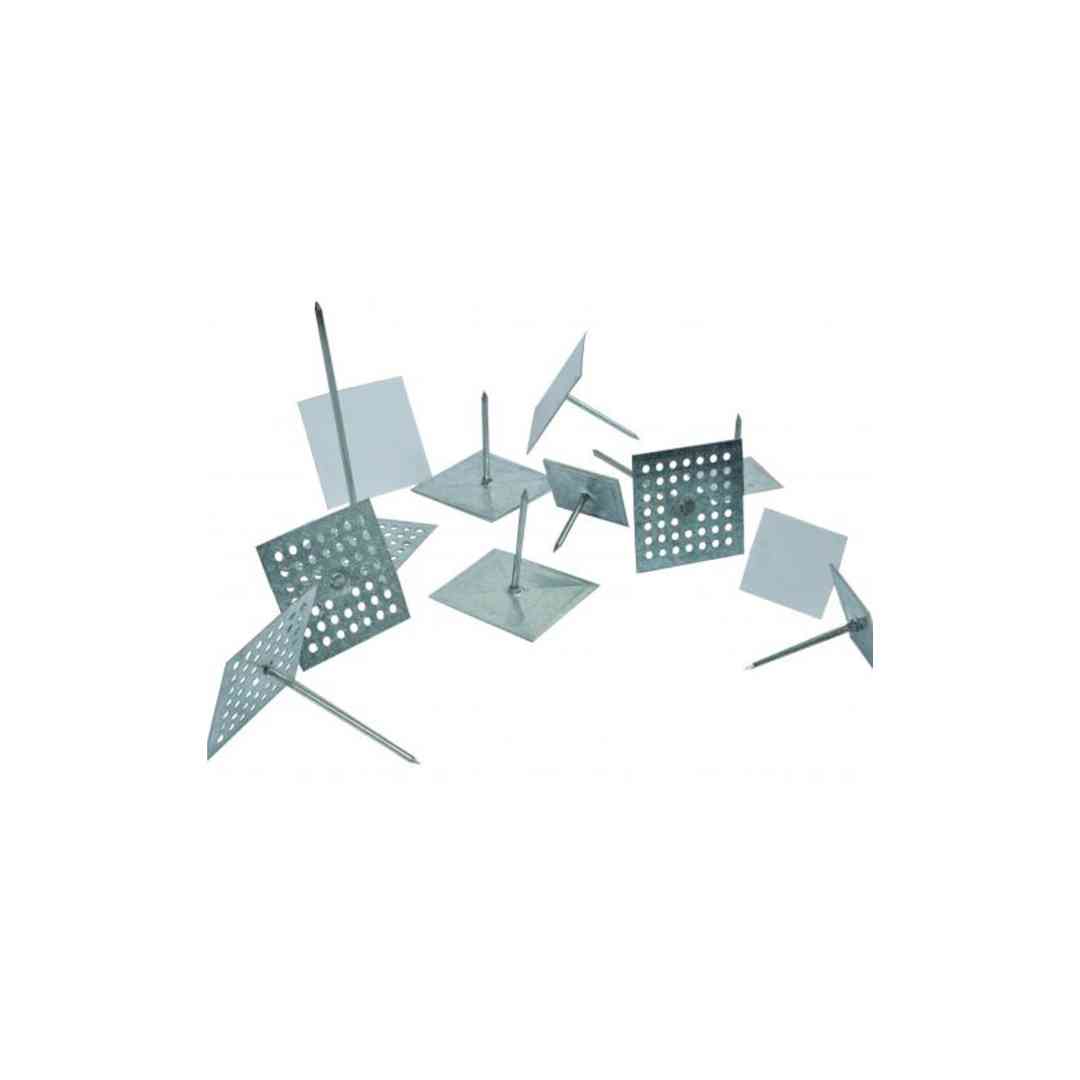

Stuck-Up Pins for Insulation are fastening systems used to attach insulation materials such as boards, blankets, and foils to metal, concrete, or duct surfaces. They are manufactured to ASTM, DIN, and ISO standards in mild steel, stainless steel, or aluminum. The pins are mounted on adhesive or welded base plates, allowing insulation to be fixed with locking washers or clips. Available in different sizes, coatings, and materials, they provide secure and durable insulation support. They are widely used in HVAC systems, ductwork, building insulation, and industrial thermal/acoustic insulation applications.

Add to quote
Category: Tags: ,
Description

Premium Quality Stuck Up Pin for Insulation Supplier in Dubai, UAE

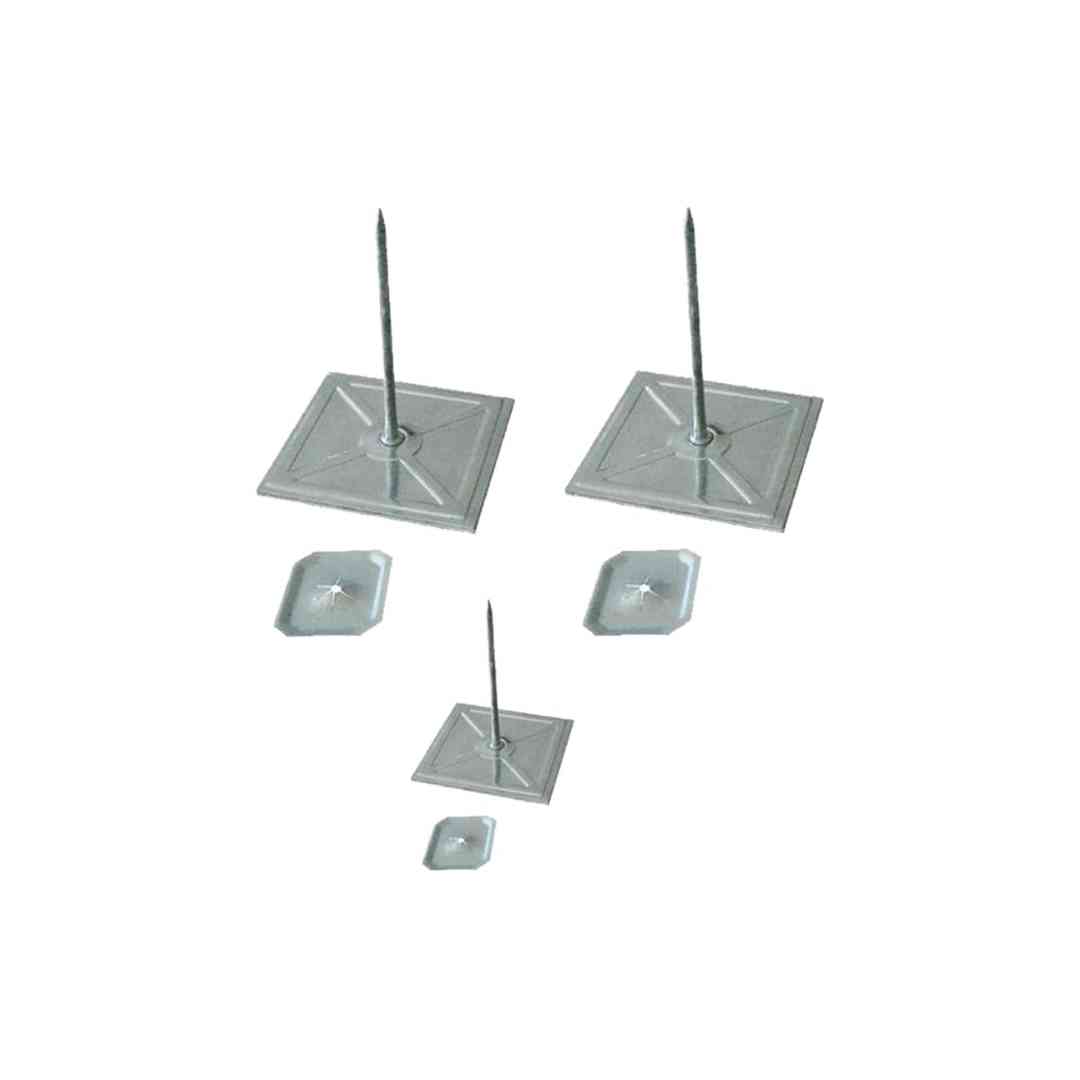

Unifastener Industries LLC is a reliable supplier and manufacturer of premium-quality Stuck Up Pins for Insulation in Dubai, UAE. The company specializes in insulation fastening systems, industrial hardware, and HVAC accessories designed for secure installation of thermal and acoustic insulation materials. Stuck Up Pins, also known as insulation fixing pins, are designed to securely hold insulation materials onto metal surfaces, ductwork, equipment casings, tanks, and panels. These pins are commonly supplied with a self-adhesive base or weldable base and are used together with locking washers to ensure insulation remains firmly in position. Manufactured using high-quality steel, stainless steel, or galvanized materials, Stuck Up Pins provide excellent holding strength, corrosion resistance, and long-term durability in demanding industrial environments.

Standards:
– ASTM A1008 / A1010 (cold-rolled carbon steel for pins)
– ASTM A123 / A153 (hot-dip galvanizing standards)
– DIN 267 (fastener specifications reference)
– DIN EN ISO 1461 (zinc coating for steel components)
– ISO 9001 (quality compliance reference)

Grades:
– Low carbon steel (standard insulation pins)
– Stainless steel AISI 304 / 316 (corrosion-resistant applications)
– Galvanized steel (cost-effective general use)

Material Options:
– Mild steel (zinc plated, galvanized, or copper coated)
– Stainless steel (A2 / A4 for high durability)
– Aluminum (lightweight insulation systems)

Size Range:
– Pin diameter: 2mm to 5mm
– Pin length: 20mm to 200mm (based on insulation thickness)
– Base plate: 25mm × 25mm, 35mm × 35mm, or custom sizes

Types:
– Self-adhesive base insulation pin
– Welded base insulation pin
– Perforated base plate pin (for better bonding with adhesives)
– Stainless steel stuck-up pin

Properties:
– Designed to fix insulation boards, blankets, or foils to walls, ducts, or ceilings
– Base plate provides firm adhesion to substrates with glue or weld
– Locking washer or speed clip secures insulation over the pin
– Available in adhesive, weld-on, or perforated plate versions

Coating Options:
– Zinc electroplated
– Hot-dip galvanized (ASTM A153 / DIN EN ISO 1461)
– Copper coated finish
– Stainless steel natural finish

Add-ons:
– Supplied with self-locking washers/speed clips
– Available in contractor bulk packs
– Certification/pull-out test reports available on request
